The Self-Service Kiosk.
Unattended Commerce, Perfected.
Order bottlenecks are shattered. Labor costs are slashed. A frictionless, high-throughput self-service experience is engineered by our interactive nodes.
Engineered for Zero-Downtime Public Use.
Consumer tablets inside metal boxes are rejected. True industrial modularity is deployed for relentless high-traffic environments.
Paper Roll Swap
< 15 Seconds

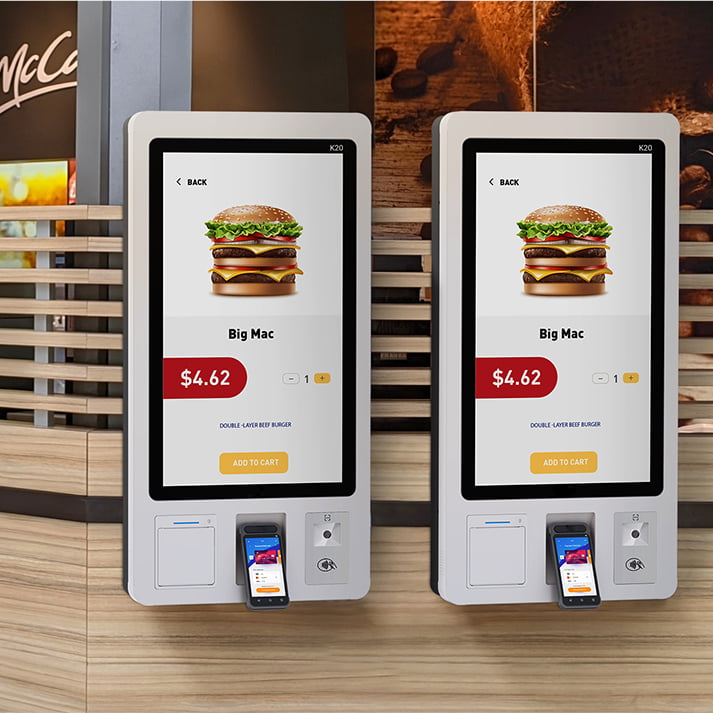

Front-Access Modular Architecture
Maintenance nightmares are eradicated. A front-opening chassis design is deployed. Thermal printers, 2D barcode scanners, and computing nodes are highly modularized. Paper rolls are replaced in seconds, and faulty components are swapped instantly without dismantling the entire machine.
Vandal-Resistant Optic Displays
Public wear and tear is conquered. 7H tempered glass and anti-glare (AG) coatings are utilized. Brilliant 10-point capacitive touch responsiveness is maintained even in high-ambient light environments. Accidental impacts and continuous public tapping are endured effortlessly.
Agnostic Payment Integration
Payment barriers are removed. Universal, adjustable mounting brackets are engineered specifically for global payment terminals (Ingenico, Verifone, PAX). Cables are routed internally for a seamless, tamper-proof aesthetic.
Interactive Nodes for Every Floorplan.
From sprawling supermarket checkout zones to compact coffee shop counters, space efficiency is maximized.

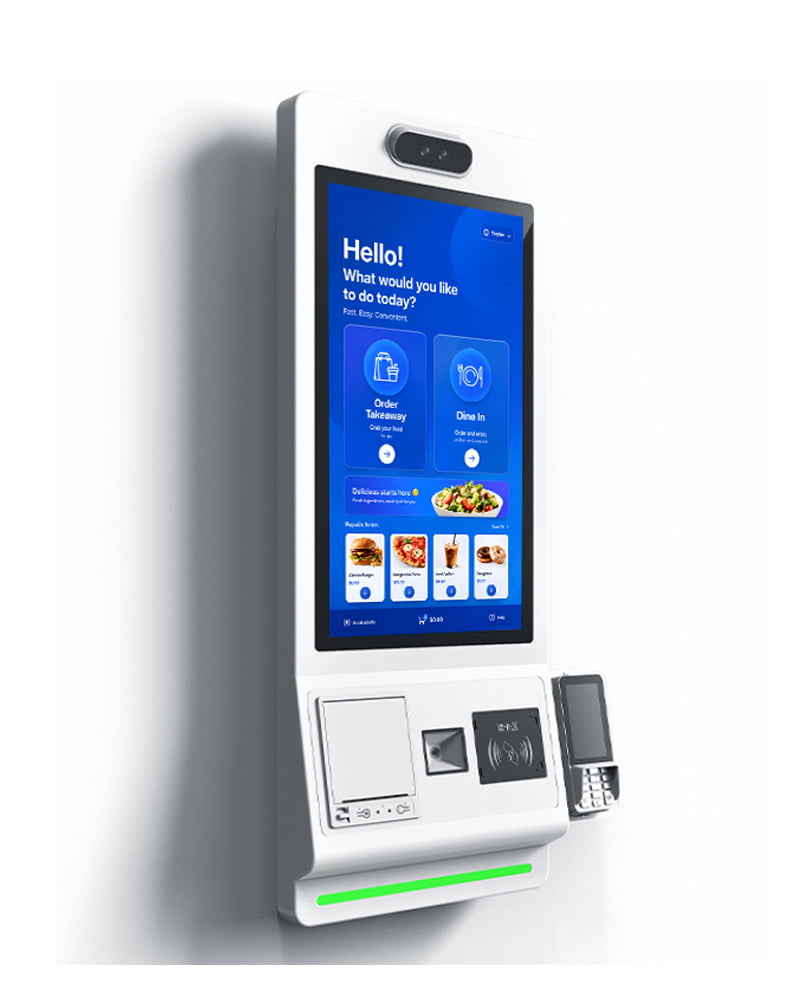

The QSR Ordering Node
24" / 27" / 32" Interactive
Appetites are accelerated. The flagship large-format kiosk engineered for fast-food chains. High-definition digital menus and intuitive upselling workflows are driven perfectly.
The Retail SCO Kiosk
15.6" / 21.5" Self-Checkout
Checkout lines are destroyed. A complete Self-Checkout (SCO) ecosystem equipped with large-window barcode scanners, receipt printers, and optional security weighing scales.

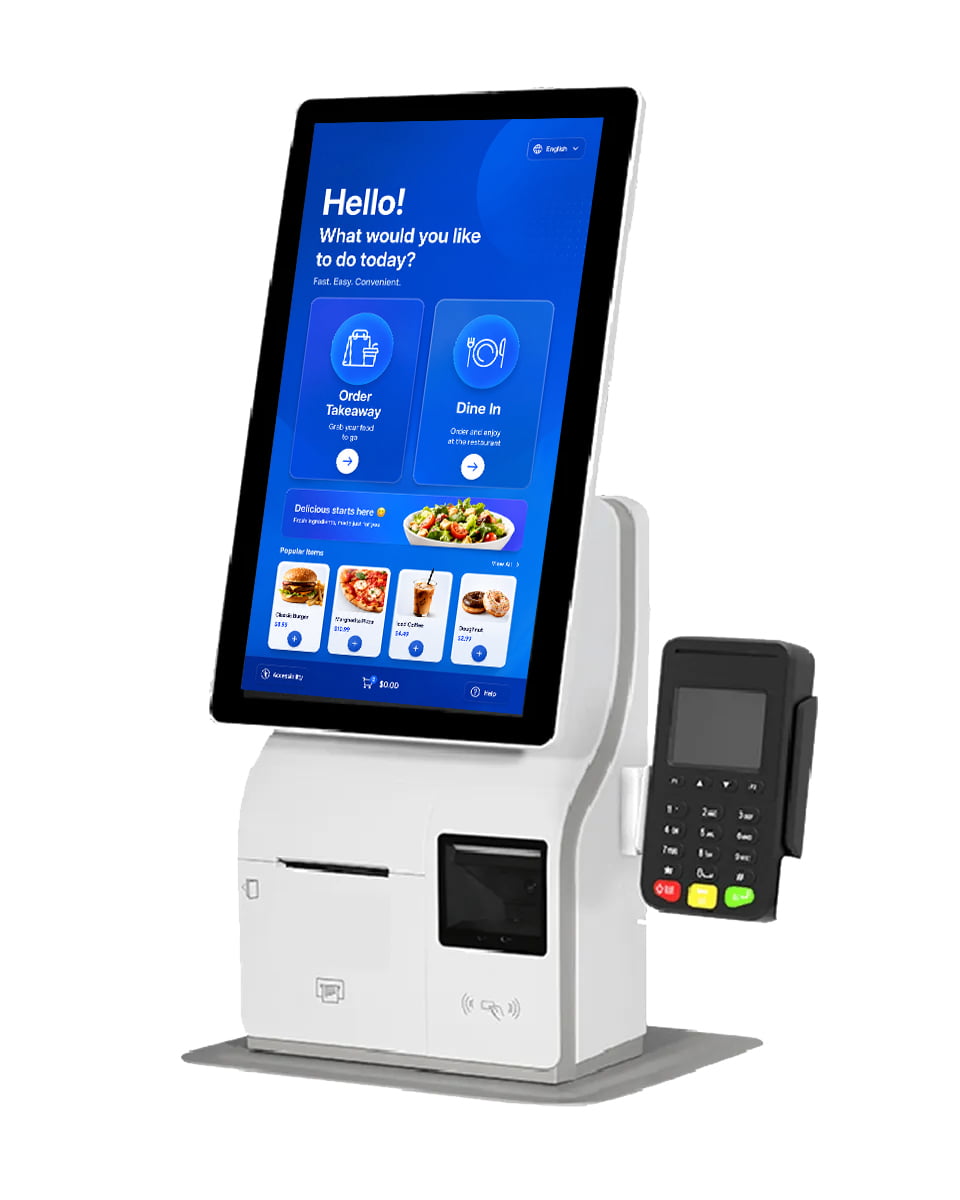

The Compact Desktop
15.6" Countertop Size
Counter space is optimized. A miniaturized self-service footprint designed for crowded ticketing booths, independent coffee shops, and hotel self-check-in counters.
Industrial Kiosk Specifications.
| Hardware Module | Engineering Specification |
|---|---|
| Screen Form Factors | 15.6" / 21.5" / 24" / 27" / 32" (FHD 1920x1080 resolution standard) |
| Touch Technology | 10-Point Projected Capacitive Touch (PCAP) with 7H Tempered Glass |
| Core Processing (Android) | RK3288 / RK3399 / RK3568 (Scalable up to 8GB RAM / 128GB ROM) |
| Core Processing (Windows) | Intel® Celeron® J4125 / Core™ i3 / i5 / i7 (Industrial Fanless Architecture) |
| Integrated Printing | 80mm Heavy-Duty Thermal Printer (Auto-cutter, 250mm/s speed, Big roll capacity) |
| Integrated Scanning | 2D/QR Large-Window Omni-directional Scanner (NFC reading optional) |
| Vision & Telemetry | 3D Binocular Camera (Optional) + Gigabit LAN, Dual-Band Wi-Fi, 4G LTE |
| Mounting Configurations | Floor-standing pedestal, Wall-mount VESA bracket, Desktop stand |
Transforming Public Interactions.

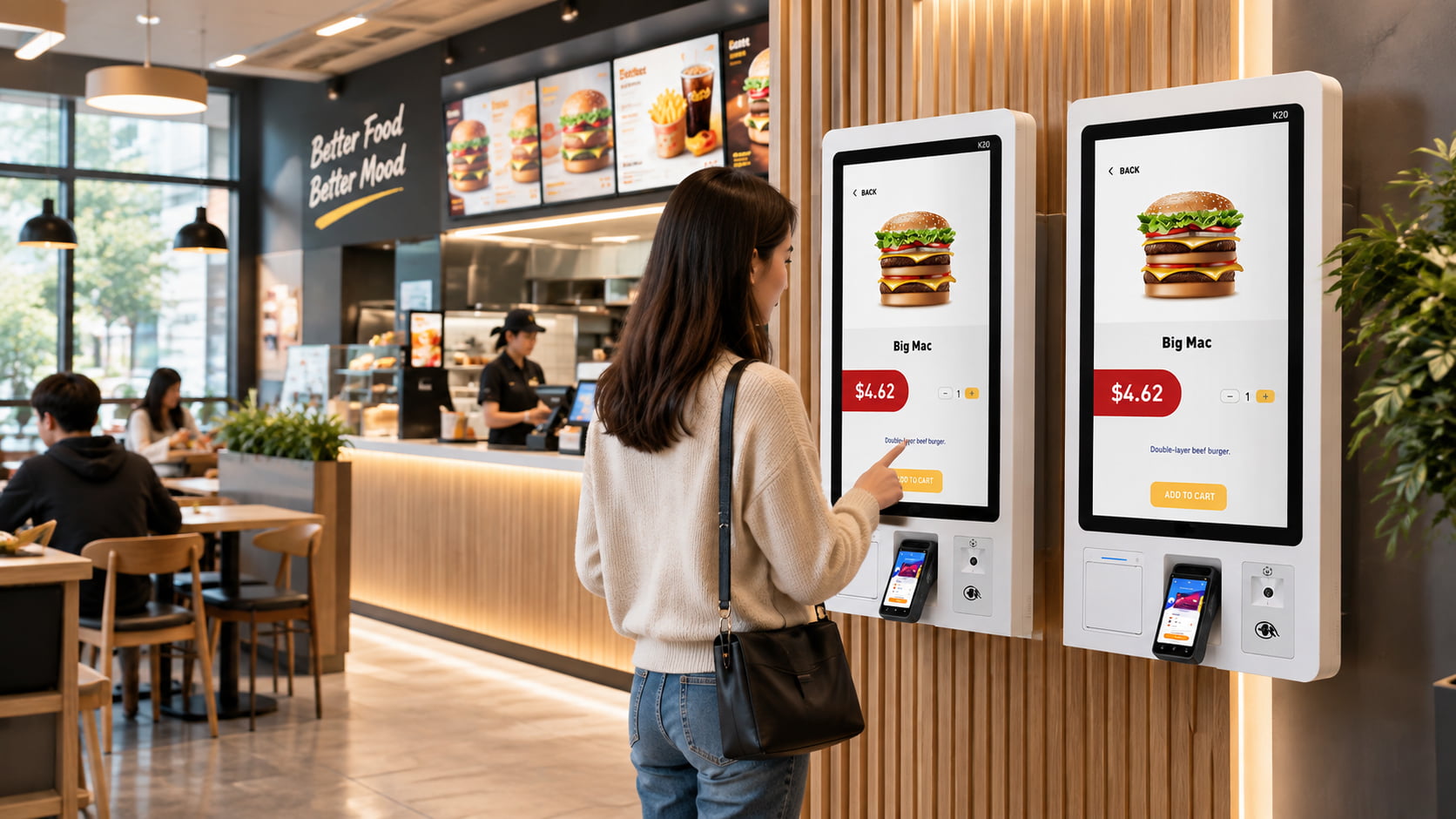

Quick Service & Cloud Kitchens
Order accuracy is guaranteed. Complex customizations and meal combos are processed by the customer directly, increasing average ticket sizes by up to 20% through automated upselling.
Retail Supermarkets & Convenience
Throughput is multiplied. Multiple Self-Checkout (SCO) stations are managed by a single employee. The burden of low-value scanning tasks is shifted seamlessly to the consumer.
Ticketing, Hospitals & Hospitality
Administrative friction is dissolved. Patient check-ins, movie ticket dispensing, and hotel room key issuing are completely automated securely, 24 hours a day.
Architectural Customization (OEM).
Off-the-shelf limits are bypassed. A rigorous OEM/ODM program is executed for global ISVs and franchise chains. From specific RAL color matching of the sheet metal chassis and laser-cut corporate logos, to tailored peripheral integration (RFID, passport readers, cash recyclers) and custom SDK compilation. The hardware becomes the definitive physical manifestation of your brand.
Consult Engineering TeamDeployment & Technical Inquiries
Q: Our software needs to trigger the receipt printer and scanner. Do you provide the API/SDK?
A: Absolutely. Hardware abstraction barriers are removed. Comprehensive SDKs and peripheral APIs for both Android and Windows environments are provided by our engineering team. Your web-based or native application can communicate flawlessly with the internal modules.
Q: Can the kiosk be shipped disassembled to save on international freight?
A: Yes. Logistics efficiency is optimized. For floor-standing models, the base pedestal and the main screen unit are packaged separately in heavy-duty flight cases or reinforced cartons. On-site assembly is completed by local technicians in under 15 minutes.
Q: How do we mount our specific credit card terminals (e.g., Pax, Ingenico)?
A: Compatibility is guaranteed. Blank universal mounting plates are provided. If your payment terminal model is specified during the order process, a customized metal bracket is engineered specifically for that device, ensuring a secure, tamper-proof fit.
Q: What happens if the internal receipt printer jams during a rush hour?
A: Downtime is minimized strictly. The kiosk is designed with a secure, key-locked front access panel. Floor staff can open the panel, clear the jam, or replace the large paper roll in seconds without requiring an IT technician or shutting down the machine.
Automate Your Checkout Infrastructure Today.
Global franchise chains and ISVs are equipped by TillNode with uncompromising unattended terminals. Request volume pricing or discuss your specific hardware prototype needs with our factory engineers.
