Commercial
All-in-One PCs.
Elegance Meets Endurance.
We engineer the touch-panel computing nodes here. We combine sleek aesthetics with industrial-grade internal components. Whether you deploy it as a high-end POS terminal or a self-service kiosk, it delivers absolute reliability within a space-saving footprint.
Architecture Designed for Business.
We eliminate consumer plastics. We apply industrial engineering to elegant chassis.
Cable-Free Aesthetic
We eliminate cluttered counters. We route all I/O ports and power cables discreetly through the optimized stand architecture, ensuring a clean, premium checkout experience.
True-Flat Bezel-Free Display
Our zero-bezel design prevents dust and debris accumulation. Highly responsive capacitive touch screens guarantee frictionless user interactions.
Cross-Platform Versatility
We accommodate your software architecture. We offer core hardware configurations with optimized support for both Windows and Android operating systems.
A Display Node for Every Scenario.
AIO-X Series
The AIO-X maximizes counter space without sacrificing processing power. Ideal for modern cafes and specialty retail stores.
AIO-Y Series
We deliver a revolutionary hardware architecture across ten exact display sizes, from a compact 10.1" to a massive 27". Driven by 12th Gen Intel® Core™ processors, the AIO-Y Series unifies your entire industrial infrastructure under one immensely powerful platform.
Large Format AIO-Z Series
Our team engineers colossal digital canvases, spanning from a versatile 32 inches to an unprecedented 110 inches. We deliver the interactive node. Whether you configure a high-end corporate boardroom or deploy self-service transaction kiosks, we realize your vision here.
Uncompromised Connectivity.

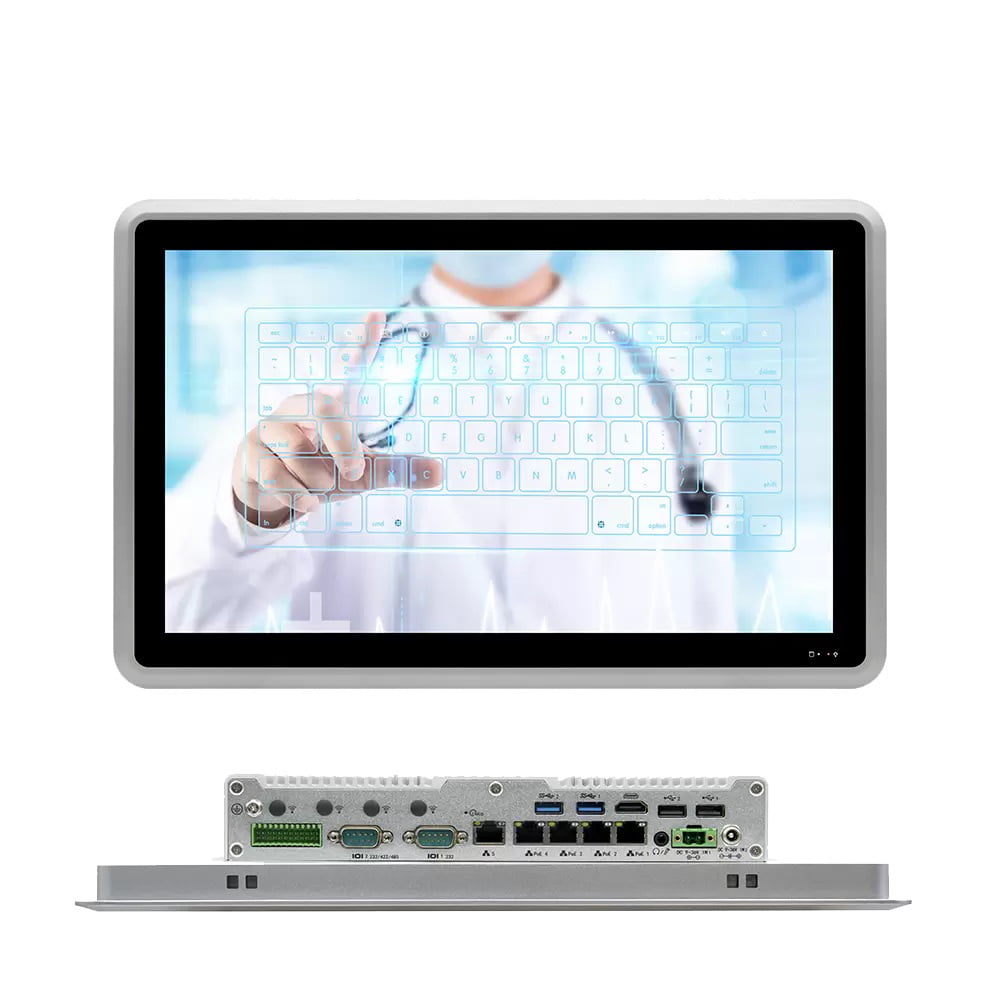

Sleek exteriors conceal industrial strength. A fanless architecture ensures silent operation. We integrate a rich array of COM, USB, and LAN ports. The device connects legacy peripherals and modern IoT devices. Tool-less access panels let IT teams perform rapid maintenance.
Four AIO Series, One Engineering Platform.
We split the all-in-one PC range into four series so you can match the display architecture, computing module and connectivity to the job instead of over-specifying them.
AIO-X Series
The flagship industrial panel PC. 12th Gen Intel Core processing, DDR5 memory and a 9V–36V wide-range input, in ten screen sizes from 10.1" to 27". Built for deployment in extremes rather than an office.
AIO-Y Series
The standardized HMI platform. Fanless, 24/7 rated and deliberately rich in legacy ports, so existing scales, scanners, PLCs and serial peripherals connect without an adapter chain behind the panel.

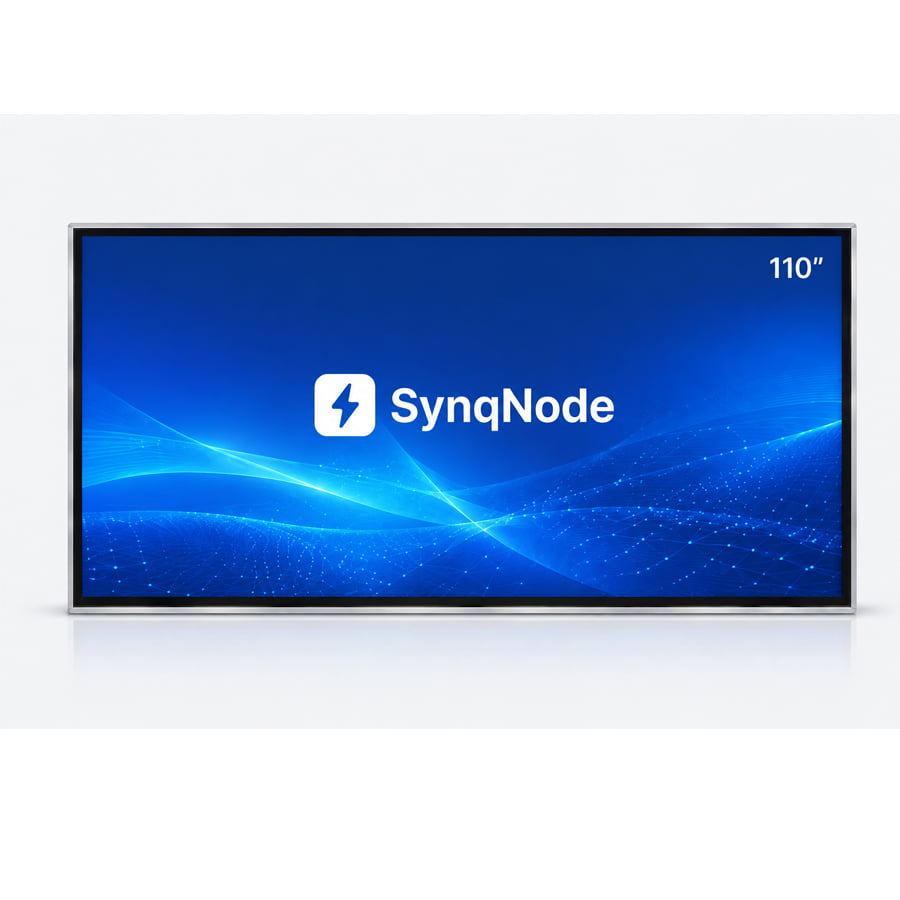

AIO-Z Series
The large-format interactive flat panel. 4K clarity on a modular OPS computing module, with an anti-vandal surface for public and semi-public environments where the screen is not behind a counter.

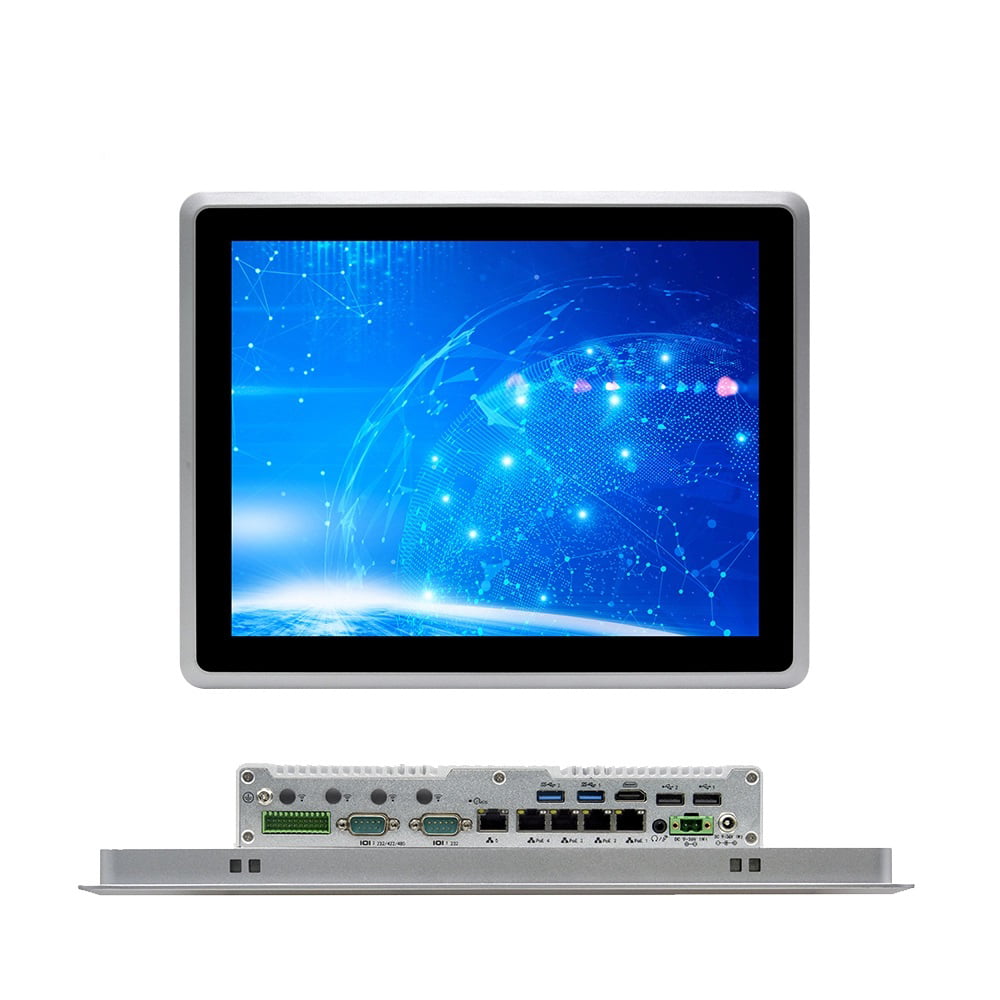

AIO-157Y POE Panel PC
A 15" edge computing node with five Intel Gigabit LAN ports, four of which deliver Power over Ethernet. The same cable that carries camera and sensor data powers them, so the machine needs no external adapters.
Industrial Panel PC Specifications.
The engineering baseline shared across the AIO range. Core architecture is common to every screen size; we configure display and I/O per project.
Processing and Memory
12th Gen Intel Core i3, i5 and i7 with dual DDR5 SDRAM slots and up to 64GB. Storage runs on dual M.2 2280 slots accepting NVMe or SATA SSDs.
Hardware Security
We fit hardware TPM 2.0 encryption as standard, with Intel vPro Essentials support on qualifying configurations for fleet-level remote management.
Networking and Wake
Dual Intel controllers at 2.5GbE and 1GbE, both supporting Wake-on-LAN and PXE boot, which lets you reimage unattended sites remotely.
Serial and USB Ports
Two software-selectable RS232/422/485 ports with automatic flow control, expandable to six COM ports, plus USB 3.2, Type-C and HDMI output.
Power Supply and Protection
A 9V to 36V wide-range DC input tolerates unstable industrial supplies, with over-voltage, over-current and reverse-polarity protection built in rather than added externally.
Operating Environment
Rated from −20°C to +70°C with anti-static immunity of 8KV–15KV and a fanless design, behind an IP66-grade anodised aluminum front panel.
Ten Screen Sizes
Compact nodes for machine-mounted HMI, standard panels for counters and kiosks, and large dashboards where the display is the interface.
Power over Ethernet
On the AIO-157Y, four of five Intel I210AT Gigabit ports deliver 15W POE, so the data cable powers IP cameras and IoT sensors and the mains adapter count around the machine drops.
Mounting and Integration
You can specify the same panel as a wall-mounted HMI, a mobile floor-standing unit or an embedded node inside a custom kiosk enclosure, depending on how the site wants the interface presented.
Display Technology, Touch and Optical Bonding.
On a panel PC the display is not a component, it is the interface. Touch response, glare and fogging decide whether staff and customers actually use the terminal.
10-Point Projected Capacitive Touch
PCAP multi-touch gives immediate, accurate response across every screen size. True-flat construction means no bezel recess where crumbs, dust and cleaning fluid collect.
Anti-Glare Coating
An anti-glare (AG) treatment is available for installations facing shopfront glass, skylights or direct sunlight, where a polished panel becomes a mirror instead of a display.
Optical Bonding
We offer it as an option for severe glare or high-humidity environments. Eliminating the air gap between glass and LCD minimises internal reflection, prevents fogging and makes the assembly physically more durable.
4K Clarity on Large Formats
On the AIO-Z series the large-format panel runs at 4K resolution, which is what makes detailed dashboards and multi-panel layouts legible at standing distance.
Modular OPS Computing
A modular OPS computing module lets you upgrade or replace the processing engine without scrapping the display panel, which extends the service life of a large installed screen.
Instant Response, Vandal-Proof Durability
We specify public-facing panels for impact tolerance and continuous contact. You cannot treat a screen tapped thousands of times a day as consumer glass.
Scale Your Deployments with TillNode.
We customize hardware solutions to match your exact project requirements. From barebone systems to fully assembled, OS-ready terminals, our global supply chain is ready to deliver.
