Interactive Information Kiosks.
Navigation is Digitized.
Visitors are guided effortlessly. Static directories are replaced. A 24/7 digital concierge is engineered seamlessly for smart buildings, airports, and premium retail malls.
Engineered for Public Spaces.
Hardware designed to withstand the physical and environmental demands of high-traffic facilities.
Clarity is Guaranteed
Ambient light is defied. High-brightness, anti-glare (AG) displays are utilized to ensure perfect visibility in sunlit atriums or semi-outdoor environments.
Vandalism is Prevented
Unattended environments are conquered. Heavy-duty steel enclosures and 7H tempered safety glass are integrated to protect internal components flawlessly.
Aesthetics are Respected
Architectural harmony is achieved. Sleek, ultra-slim profiles are manufactured to complement modern interior designs, rather than disrupt them.
Form Factors for Every Environment.
Standard architectures are presented below. Every chassis is engineered to be fully customized for your specific system integration project.

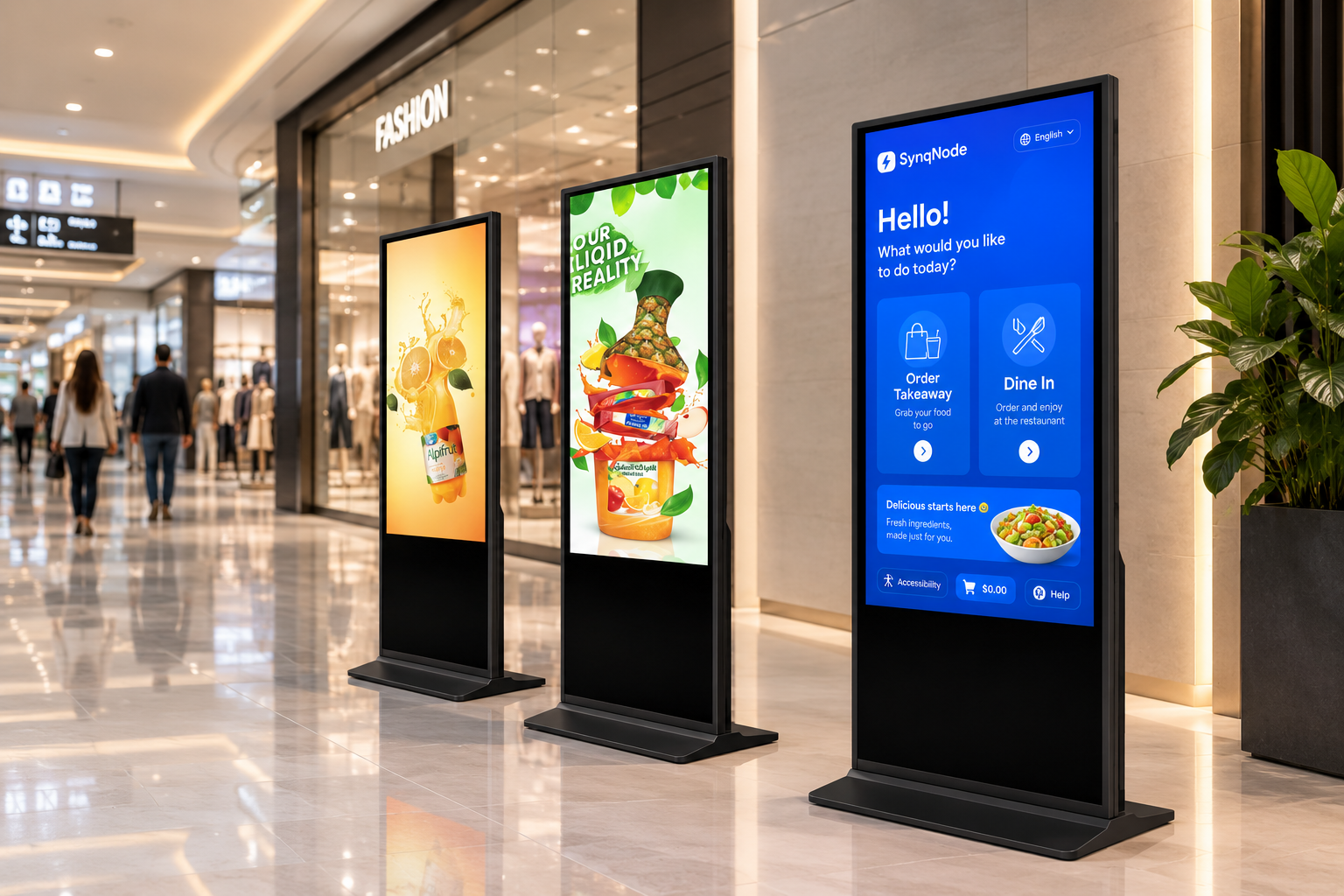

The Freestanding Lobby Node
Grand entrances and main atriums are dominated effortlessly. Large-format, freestanding structures are deployed for interactive 3D mapping, digital directory services, and centralized facility announcements. Supreme stability is ensured by a heavy-gauge steel base.
- Display Sizes: 43", 49", and 55" panels are accommodated.
- Dual-Sided Option: Back-to-back screens are supported to maximize traffic capture.
- Concealed Cabling: Power and network lines are routed invisibly through the floor plate.

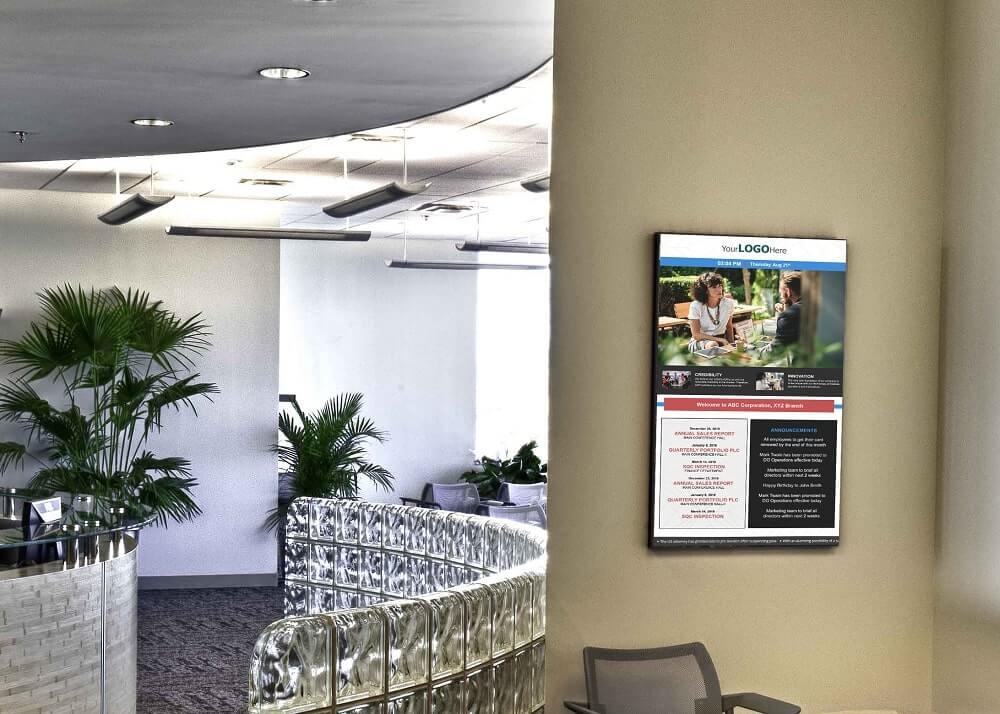

The ADA-Compliant Wall Node
High-traffic hallways and elevator banks are optimized safely. Ultra-slim profiles are mounted securely to deliver crucial wayfinding information without obstructing pedestrian flow or violating architectural safety codes.
- ADA Compliance: Sub-4-inch depth profile is maintained flawlessly.
- Front Maintenance: A hinged front door with gas struts is integrated for rapid IT service.
- Orientation Flexibility: Portrait or landscape mounting is supported based on software needs.

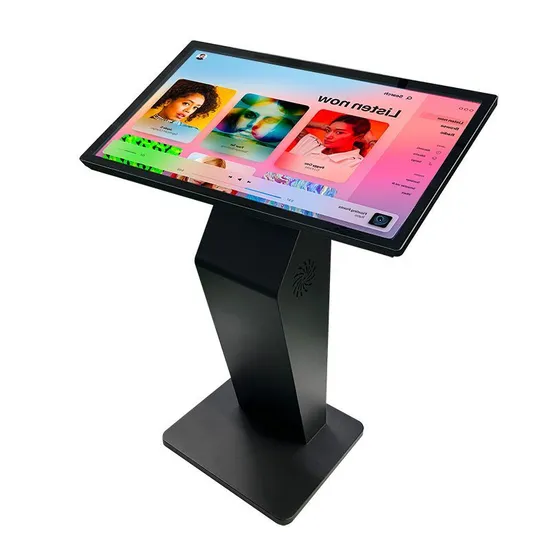

The Ergonomic Podium Console
Deep, extended interactions are facilitated comfortably. Ergonomic, tilted touch interfaces are utilized heavily in museums, libraries, and transit hubs where detailed reading, complex ticket purchasing, or intense directory searching is required.
- Viewing Ergonomics: A 30-degree tilted angle is optimized for prolonged, comfortable use.
- Peripheral Integration: Cut-outs for RFID readers, scanners, and ticket printers are engineered easily.
- Inclusive Access: Wheelchair accessibility is prioritized in the structural chassis design.
The Power Behind
the Pixels.
Heavy 3D wayfinding applications are processed effortlessly. High-performance industrial computing nodes are housed within. Continuous 24/7 operation is maintained by advanced thermal management systems. Total control is handed to your system administrators via SynqCloud remote management.

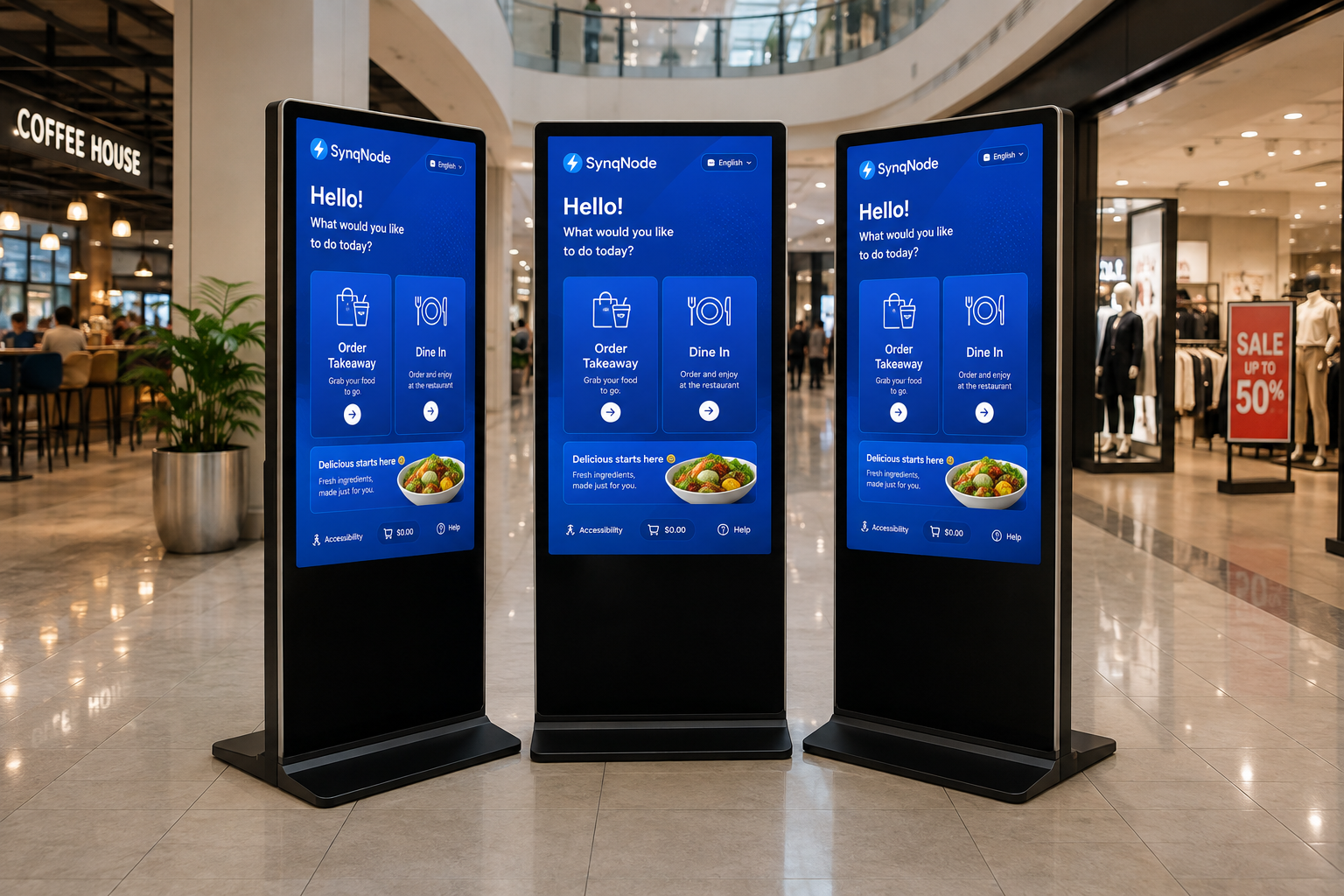

Intuitive Wayfinding.
Continuous Engagement.
Customer frustration is eliminated. Large, complex facilities are navigated easily by guests using 3D interactive maps. Furthermore, digital signage and promotional media are centralized. Visitor satisfaction is elevated, and advertising revenue is generated simultaneously by our interactive kiosks.
3D Interactive Maps
Effortless navigation through complex multi-floor environments.
Advertising Revenue
Transform a cost center into a profit center with targeted digital ads.

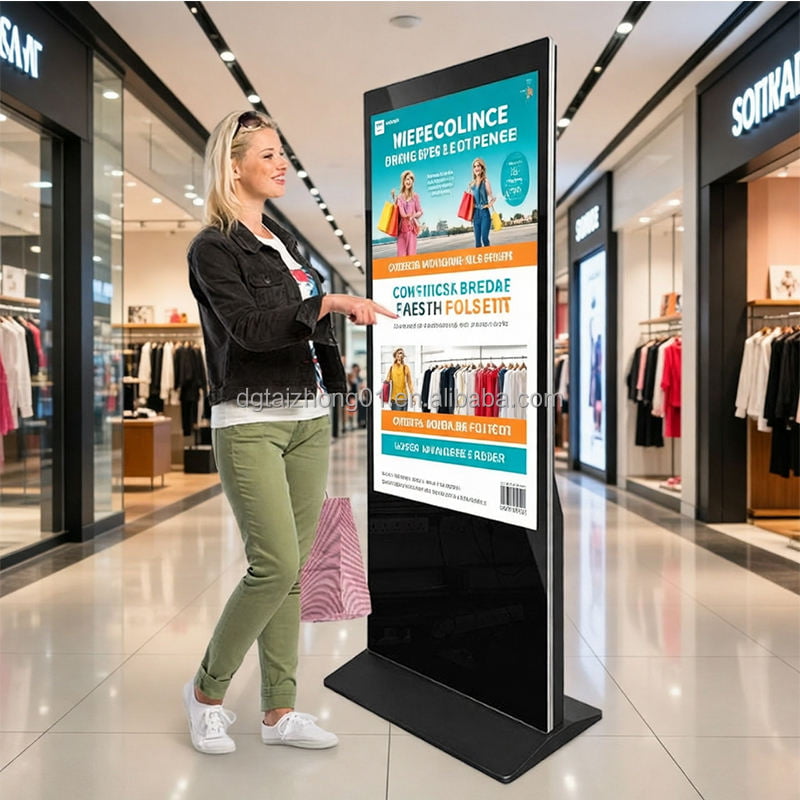

Engineered for the Public Eye.
Industrial-grade components designed to withstand 24/7 public usage while delivering a premium interactive experience.
1 Flawless PCAP Touch
Zero-bezel, projected capacitive (PCAP) touch technology is integrated. Instant, smartphone-like responsiveness is guaranteed. Multi-touch interactions are executed flawlessly by every user.
2 Vibrant Visual Clarity
Commercial-grade IPS panels are utilized. Annoying light glare is minimized effectively. Your interactive content is rendered in stunning 4K resolution, even in brightly lit environments.
3 Rugged Durability
Vandalism is deterred. A rugged cold-rolled steel enclosure and tempered safety glass are featured. 24/7 continuous operation is sustained by our reliable computing nodes.
Technology Specifications.
ARCHITECTURAL KIOSK SERIES // DATASHEET
| Component | Specifications |
|---|---|
| Screen Sizes Available | 32" / 43" / 49" / 55" / 65" (Portrait or Landscape) |
| Display Resolution | 1920x1080 (FHD) / 3840x2160 (4K UHD) |
| Touch Technology | 10-Point Projected Capacitive (PCAP), Anti-Glare Glass |
| Brightness & Contrast | 400 - 700 nits (Indoor) / Up to 2500 nits (Outdoor optional), 4000:1 Contrast |
| OS & Processor (Android) | Android 11/12, Rockchip RK3399 / RK3568, 4GB RAM, 32GB ROM |
| OS & Processor (Windows) | Windows 10/11 IoT, Intel Core i3 / i5 / i7, 8GB/16GB RAM, 128GB/256GB SSD |
| Enclosure Material | 1.5mm Cold-Rolled Steel Chassis, Aluminum Alloy Edging |
| Network & Connectivity | Gigabit LAN (RJ45), Dual-Band Wi-Fi, Bluetooth, Optional 4G/5G |
| Integrated Audio | Dual 10W Stereo Speakers |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Frequently Asked Questions.
Deployment insights for system integrators and facility managers.
Absolutely. Powerful Intel Core processors or high-end ARM architectures are utilized. Both Windows and Android operating systems are fully supported to ensure your custom mapping software runs smoothly.
Yes. Specific models are engineered with IP65-rated weatherproof enclosures. High-nit displays (up to 2500 nits) and smart HVAC cooling systems are integrated for outdoor environments.
Vandalism is mitigated effectively. 7H tempered safety glass is layered over the capacitive touch sensor. The screens are highly resistant to scratches and impact, ensuring longevity in public spaces.
Yes. A highly modular interior architecture is featured. Cut-outs and mounting brackets for RFID readers, barcode scanners, and thermal printers are customized according to your project requirements.
Front-access mechanisms are implemented. The display panel can be unlocked and swung open via gas struts, allowing technical staff to service internal components without removing the kiosk from the wall.
Start Planning Your Digital Directory Project.
Smart cities and premium facilities are powered by TillNode hardware. Architectural CAD files, detailed spec sheets, and project-based pricing are ready to be dispatched to your engineering team.
Integrating a complex SI project? Consult with our hardware architects.
