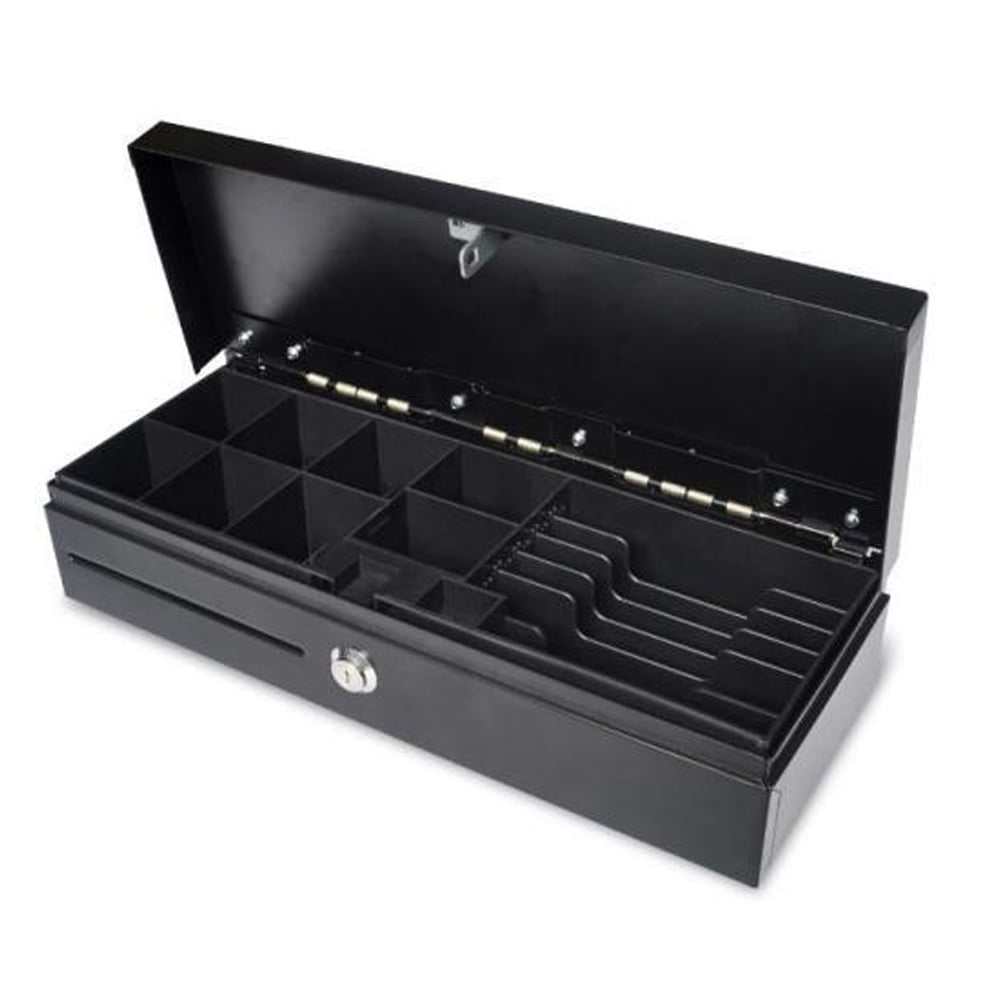

SN-CD170 Flip-Top Cash Drawer:
Engineered for Confined Checkout Spaces.
Countertop footprint is drastically reduced. The SN-CD170 features a vertical flip-top opening mechanism, bypassing the space limitations of traditional slide-out drawers. A high-capacity 8-bill and 8-coin layout is integrated perfectly within a compact full-metal chassis. High-frequency transactions are handled flawlessly. Your POS station remains organized, secure, and highly efficient.
- ⬆️ Vertical Space-Saving Design
- 🛡️ 1,000,000-Cycle Durability
- 🔌 RJ11/RJ12 Seamless Integration
Industrial Reliability for High-Volume Retail.
Mechanical precision executed.
Space-Saving Flip-Top Architecture
Ergonomics are prioritized. The lid opens upward instead of thrusting forward. Operator fatigue is minimized. Ideal for tight cashier areas and sophisticated checkout counters where depth is restricted.
Heavy-Duty Metal Construction
Vandalism and daily wear are deterred. The casing, bottom, and top panel are constructed entirely of thick cold-rolled steel. A 1,000,000-cycle operational lifespan is strictly guaranteed for heavy daily use.
Universal POS Connectivity
Hardware compatibility issues are eliminated. An industry-standard RJ11/RJ12 interface is deployed. The drawer pops open instantly when triggered by a 12V or 24V signal from standard receipt printers or POS terminals.
3-Position Security Lock
Cash assets are rigorously protected. A commercial-grade 3-position key lock is integrated, supporting manual open, electronic online (POS driven), and fully locked modes. Maximum control is delivered to store managers.
Core Specifications (SN-CD170).
Precision data for system integrators.
| Feature | Specification |
|---|---|
| Model | SN-CD170 |
| Design Type | Flip-Top (Vertical Open) |
| Dimensions (W×D×H) | 460 × 170 × 100 mm (18.1 × 6.7 × 3.9 in) |
| Weight | Net: 5.0 kg / Gross: 5.3 kg |
| Insert Capacity | 8 Bills (Adjustable) + 8 Coins (Removable Tray) |
| Material Construction | Full Metal Casing & Bottom / Plastic Money Tray |
| Lock Mechanism | 3-Position Key Lock (Manual Open, Electric, Locked) |
| Interface | RJ11 / RJ12 (Micro-switch included) |
| Driving Voltage | 12V / 24V / Customized |
| Cycle Life | 1,000,000 Operations |
| Optional Upgrades | Stainless Steel Top Panel available |
Deployed Where Space is Premium.
Adaptable to any physical constraint.
Supermarket Checkout Lanes
Cashier efficiency is maximized. The flip-top mechanism integrates flawlessly into custom-built scanning counters without interfering with the cashier's body space.
Convenience Stores & Kiosks
Counter real estate is preserved. Essential POS displays and barcode scanners can be positioned closer to the operator due to the SN-CD170’s compact 170mm depth.
Mobile POS & Pop-up Stores
A robust and reliable cash management node is established swiftly in temporary or highly confined commercial environments.

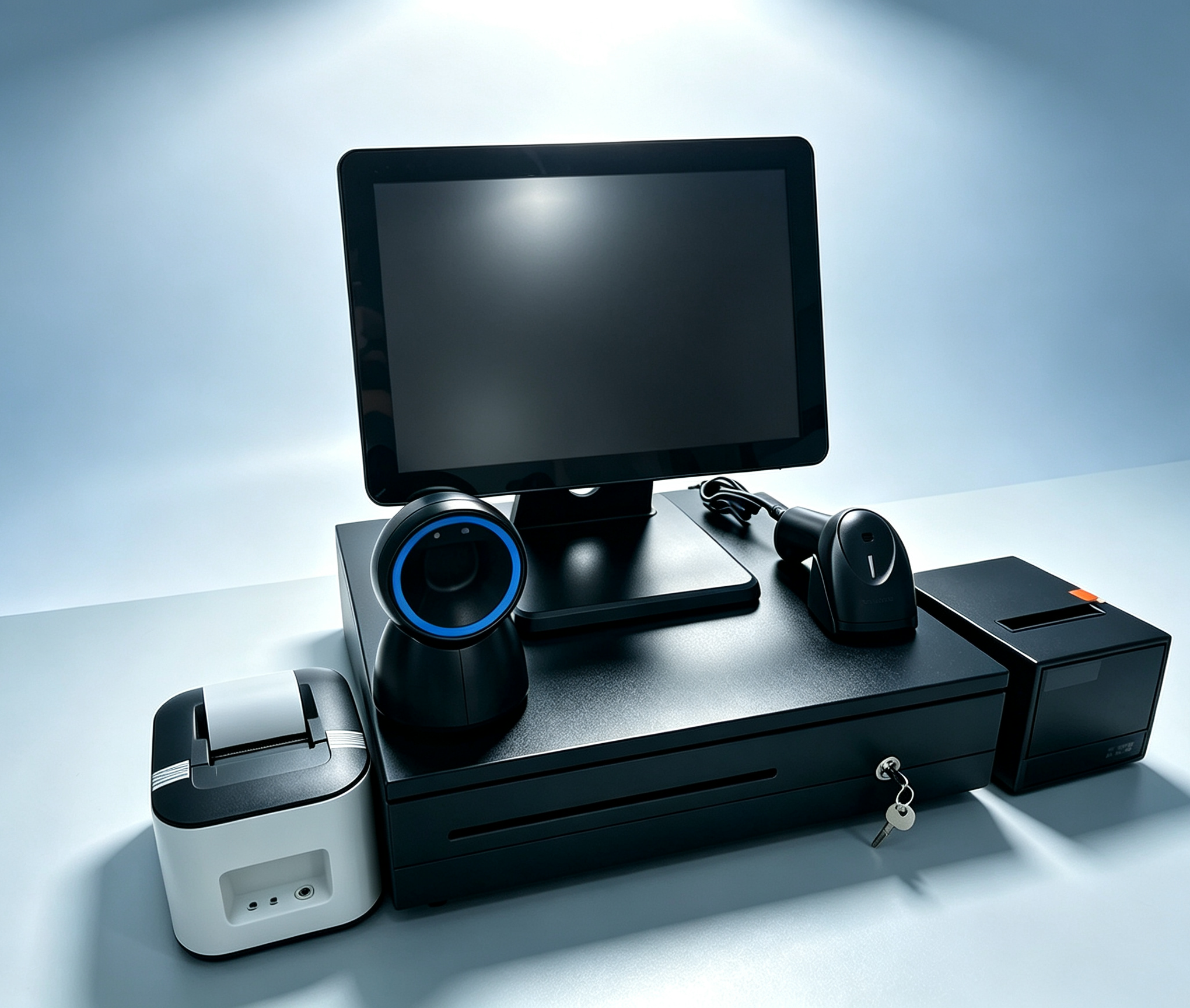

Built for Global Brands. OEM/ODM Ready.
Generic solutions are transcended. We provide comprehensive customization services for global POS hardware distributors and software vendors.
From specific Stainless Steel Top Panels for premium aesthetics, to custom lock keyways and tailored interface wiring. Your corporate logo can be precision-stamped or laser-engraved. The hardware is transformed to reflect your brand's authority.
Discuss Custom Manufacturing
Technical & Deployment Inquiries.
Clarity is delivered.
Q: How does the SN-CD170 connect to our existing POS system?
Seamless integration is guaranteed. The drawer is equipped with an industry-standard RJ11/RJ12 cable. It connects directly to the DK (Drawer Kick) port on the back of any standard thermal receipt printer (e.g., Epson, Star, Bixolon). The POS software simply sends a print command to pop the drawer.
Q: Is this cash drawer compatible with both 12V and 24V printers?
Yes. The internal solenoid is engineered to handle standard 12V or 24V pulse signals dynamically. It works flawlessly with both portable POS systems and heavy-duty desktop receipt printers.
Q: What happens if there is a power outage in the store?
Operations remain uninterrupted. The SN-CD170 features a secure 3-position lock. By using the provided physical key, the manager can manually bypass the electronic mechanism and open the drawer to process cash transactions during a power failure.
Q: Can we order the SN-CD170 with a stainless steel lid?
Absolutely. While the standard model features a durable black powder-coated metal lid, a premium brushed stainless steel top panel is available as an optional upgrade to enhance durability and visual appeal.
Q: What is the MOQ for OEM customization (like logo printing)?
Flexibility is provided for our partners. While standard unbranded orders have very low MOQs, OEM customization (logo, specific packaging) typically starts at just 200 units. Sample units are provided rapidly upon request.
