SN-F20 Foldable Aluminum 15.6″ POS Terminal
Retail hardware specified for the work it actually does.
The SN-F20 puts a 15.6-inch 1080p panel in a full aluminium chassis on a folding stand. Folded, the carton comes in up to 40% smaller than a fixed-stand model — that is the number that sets your freight and your storage cost. The aluminium case carries heat off the board, so there is no fan and no intake for dust or grease.
- MOQ 1 with 10–15 day lead time on stock models
- Spec sheets and SDK released before the order
- 24-month warranty, OEM branding available on volume orders
- SKU
- SQN-SN-F20-FOLDA
- Availability
- In Stock
- Lead Time
- 10-15 business days
- Warranty
- 24 months standard

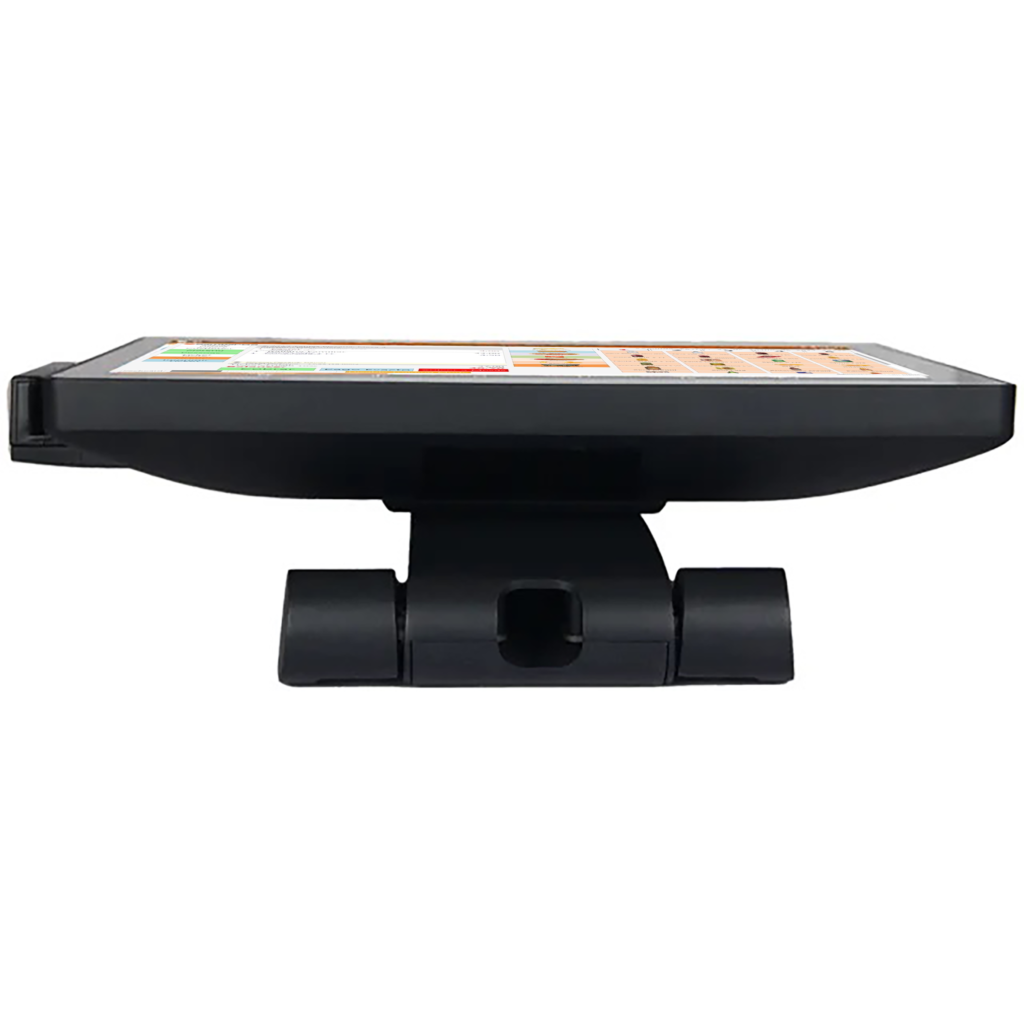

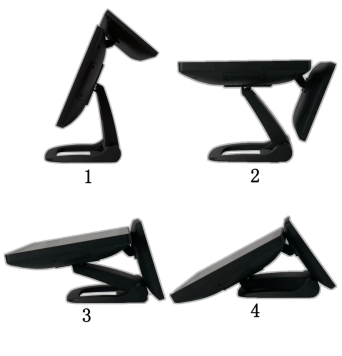

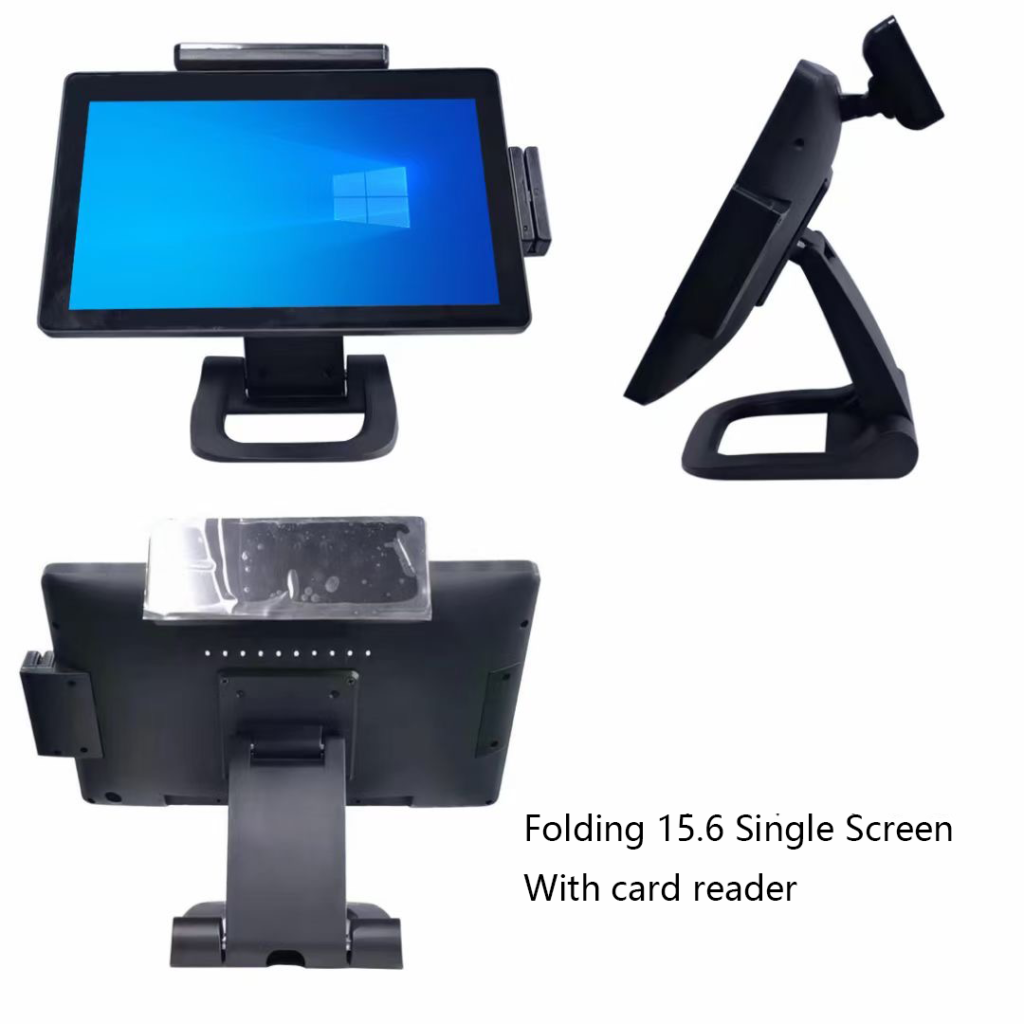

Folds into a carton up to 40% smaller
The stand folds, so the carton is smaller than a fixed stand allows — up to 40% less volume than a comparable non-folding model. You fit more units per pallet, which is the number that decides your landed cost, and the same saving applies to shelf space in your warehouse.

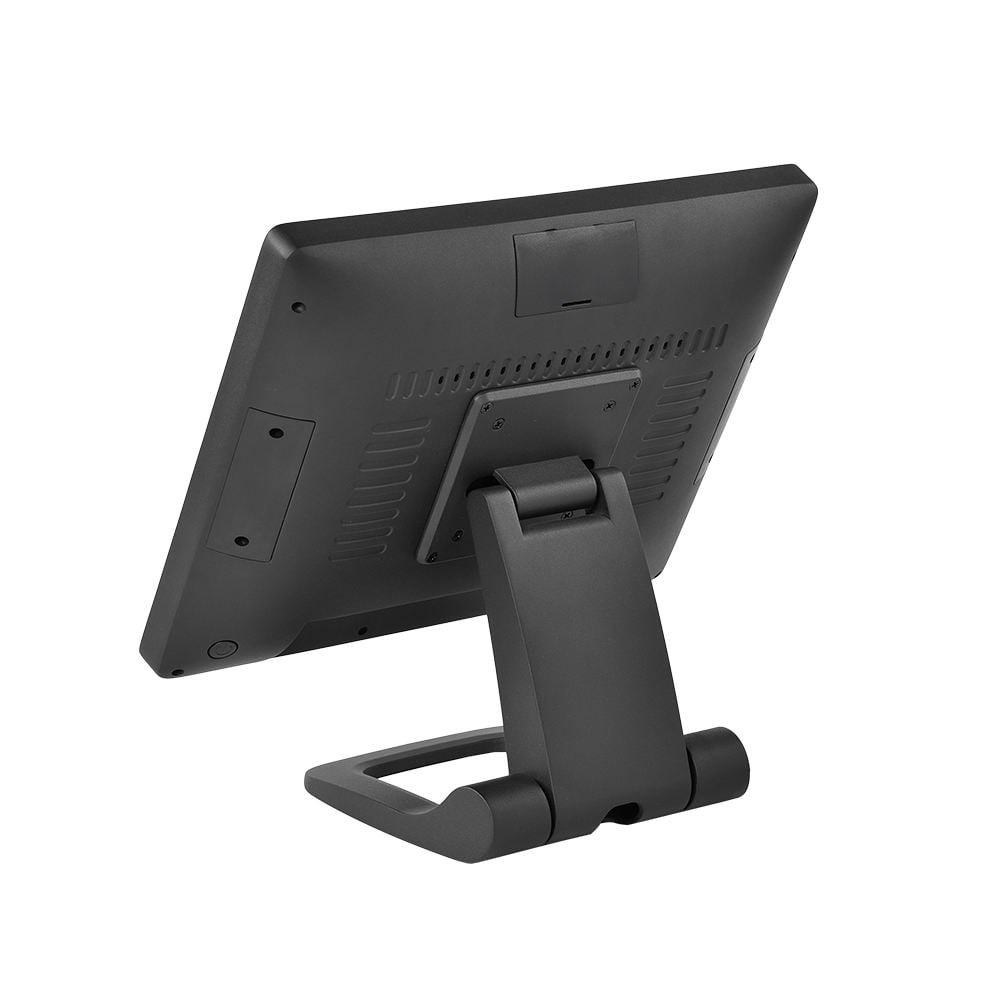

The chassis is the heatsink
We machine the housing from aluminium rather than wrapping plastic around a frame. The case itself carries heat away from the board, so there is no fan to draw in dust and no vent for grease to find. The chassis you ship is the heatsink.

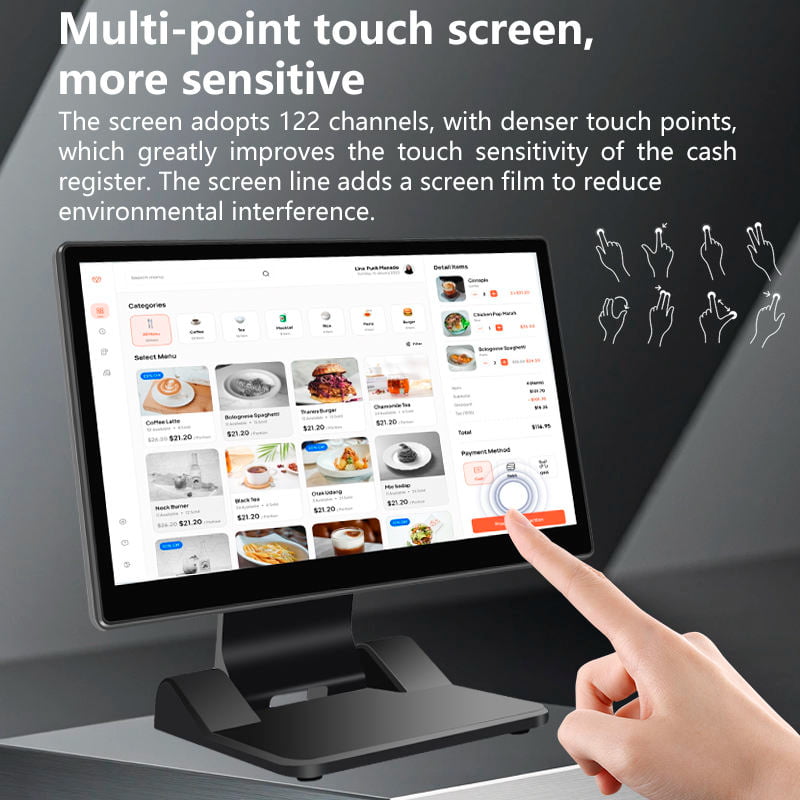

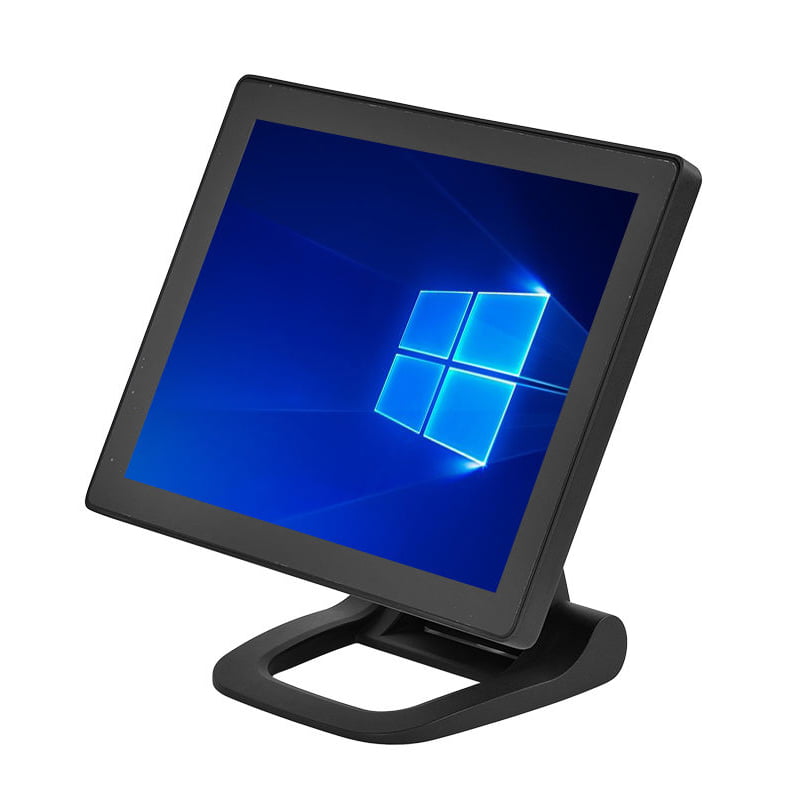

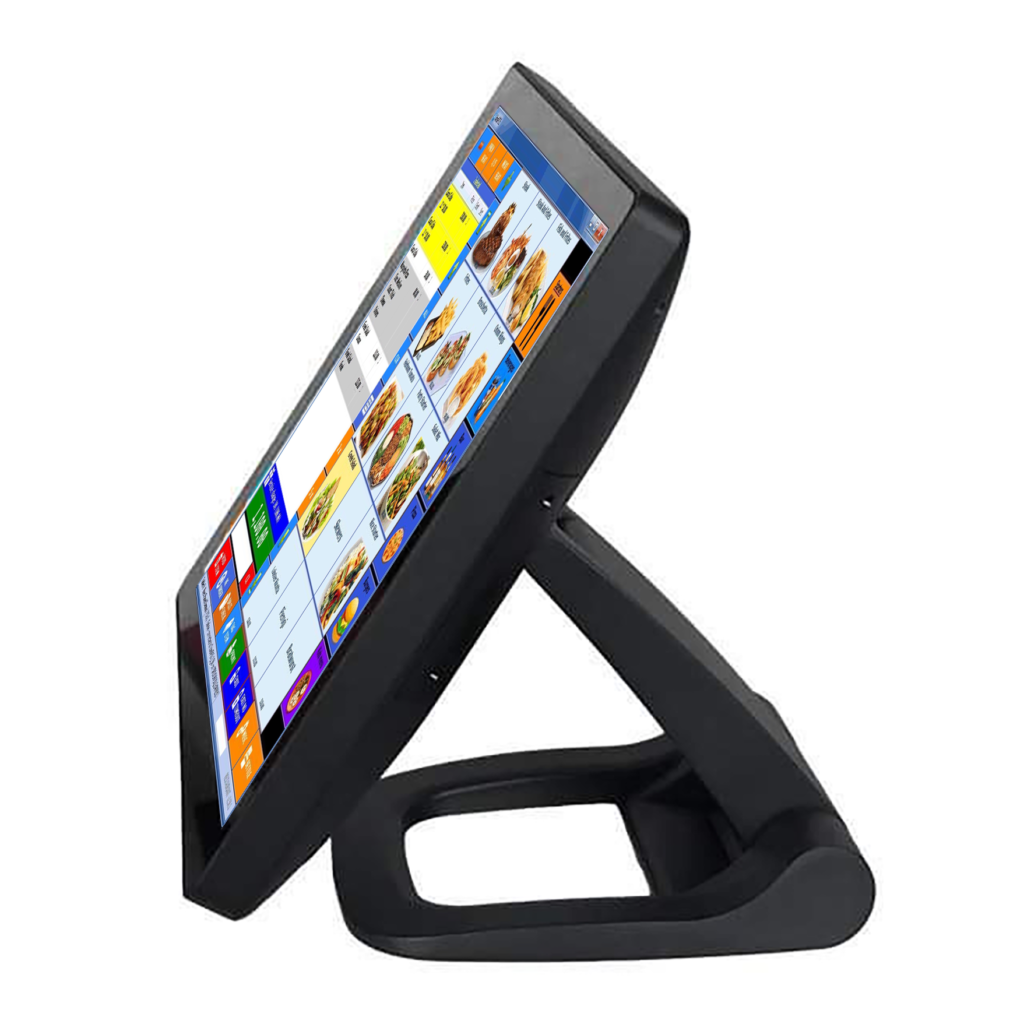

15.6-inch 1080p behind bezel-free glass
A 15.6-inch 1080p panel gives a cloud POS dashboard the width it was designed for — columns, tables and order tiles all fit without horizontal scrolling. The bezel-free glass runs to the edge, so the screen you ordered is the screen the cashier gets.
Technical Details
Full specifications, documentation, and customization options for engineering evaluation.
| Main Display | 15.6" TFT Widescreen LCD, 1920x1080 FHD |
|---|---|

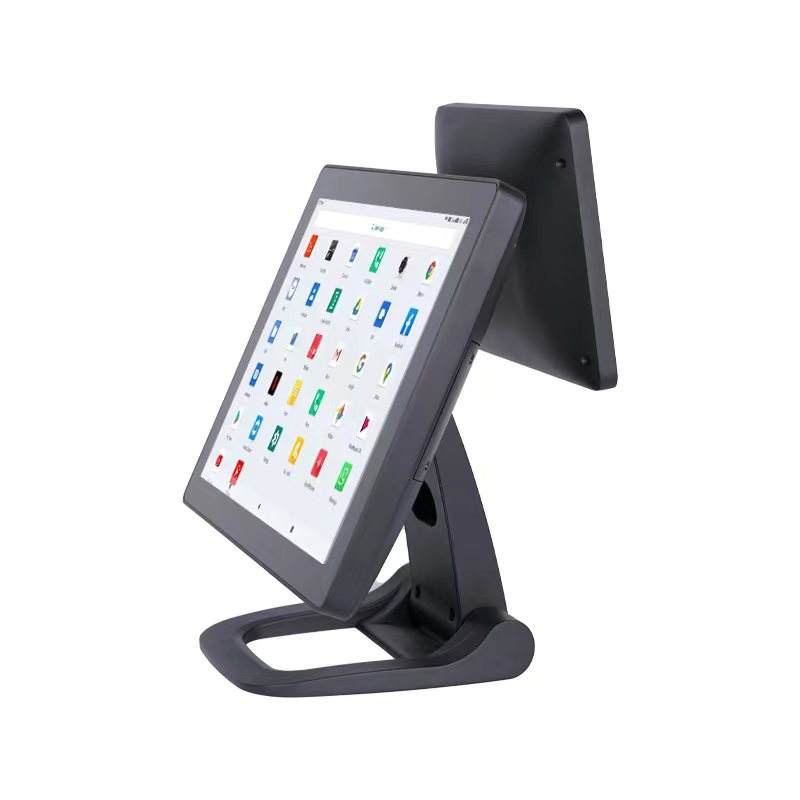

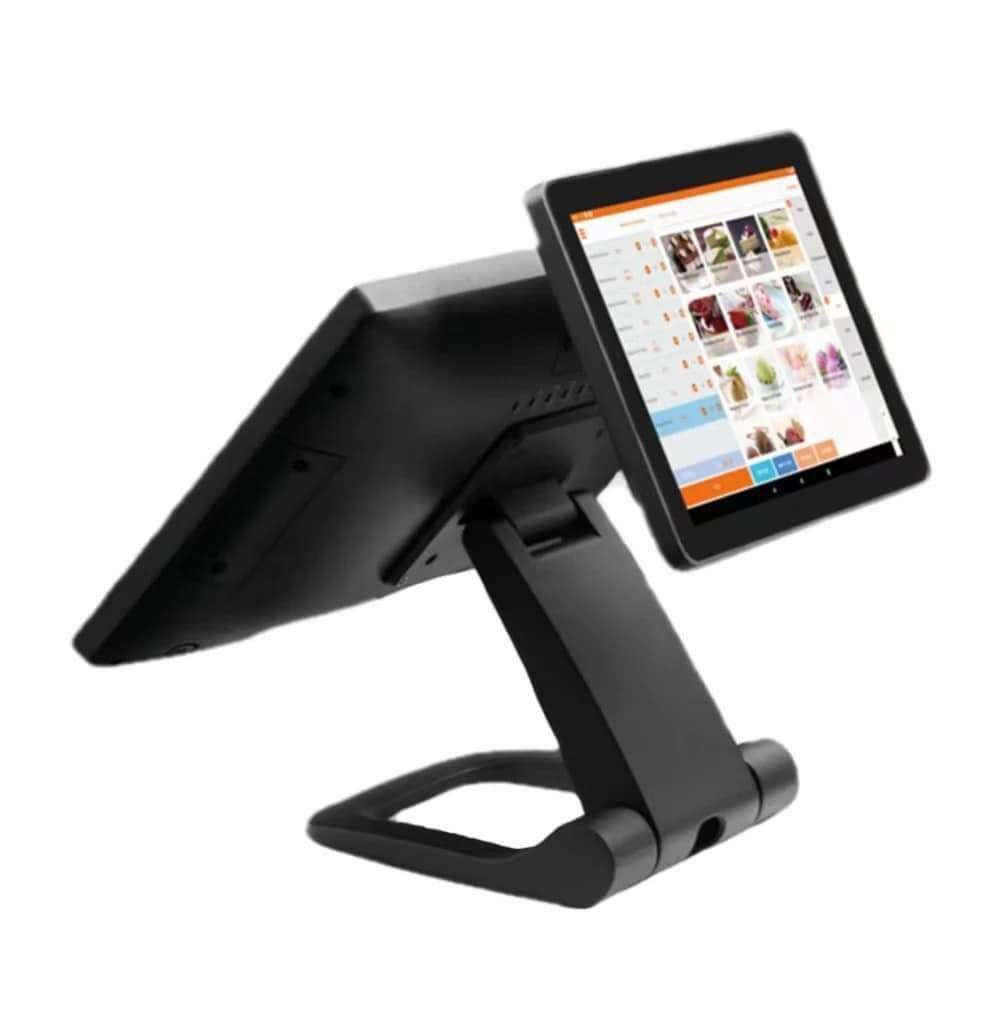

| Customer Display | Optional 11.6" / 15.6" LCD (Touch / Non-touch) or VFD (2 Lines x 20 Characters) |
| Processor (CPU) | Intel® Celeron J4125 / Core i3 / Core i5 (Configurable) |
| Memory (RAM) | 4GB / 8GB / 16GB DDR4 RAM |
| Storage (ROM) | 128GB / 256GB / 512GB SSD |
| Dimensions | 430x450x290(mm) |
| NFC | Optional NFC module (factory-fitted), supports TYPE-A&B cards, FeliCa (F), ISO14443, 15693(M), 18092(NFCCIP-1). |
| Material | Full Aluminum Alloy (Die-cast) |

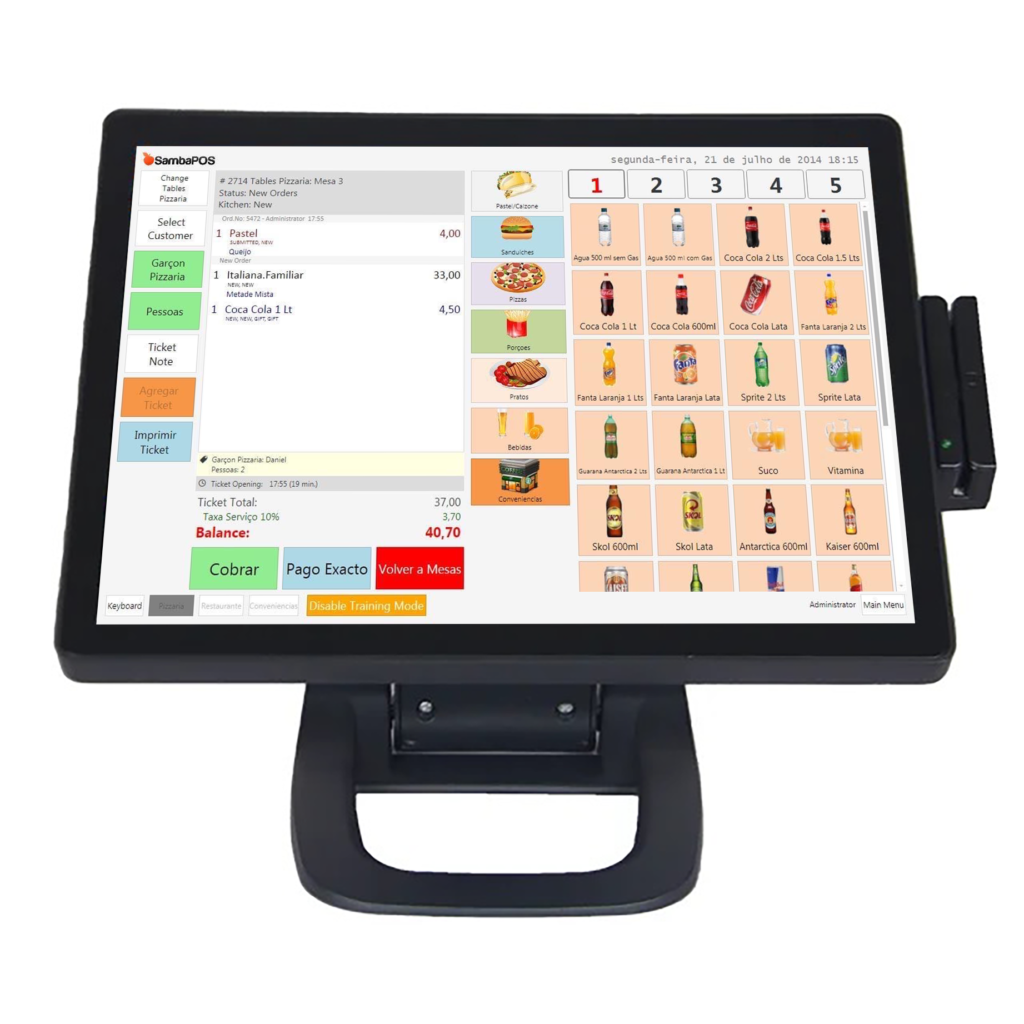

| Peripheral Options | MSR, iButton, IC / ID / NFC / RFID Card / Fingerprint Sensor / Camera |
| 4G Module (Optional) | Embedded 4G Module, Micro SIM: LTE-FDD:B1/3/5/8 LTE-TDD:B34/38/39/40/41 |
| Environment | Operating: 0°C to 40°C | Storage: -20°C to 60°C |
Frequently Asked Questions
Common inquiries from retailers, system integrators, and procurement teams.
Does the foldable hinge wear out over time?
We fit damped steel hinges and test them through tens of thousands of movements. They hold their position instead of loosening, so the screen does not droop after a year of daily adjustment.
How much shipping cost can be saved with this foldable design?
The folding stand cuts carton volume by up to 40%. Depending on the container, you load 30 to 40% more units per pallet, and that is where the freight saving shows up.
Is the aluminum casing prone to static electricity?
No. We ground the chassis internally, so static leaves through the case instead of building up on it. The board sits on the grounded plate.
