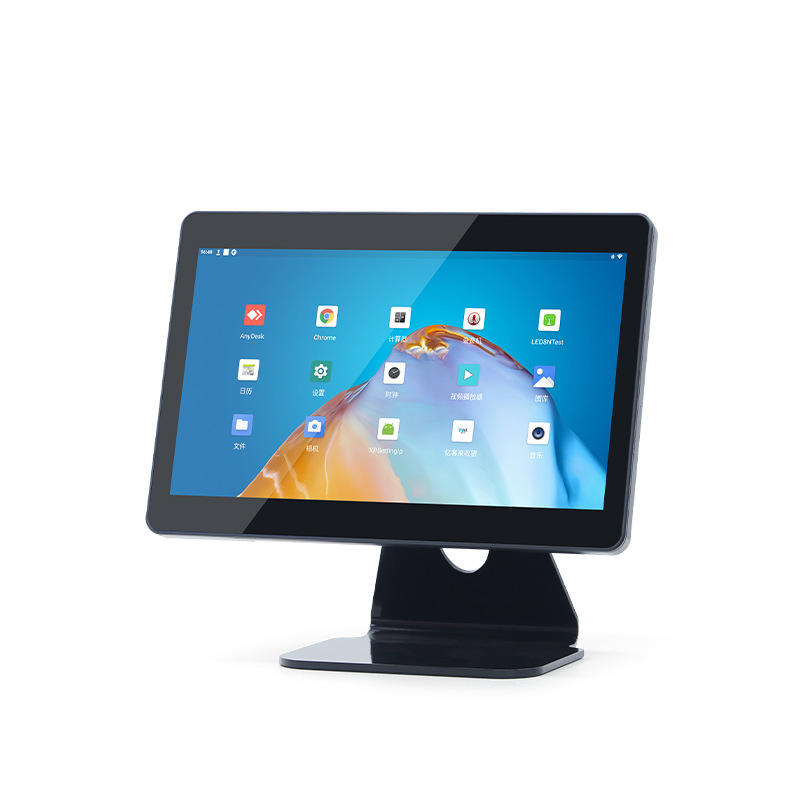

SN-C20 15.6″ Touch Screen POS Terminal
Retail hardware specified for the work it actually does.
The SN-C20 runs a 15.6-inch true-flat capacitive screen on either an Intel board for Windows or a Rockchip board for Android, inside the same chassis. We seal the front panel to IP54, so a restaurant counter takes splashes. VESA holes let you swap the stand for a wall or pole mount. Need a complete setup? View all all-in-one POS terminals or add a cash drawer.
- MOQ 1 with 10–15 day lead time on stock models
- Spec sheets and SDK released before the order
- 24-month warranty, OEM branding available on volume orders
- SKU
- SQN-SN-C20-15-6-
- Availability
- In Stock
- Lead Time
- 10-15 business days
- Warranty
- 24 months standard

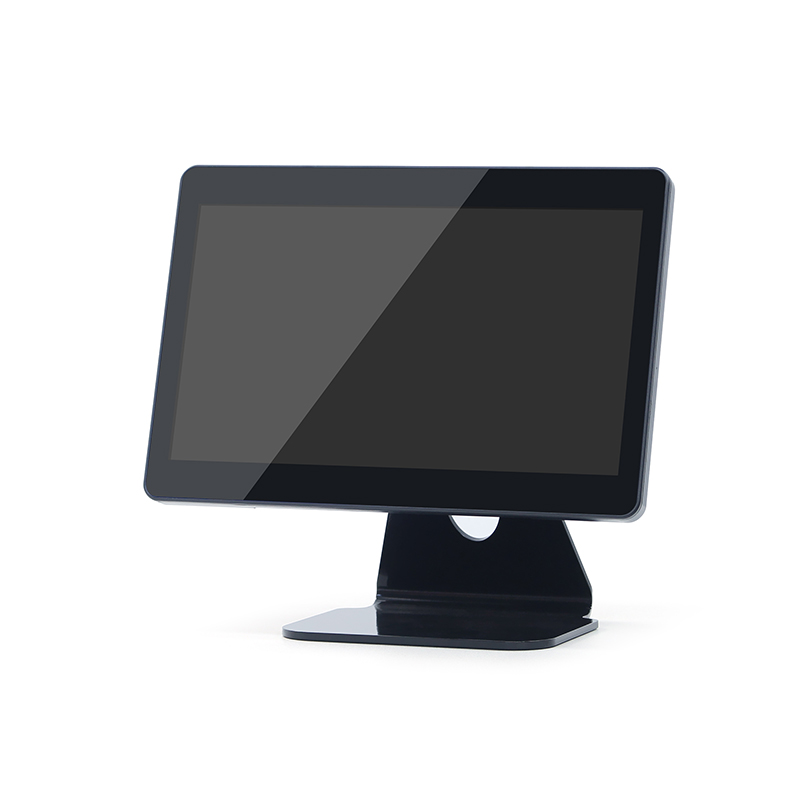

True-flat glass front, sealed to IP54
The touch layer sits under a single sheet of glass with no raised bezel, so a spill wipes off instead of running into a seam. We seal the front panel to IP54, which is what you want on a restaurant counter where drinks get knocked over.
Intel J4125 or RK3568 in the same enclosure

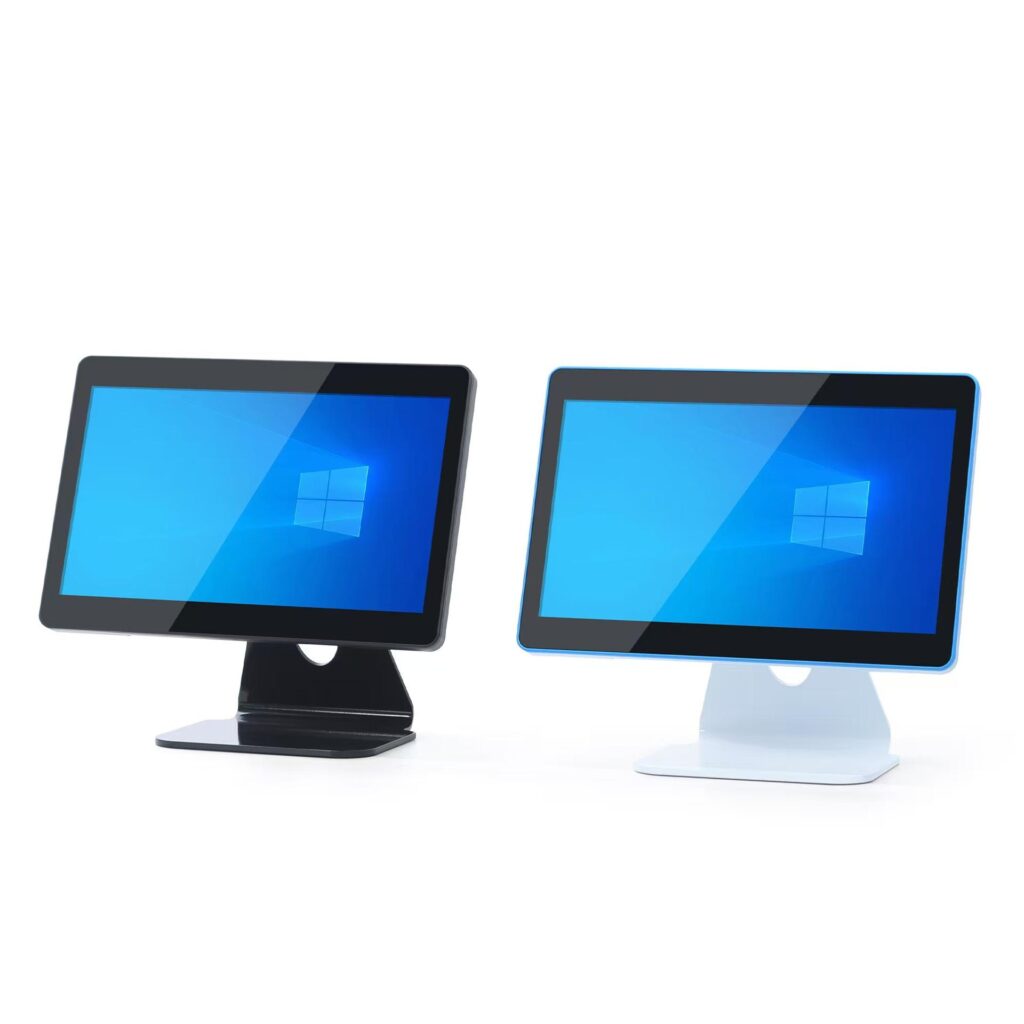

You pick the board: Intel J4125 or Core i3/i5 for Windows 10/11, or Rockchip RK3288/RK3568 for Android. The panel, the enclosure and the mounting holes stay the same, so you can run both in one estate and keep one spare-parts list.

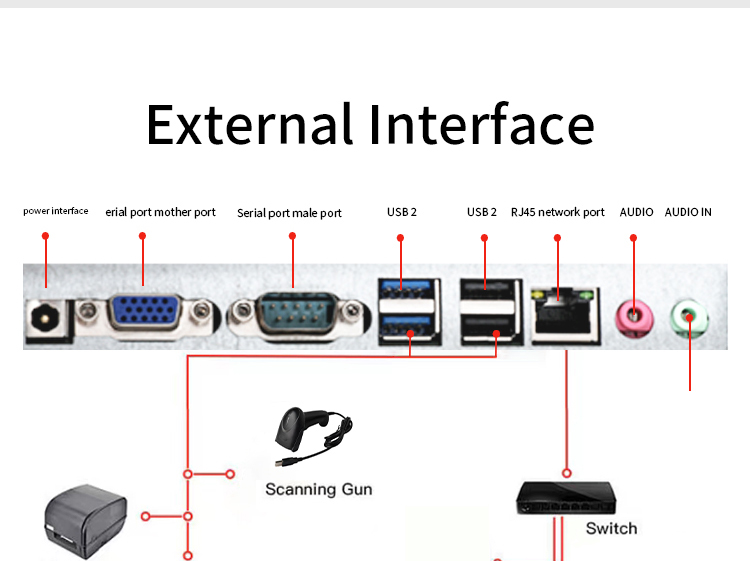

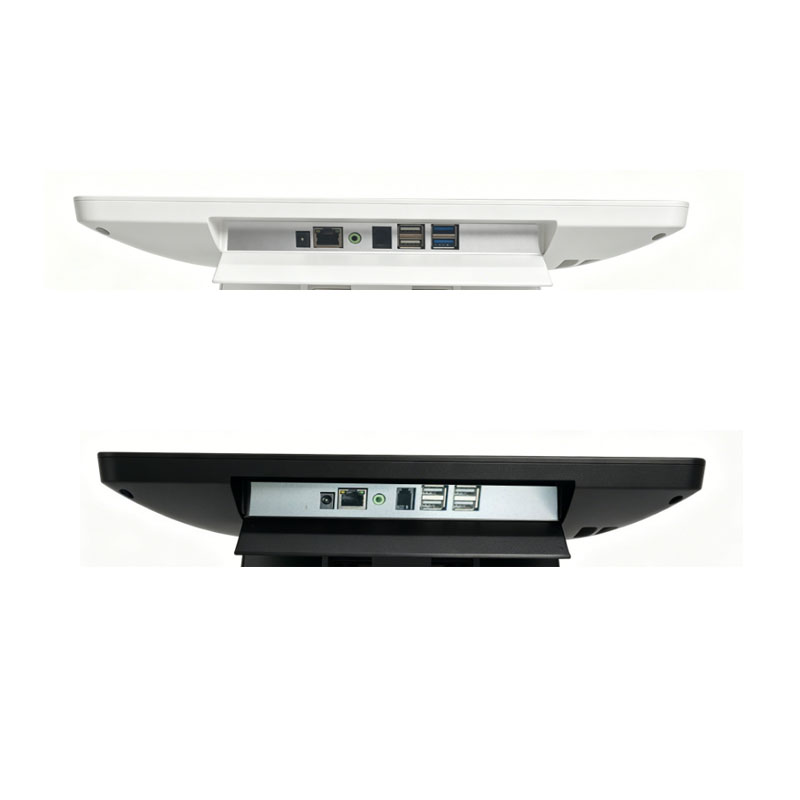

Cables up through the stand, not behind the counter
The cables go up through the stand instead of hanging behind the counter. A shopper sees a clean surface, and your staff stops catching a foot on a loose adapter.
Technical Details
Full specifications, documentation, and customization options for engineering evaluation.
| Main Display | 15.6" TFT LCD, 1366x768 or 1920x1080 (FHD optional) |
|---|---|

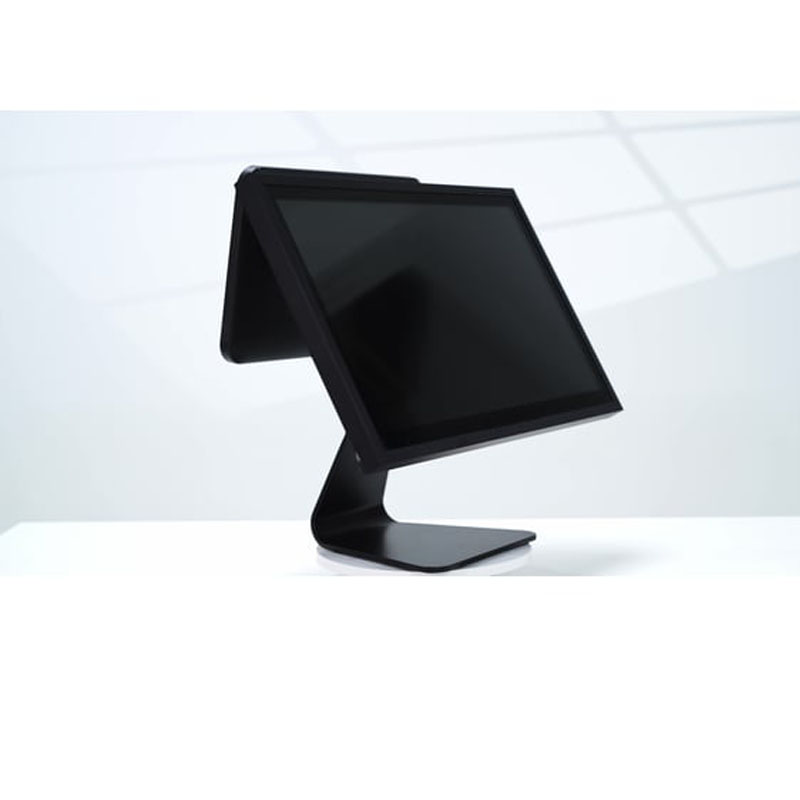

| Customer Display | Optional 11.6" / 15.6" LCD (Touch / Non-touch) or VFD (2 Lines x 20 Characters) |
| Processor (CPU) | Processor (Windows): Intel® Celeron J4125 / Core i3 / Core i5 Processor (Android): Rockchip RK3288 / RK3568 |
| Memory (RAM) | 4GB / 8GB RAM (DDR4) |
| Storage (ROM) | 64GB / 128GB / 256GB SSD (Windows) or eMMC (Android) |
| Dimensions | 375*215*330mm |
| NFC | Optional NFC module (factory-fitted), supports TYPE-A&B cards, FeliCa (F), ISO14443, 15693(M), 18092(NFCCIP-1). |

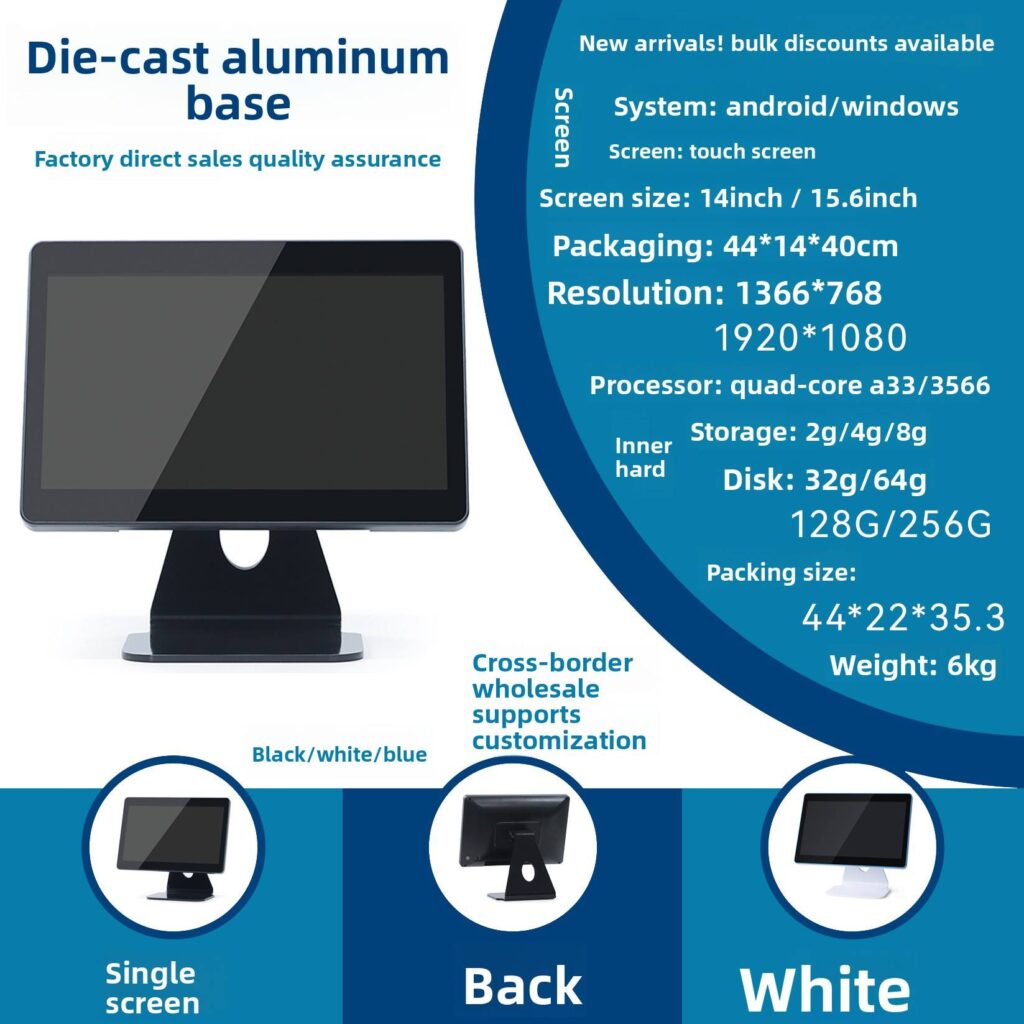

| Material | Aluminum Alloy Stand + High-grade ABS chassis |
| Peripheral Options | MSR, iButton, IC / ID / NFC / RFID Card / Fingerprint Sensor / Camera |
| 4G Module (Optional) | Embedded 4G Module, Micro SIM: LTE-FDD:B1/3/5/8 LTE-TDD:B34/38/39/40/41 |
| Power Supply | 12DC 5A 100-240V |
| Environment | Operating: 0°C to 40°C | Storage: -20°C to 60°C | Front panel: IP54 |
Frequently Asked Questions
Common inquiries from retailers, system integrators, and procurement teams.
Can the SN-C20 be mounted on a wall or a pole?

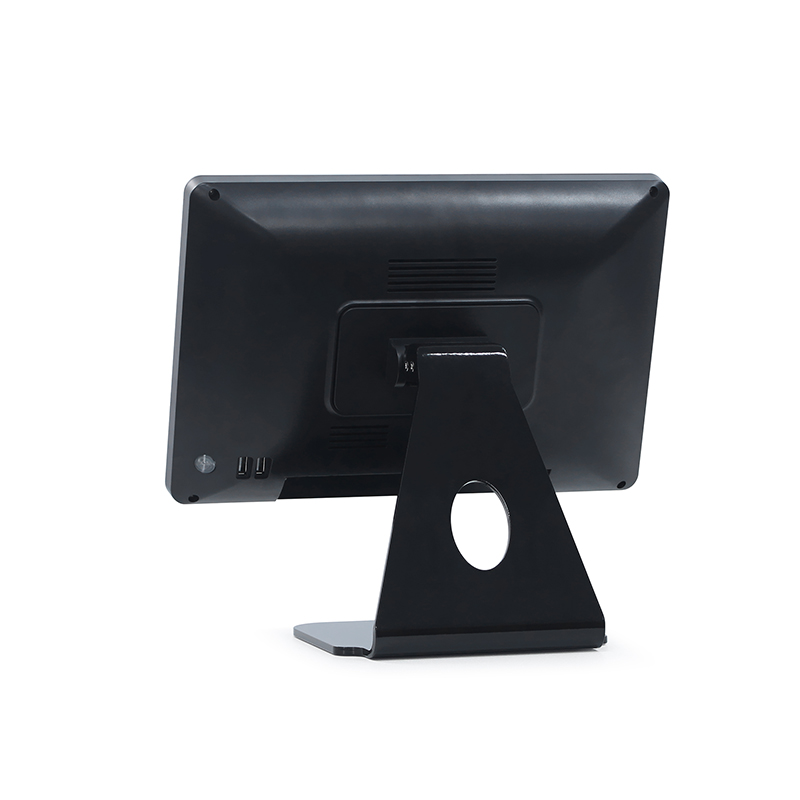

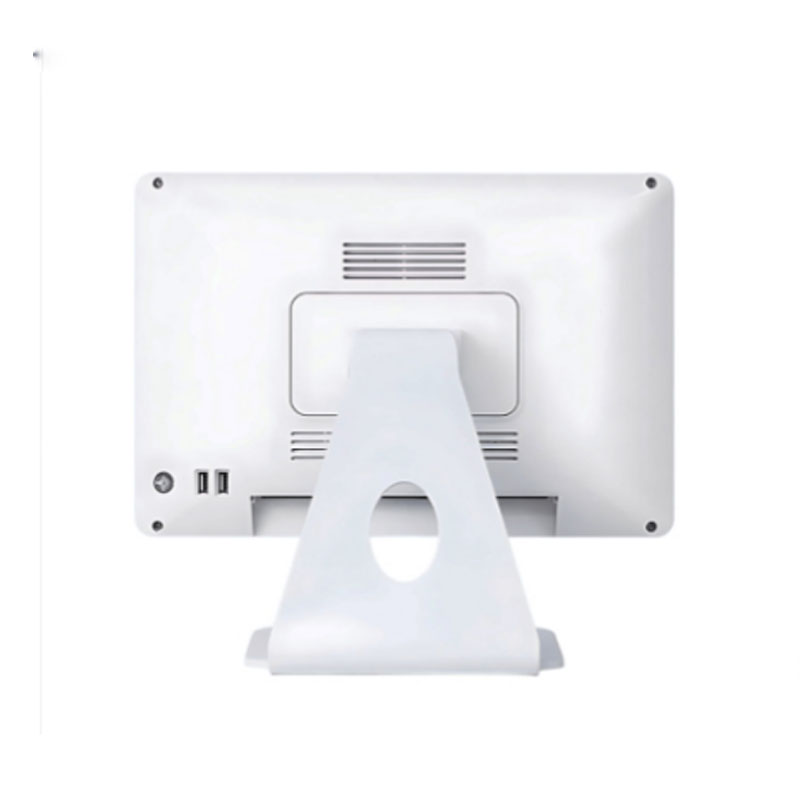

Yes. The back panel carries 75×75 and 100×100 VESA holes, so the unit mounts on a wall bracket, a pole or a kiosk enclosure once you remove the stand.
Can we choose between Android and Windows on this model?
Yes. We fit an Intel board for Windows or Linux, or a Rockchip board for Android. Tell us what your software runs on and we configure it at the factory.
How is the hardware protected against spills in restaurant environments?
We seal the front panel to IP54, so splashes and dust do not get behind the glass. Wipe it down and the terminal carries on.
