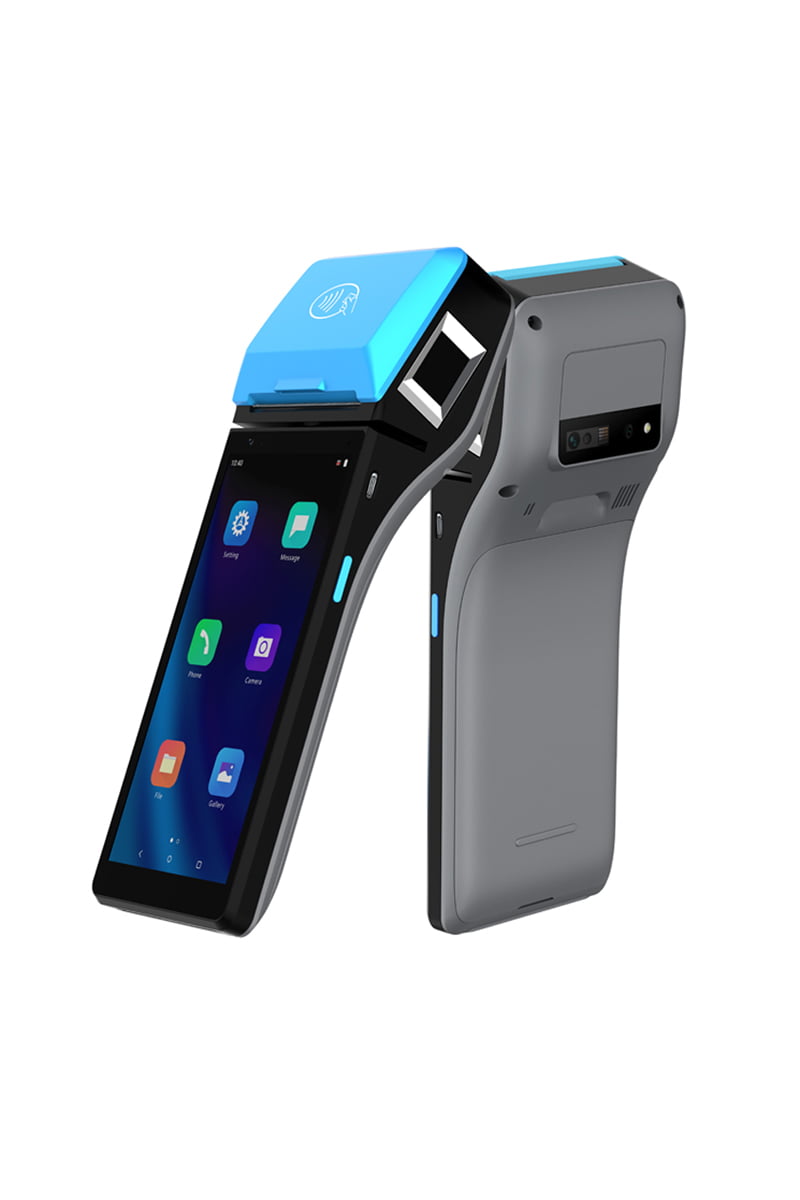

SN-H50: The Certified Financial Node.
Bank-grade security. Omnichannel payments.
The SN-H50 brings enterprise-grade transaction processing straight to the physical store. A unique dual-display architecture and stringent global financial certifications fit into an ultra-slim 18mm profile. TillNode engineers uncompromised trust into every transaction.
- Profile
- 18mm
- Certified
- PCI 6.x
- Displays
- Dual
Globally Certified. Universally Accepted.
The SN-H50 guarantees strict financial compliance for your software. PCI PTS 6.x and EMV L1 & L2 certifications sit inside the hardware, and it processes every modern payment method — Magnetic Stripe, IC Card, Contactless NFC, QR codes and Apple Pay. Your gateway to global commerce stays secure.
Secured OS. Enterprise Scalability.
A GMS-certified Android environment keeps your data private. The Quad-Core processor and expanded 32GB ROM drive high-demand retail software without strain, and the unit integrates fully with your MDM (Mobile Device Management) platforms.
- Certified Google Mobile Services (GMS) ecosystem
- Compatible with SOTI, VMware AirWatch, MobileIron and custom MDM
- Hardware-level encryption and secure boot chain
Real Stores.
Real Synchronization.
From hypermarkets to boutique retailers, TillNode powers the physical layer of modern commerce with reliable, purpose-built hardware nodes.
Secured OS.
Enterprise Scalability.
The GMS-certified Android 11 OS puts data privacy first. The Quad-Core processor and expanded 32GB ROM drive complex retail software without strain, and integration with your MDM (Mobile Device Management) platforms gives you centralized control over thousands of devices.
Android 11 GMS
Latest security patches, Play Protect and full Google service compatibility for global markets.
32GB Expanded ROM
Ample storage for offline transaction caching, receipts and multi-tenant retail applications.
MDM Integration
Deploy, monitor and update thousands of devices remotely through standard MDM APIs.
High-Speed Output. Precision Capture.
The SN-H50 clears checkout bottlenecks. Its premium Seiko thermal printer pushes receipts out at 80mm/s, and the professional Zebra 4710 2D engine captures faded or scratched barcodes in 0.1 seconds. High-frequency workflows keep moving with absolute precision.

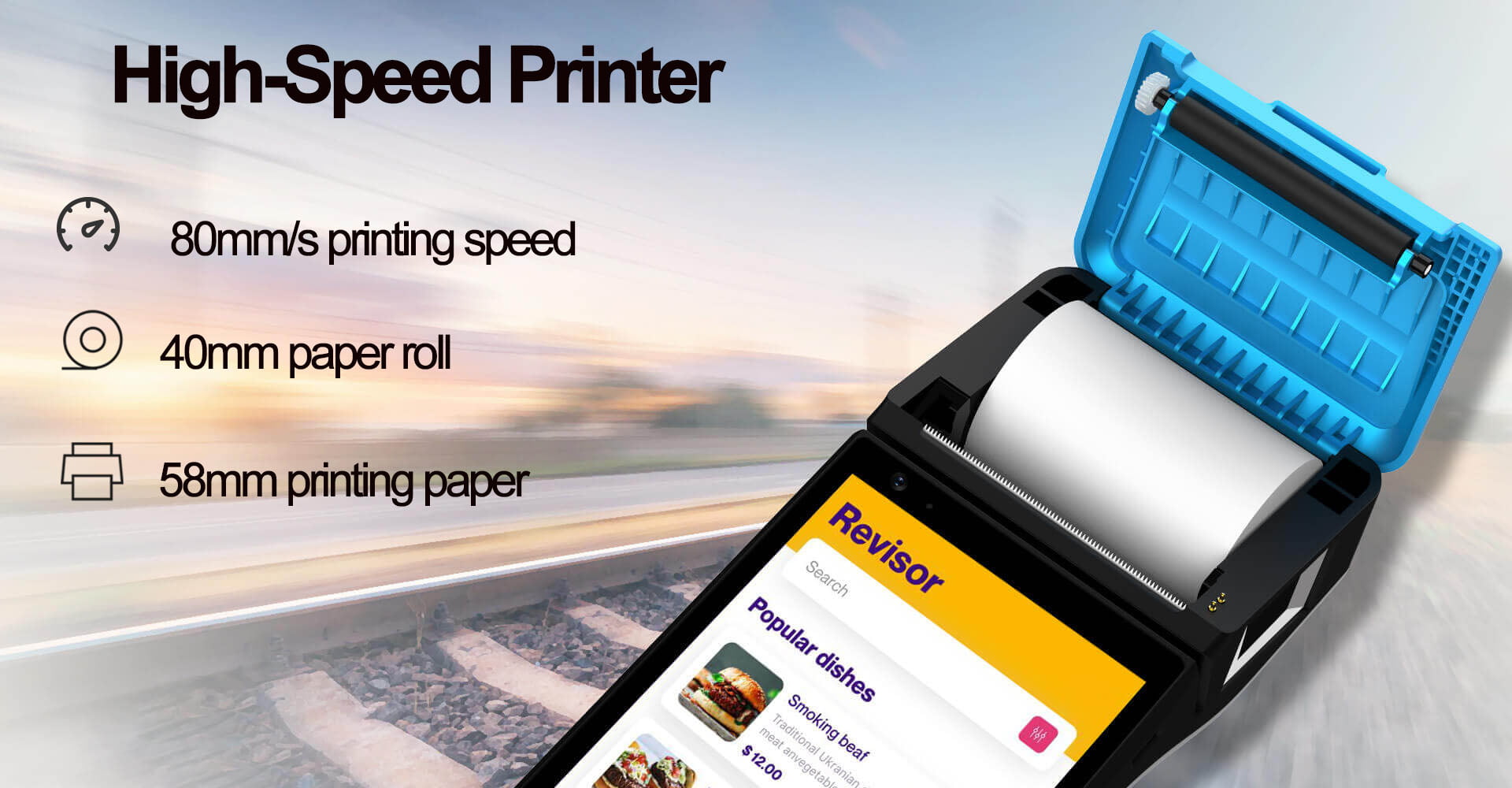

Premium Seiko Thermal Printer
Enterprise-grade Japanese thermal head engineered for millions of print cycles.
- Speed
- 80mm/s
- Width
- 58mm
- Roll
- 40mm

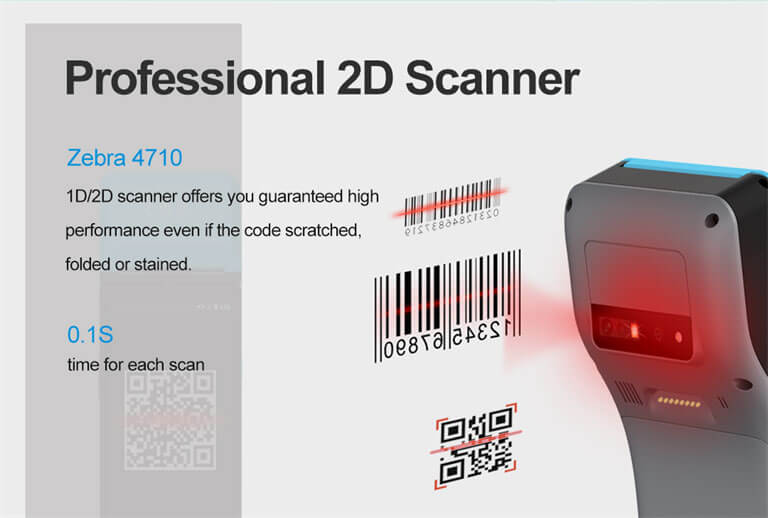

Zebra 4710 2D Scan Engine
Industry-leading optics for damaged, curved and low-contrast barcode capture.
- Capture
- 0.1s
- Type
- 1D/2D
- Rating
- Pro
Biometric Security. Fiscal Readiness.
The SN-H50 meets targeted requirements for specialized industries. An optional FBI-certified fingerprint reader handles advanced identity verification, dedicated Fiscal Modules support strict tax compliance, and a multi-functional Pogo Pin charging cradle with USB and RJ45 ports keeps the unit running.
FBI-Certified Fingerprint
Biometric identity verification for government, healthcare and financial workflows.
Fiscal Compliance Module
Dedicated tax control modules for regulated markets and fiscal reporting requirements.
Multi-Function Pogo Cradle
Pogo Pin charging base with integrated USB and RJ45 ports for continuous operation.
SN-H50 Pro Specifications
Complete technical breakdown of the SN-H50 financial-grade handheld POS terminal.
| Component | Specification |
|---|---|
| Operating System | Android 11.0 (GMS Supported) |
| Processor & Memory | Quad-Core ARM Cortex-A53 2.0GHz / 2GB RAM + 32GB ROM |
| Main Display | 6-inch TFT IPS LCD (1440×720) |
| Customer Display | Dedicated 128×36 Resolution Screen |
| Payment SecurityCore | PCI PTS 6.x, EMV L1 & L2, PayPass, payWave, Amex, Discover |
| Card Readers | Magstripe, IC Card, NFC Contactless |
| Thermal Printer | 58mm High-speed (80mm/s), 40mm Roll (Seiko head) |
| Barcode Scanner | Zebra 4710 2D Scan Engine (Optional) |
| Biometrics | FBI-certified Fingerprint Reader (Optional) |
| Battery & Charging | 7.4V / 2600mAh (3300mAh Optional) / USB Type-C & Pogo Pins Base |
Which handheld fits the project?
One Android stack across six bodies, split by printer speed, panel size and how the unit travels. The two closest alternatives to this page:
Planning the deployment? See how these units work in the field, or read the buying and comparison material.
SN-H50 FAQ
6 questions buyers ask before ordering.
What does PCI PTS 6.x actually cover?
+
PCI PTS 6.x on the terminal, with EMV L1 and L2, plus PayPass, payWave, Amex and Discover. That is the combination an acquirer checks before a terminal goes on a counter, and it is the reason a payment project can use this unit instead of a consumer handheld.
Why does it have a second screen?
+
A dedicated 128 × 36 customer display sits beside the 6-inch 1440 × 720 main panel, so the customer sees the amount without turning the device around. On a counter that is the difference between a clean handover and the cashier tilting the screen.
Which cards does it read?
+
Magstripe, IC card and NFC contactless, all on the same unit. A market that still runs magstripe does not need a second model alongside the contactless fleet.
How fast is the printer?
+
58 mm at 80 mm/s on a 40 mm roll with a Seiko head — faster than the SN-H30 at 70 mm/s, which matters when a queue forms and each receipt is one more second.
How is it charged, and which battery?
+
A 7.4V 2600mAh pack as standard, 3300mAh as an option, charged over USB Type-C or through the pogo-pin base. The base is what makes a counter deployment tidy: the unit drops in and charges without a cable on the desk.
Does it run Google services?
+
Yes: Android 11.0 with GMS, so applications that depend on Google Play Services install without a workaround. Memory is 2GB with 32GB of storage, twice the SN-H30, which leaves room for a payment application plus a stock or loyalty app.
Something not covered here? Ask our engineering team.
Certify Your Payment
Hardware Today.
Leading payment aggregators and POS software developers rely on TillNode. Whether you need full PCI certification or a customized SoftPOS configuration, our engineering team is ready to assist. We welcome bulk orders and global deployments.
