SN-H90 Smart Handheld POS.
The Handheld Checkout Node.
The SN-H90 mobilizes the point of sale completely. One sleek device masters every transaction type and brings the checkout process directly to your customers.
Engineered for
Retail Excellence.
From bustling supermarkets to premium boutiques, the SN-H90 keeps operations fluid. It cuts queuing times and processes inventory updates and transactions right where your staff meet the customer.
Engineered for
Shift-Long Comfort.

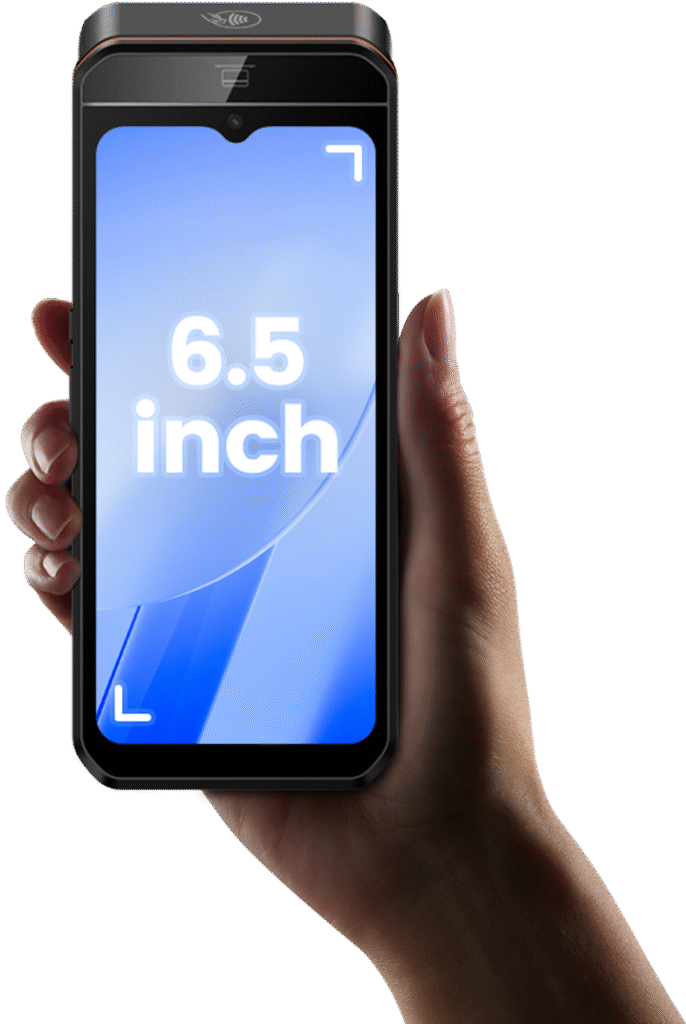

The SN-H90 carries a massive 6.5-inch bezel-less display, so complex POS data reads clearly at a glance. It holds an ultra-thin 21.3mm profile that eliminates operational fatigue, even during the longest shifts.

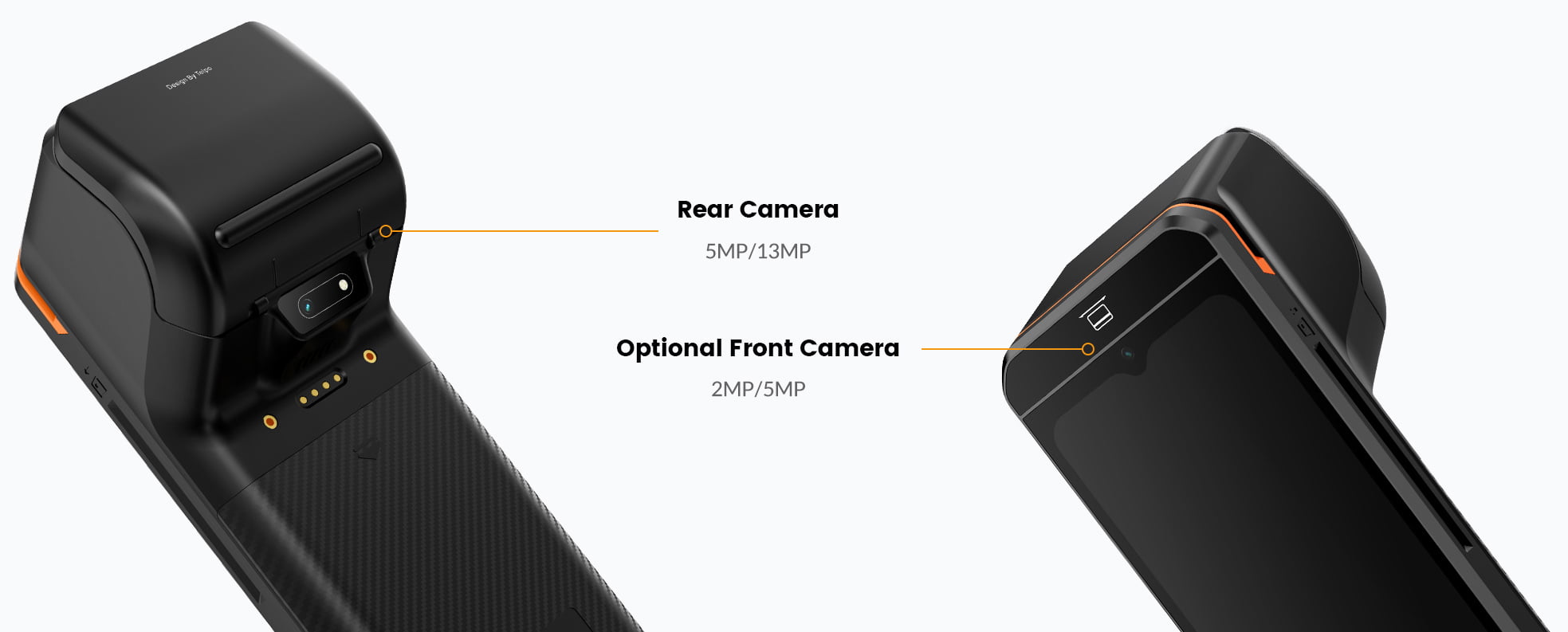

Flexible Dual Camera System
The SN-H90 empowers mobile operations worldwide. Tableside ordering, retail queue-busting or logistics tracking — it adapts to all of them.
Uncompromising
Processing Power.
An advanced 12nm Octa-Core processor runs complex enterprise applications without hesitation, and it guarantees smooth multitasking and rapid barcode decoding for your software.
Octa-Core 12nm CPU
High clock speed for intensive apps.
2GB RAM + 16GB ROM
Up to 3GB+32GB configurations available.
All-in-One & Reliable Payment Terminal.
The terminal supports every major payment protocol, and global certifications secure your financial data.

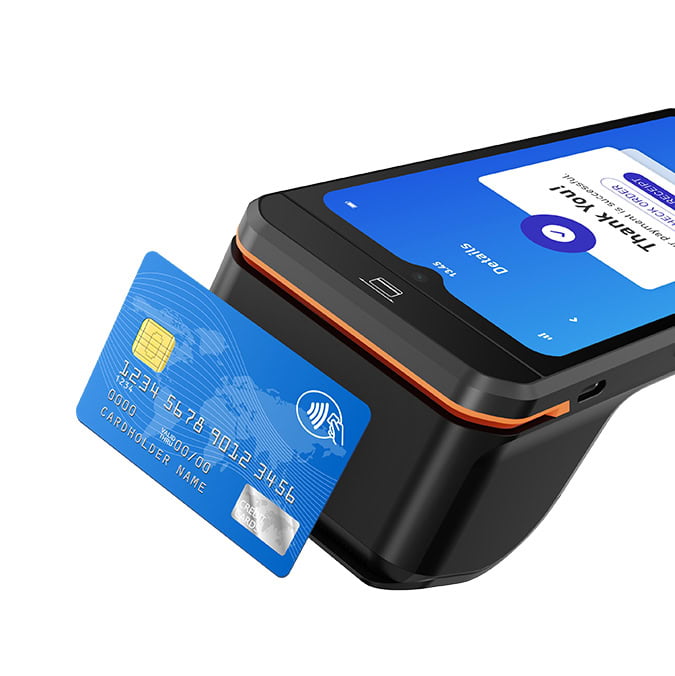

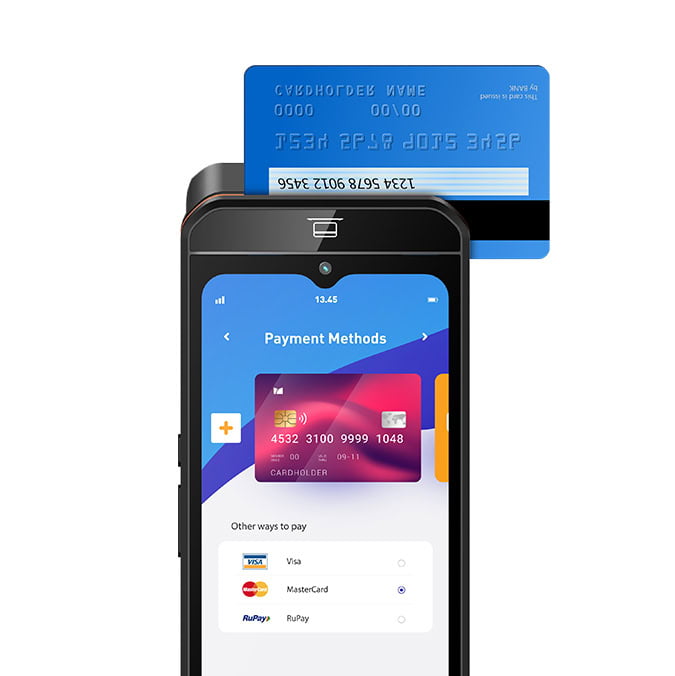

Magnetic Card

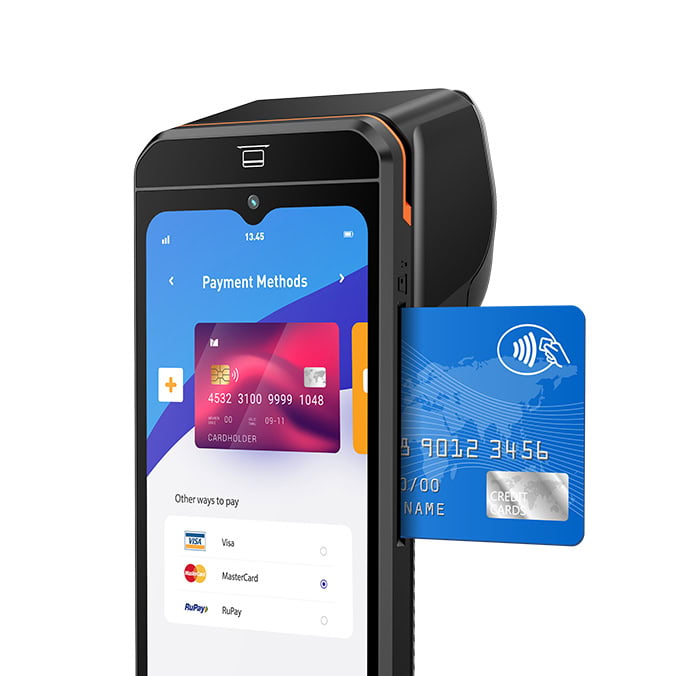

Smart Card

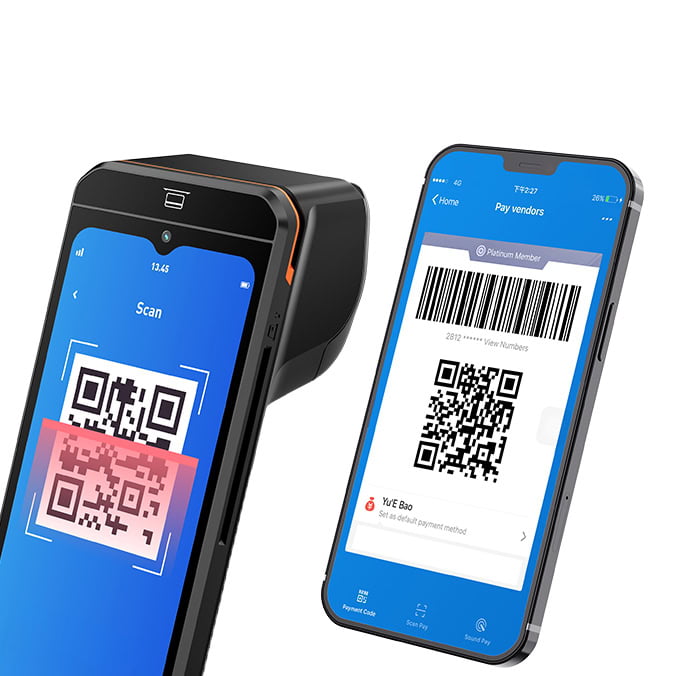

QR Code & Barcode

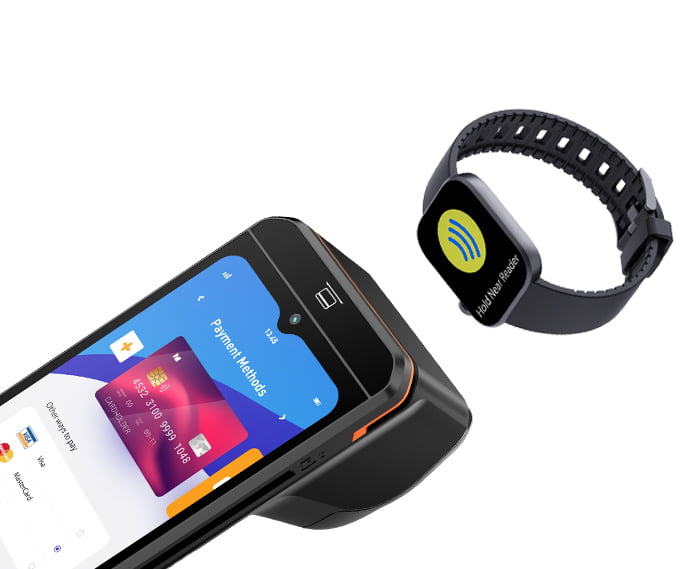

Digital Wallet / Apple Pay
NFC Contactless Pay

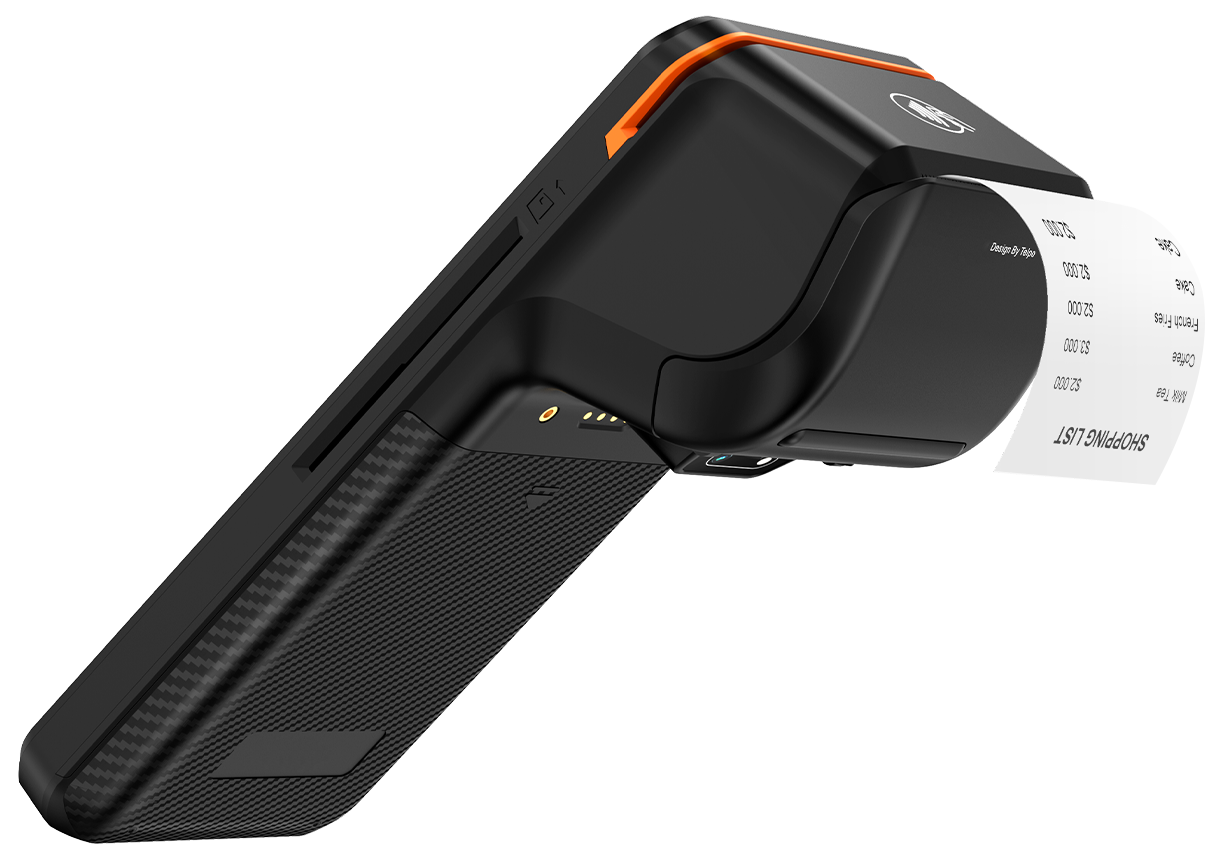

High-Speed,
Dust-Resistant Printing.
It cuts wait times sharply. Receipts print at a swift 80mm/s, and a specially designed downward paper exit reduces dust accumulation, so the printer keeps running in harsh environments.
- 58mm Paper Width
- 40mm Roll Diameter
- Fast printing

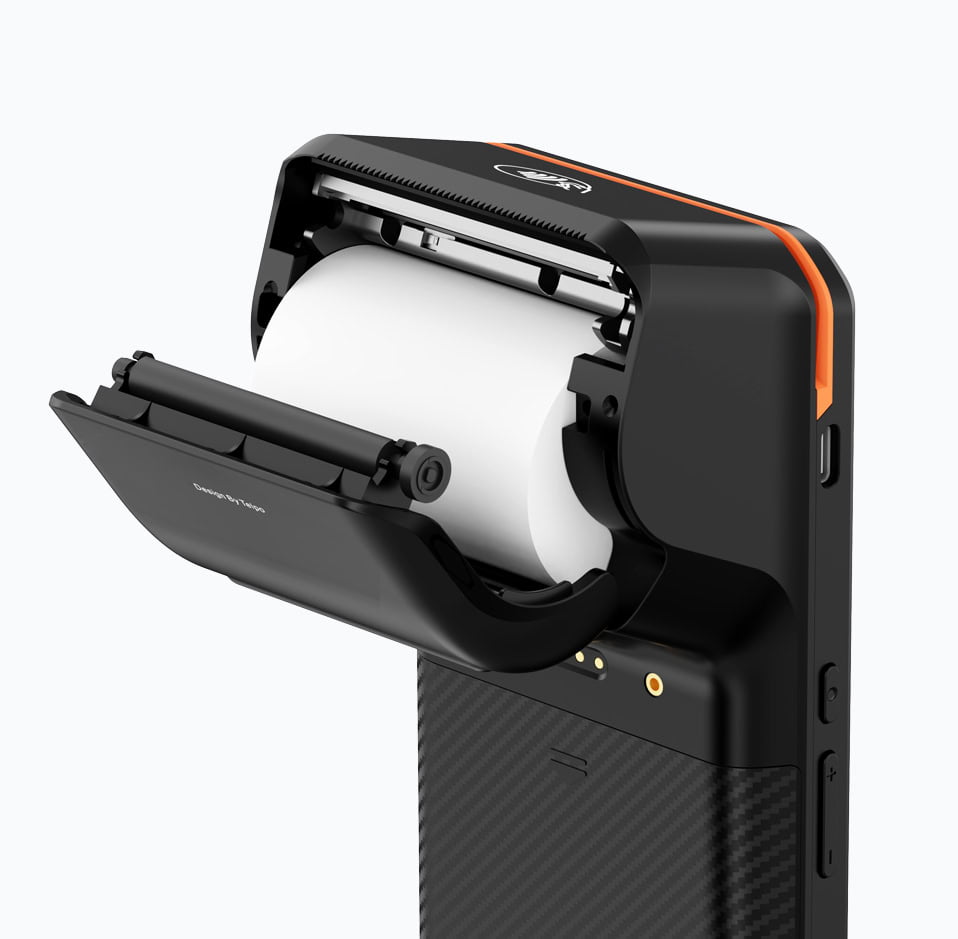

Dustproof Design of Printer.
The dustproof design lets the SN-H90 work outdoors and in high-pollution regions without dust build-up dragging down performance.
- Dust-resistant Movement
- Dustproof Design of Printer
- Downward Anti-Dust Exit Design

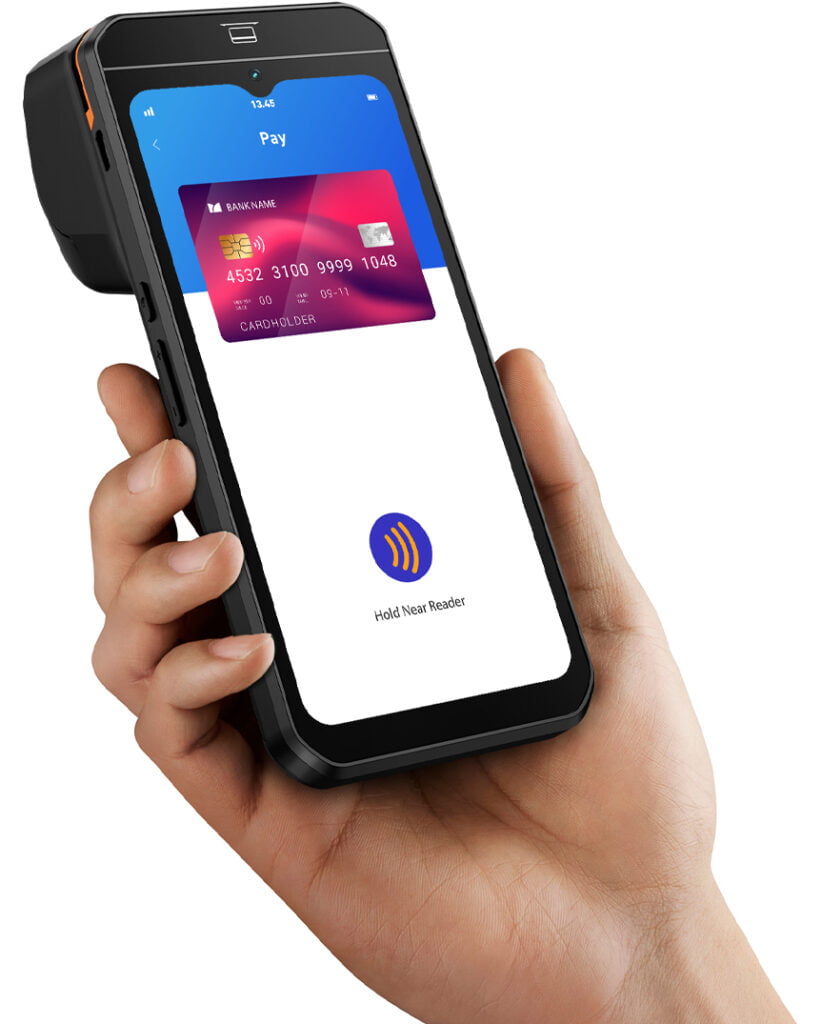

Built for the Longest Shifts.

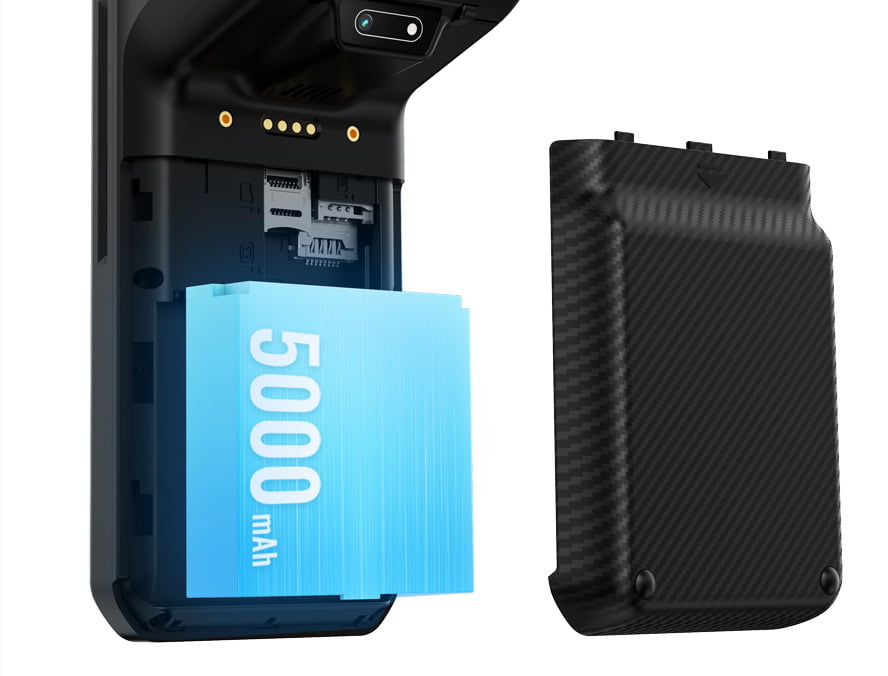

The 21.3mm ultra-thin ergonomic profile reduces operational fatigue. A removable 5000mAh battery guarantees uninterrupted service, and smart power-saving algorithms stretch your device uptime.
21.3mm
Ultra-thin ergonomic profile
5000mAh
Removable high-capacity battery
Endurance & Speed.
All in One Chassis.
We engineered the SN-H90 for continuous operation. A high-capacity battery sustains intensive tasks all day, while the integrated high-speed printer puts receipts in your customer's hand on the spot.
Uninterrupted Power
High-capacity lithium battery for all-day intensive tasks.
Integrated Printer
58mm thermal printing with anti-dust paper exit.
Scalable Hardware Modules.
We fulfill specific project requirements precisely. You configure biometric scanners or secondary displays to match the deployment.

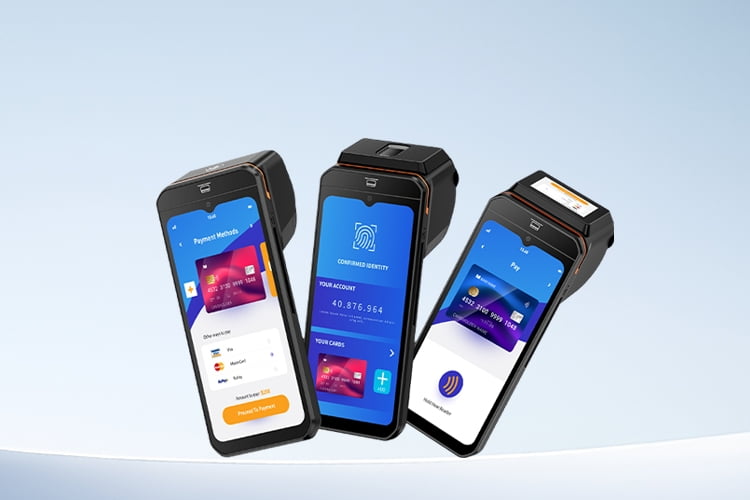

Standard
Versatile core configuration for everyday transactions.

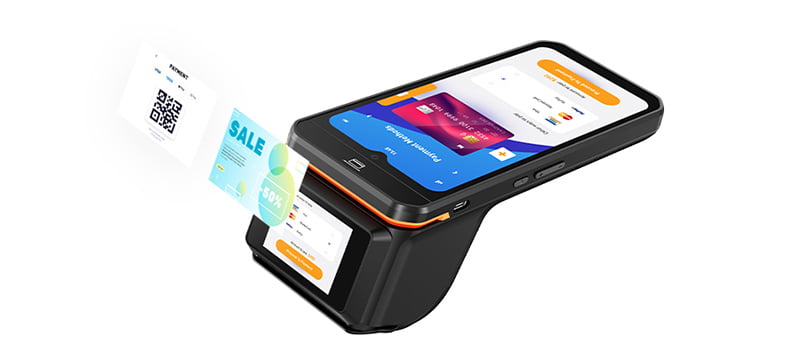

Dual Display
Customer-facing screen for better interaction and QR display.
NFC Tap to Pay
It carries a professional NFC engine for the retail and hospitality industry.

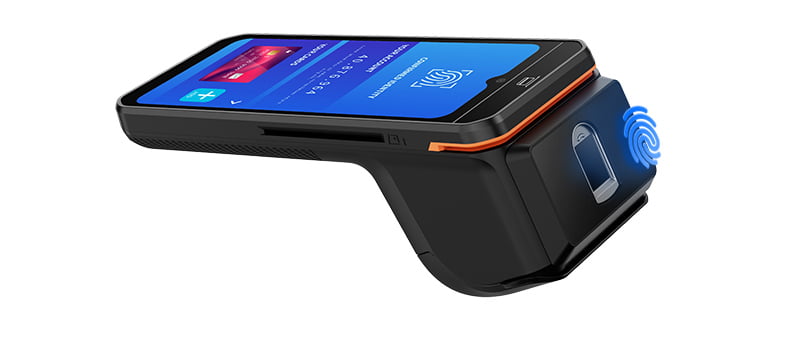

Biometric
Integrated fingerprint scanner for maximum security requirements.
SN-H90 Technical Specifications
OS
Android 14
Processor
Octa-Core 2.0GHz
Memory
2GB RAM, 16GB ROM
3GB RAM, 32GB ROM
4GB RAM,64GB ROM
(Optional: 8GB+128GB,Ext. TF card slot
Display
6.5", 720*1600
Printer (Built-in)
Paper width: 58mm, Φ40mm,80mm/s
Communications
LTE/WCDMA/GPRS/Wi-Fi/Bluetooth
Contactless Card Reader
ISO14443 Type A/B, Mifare
Smart Card Reader
ISO7816
Magnetic Card Reader
Track 1/2/3, bi-directional swipe, ISO7810, ISO7811, ISO7812, ISO7813
Fingerprint Scanner(Optional)
Support
Camera
Rear: 5M Pixel, auto focus (Barcode software decoding) Front: 2M Pixel, fixed focus
SIM Slots
2 SIMs
1 SIM, 1 eSIM(Optional)
Battery
7.6V/3500mAh, Li-ion
7.6V/5000mAh, Li-ion(Optional)
Audio/h5>
Digital Audio Speaker
Dimensions (mm)
194(L)*81(W)*60(H)
Certification
PCI PTS 6.X, EMV L1&L2, EMV Contactless L1, Paywave, Paypass, Amex, Rupay, Unionpay, Pure, Discover, JCB, TQM, CE, RoHS, NSICCS, WEEE
Which handheld fits the project?
One Android stack across six bodies, split by printer speed, panel size and how the unit travels. The two closest alternatives to this page:
Planning the deployment? See how these units work in the field, or read the buying and comparison material.
Frequently Asked Questions
What does the 6.5-inch 720 × 1600 panel change?
+
The taller ratio fits one more line of an order list than a 6-inch 720p panel, inside a 194 × 81 × 60 mm body. On a handheld that is the difference between scrolling mid-transaction and not.
How much memory and storage can I specify?
+
Three standard builds — 2GB/16GB, 3GB/32GB and 4GB/64GB — with 8GB/128GB as an option, and an external TF slot. Pick the build against the app, not the price list: a payment app plus a stock app wants the 4GB part.
Which cards does it read?
+
Contactless on ISO14443 Type A/B and Mifare, smart cards on ISO7816, and magstripe on tracks 1, 2 and 3 with bi-directional swipe across ISO 7810 to 7813. All three readers sit on the same unit.
Is there a fingerprint reader?
+
Yes, as an option rather than standard. That keeps the base price down for a market that does not need biometric attendance or operator login, and it is a build-time choice.
What about the battery, cameras and SIM?
+
A 7.6V 3500mAh pack, or 5000mAh as an option. Rear camera is 5MP with autofocus for barcode software decoding, front is 2MP fixed focus. Two SIM slots as standard, or one SIM plus eSIM as an option.
How fast does the printer run?
+
58 mm paper at 80 mm/s on a 40 mm roll — the same head speed and the same consumable as the SN-H50, so a fleet running both models stocks one paper size and one spare head.
