SN-H90PDA Enterprise PDA.
16.4 mm Thin, 6.5-Inch Screen.
A barcode camera, an under-display NFC reader and a 6.5-inch screen sit in one 16.4 mm body you carry onto the floor, so the till walks to the customer instead of the queue walking to the till.
Stock Check, Queue Bust, Pick List.
Three jobs cover most of the working day: counting what is on the shelf, taking payment where the customer is standing, and picking online orders off that same shelf. One device does all three.
Inventory Management
Staff scan a shelf and the count updates on the spot, so the gap between system stock and physical stock shows up before a customer finds it.
Queue Busting
Staff take payment at the shelf through SoftPOS, so a customer holding one item never joins the till queue, and the queue that does form moves faster.
Omnichannel Picking
Store stock doubles as fulfillment stock: the pick list runs on the same device, and every scan confirms the right item went into the bag.

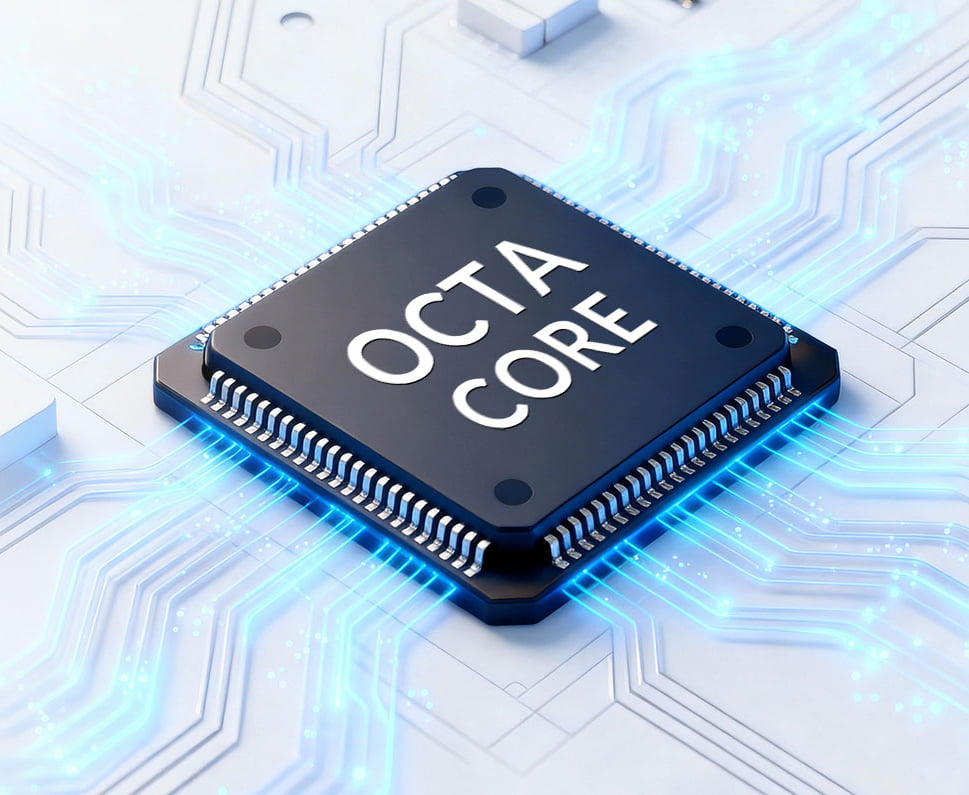

Octa-Core 2.0 GHz,
Android 14.
An octa-core 2.0 GHz processor runs Android 14. Memory comes in three steps: 2GB RAM with 16GB storage as standard, 3GB + 32GB and 4GB + 64GB as options. Moving from a stock count to a payment screen does not restart the app you were working in.
- Enough headroom to run the full retail app, not a cut-down one.
- API access for wiring the handset into your own back end.

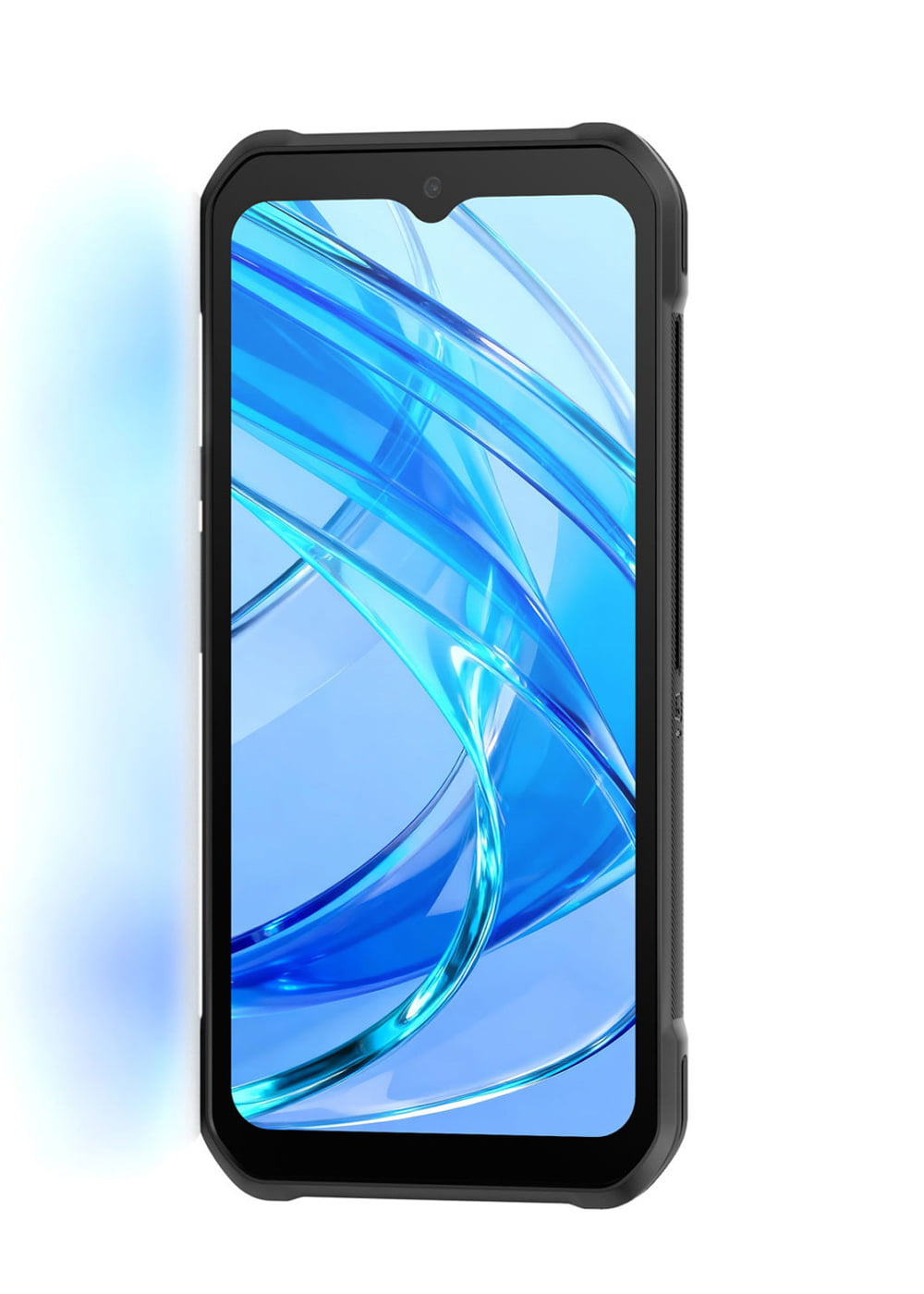

6.5 Inches, 83.3%
Screen-to-Body.
The panel runs 720 x 1600 at a 1750:1 contrast ratio, and the bezel is thin enough that 83.3% of the front is screen. That is what makes a dense SKU list readable at arm's length under shop lighting.

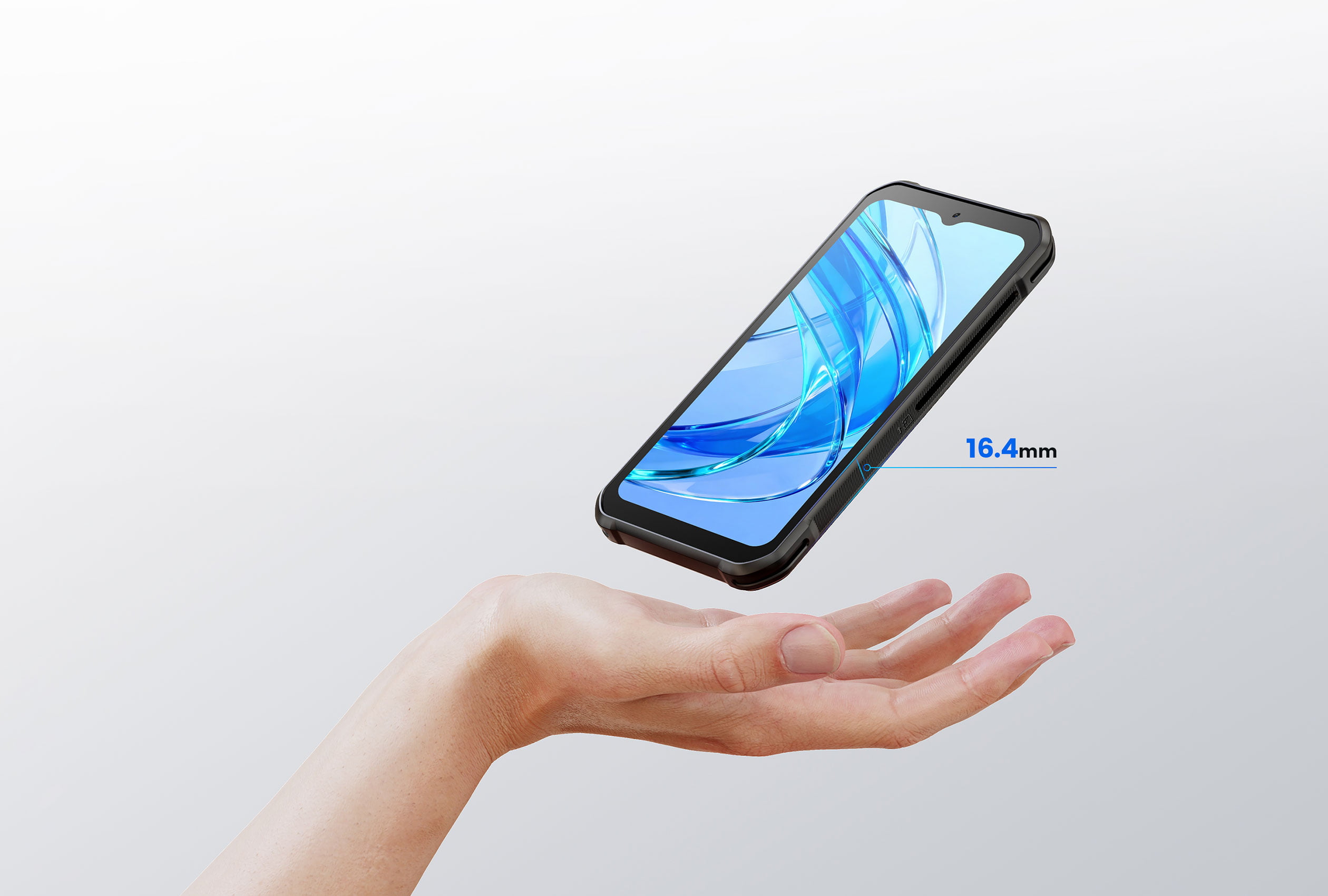

16.4 mm Thin,
264 g in Hand.
At 16.4 mm thick and 264 g, the body sits flat in the hand through a full shift. It still carries the IK07 impact rating and a 3500 mAh pack that comes out for a swap.
eSIM Provisioning, One Screw Type.
Roll devices out without opening them, and repair them with a single driver.
2 SIMs, or 1 SIM + eSIM.
Provision the carrier remotely instead of shipping SIM cards to every site. The tray holds two physical SIMs, or one SIM plus an eSIM on the optional build, so a device crosses a border without anyone opening it up.

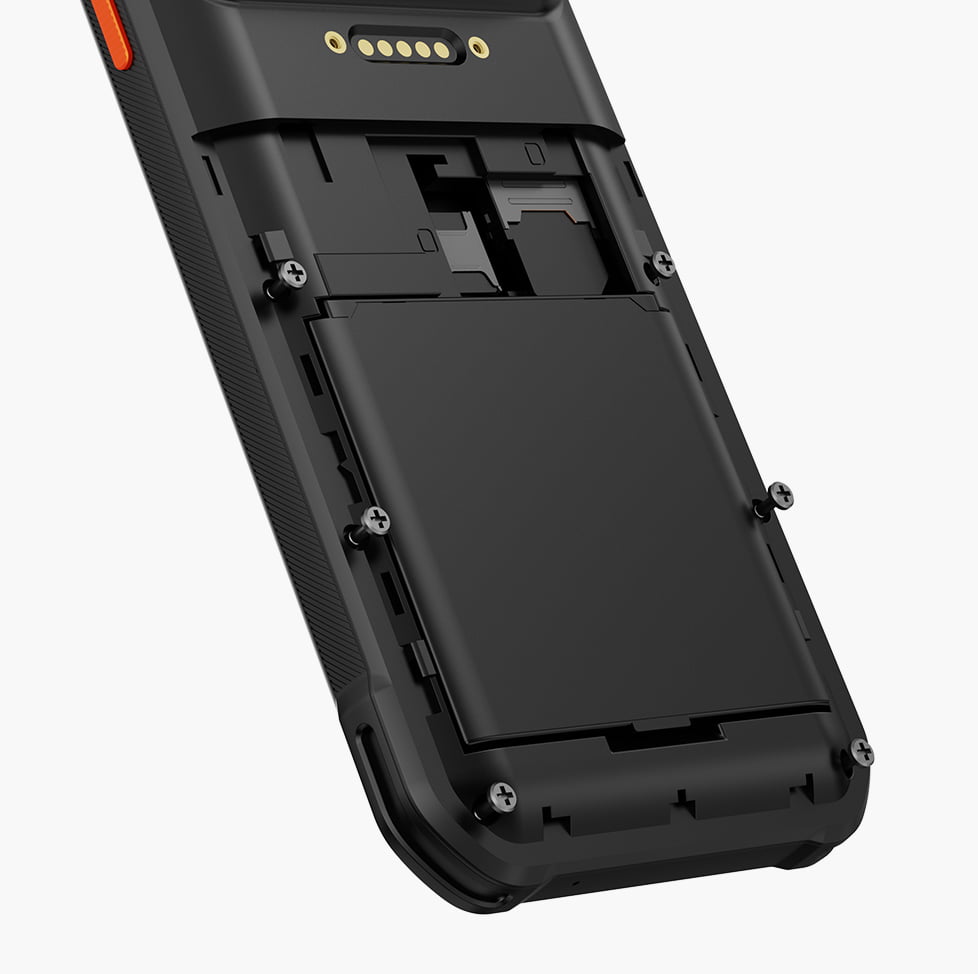

Unified Screw Architecture.
One screw type holds the whole chassis together, so a technician carries one driver and puts the unit back in service the same day. This applies to the model without the professional scan module; the scan-module build uses a second fastener.

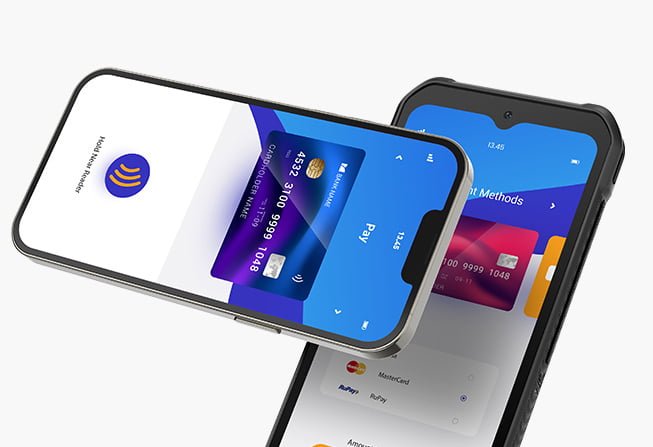

PCI PTS 6.X, EMV L1 and L2.
The reader holds PCI PTS 6.X, EMV L1 and L2, and EMV Contactless L1, with the scheme approvals listed in the specification table. Contactless runs on ISO14443 Type A/B and Mifare; chip cards on ISO7816.

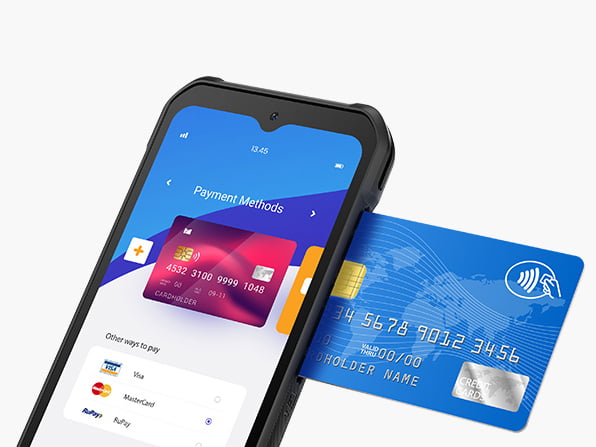

Smart Card

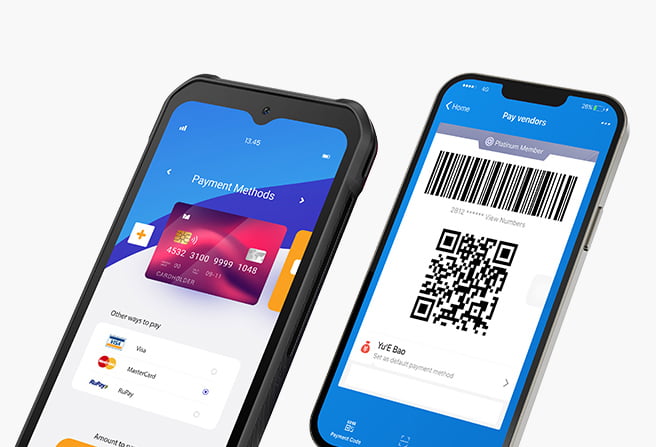

QR Code & Barcode
Digital Wallet / Apple Pay
Under-Display NFC
GMS Certified,

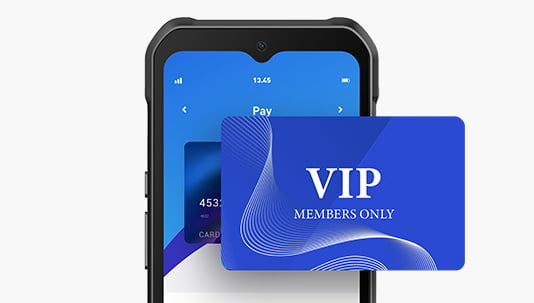

SoftPOS Ready.
GMS certification is native rather than side-loaded, so Google APIs, Play services and the Android enterprise deployment tools behave the way they do on a commercial handset.
The same hardware also supports SoftPOS, so the device accepts a tap-to-pay card without a separate reader attached.

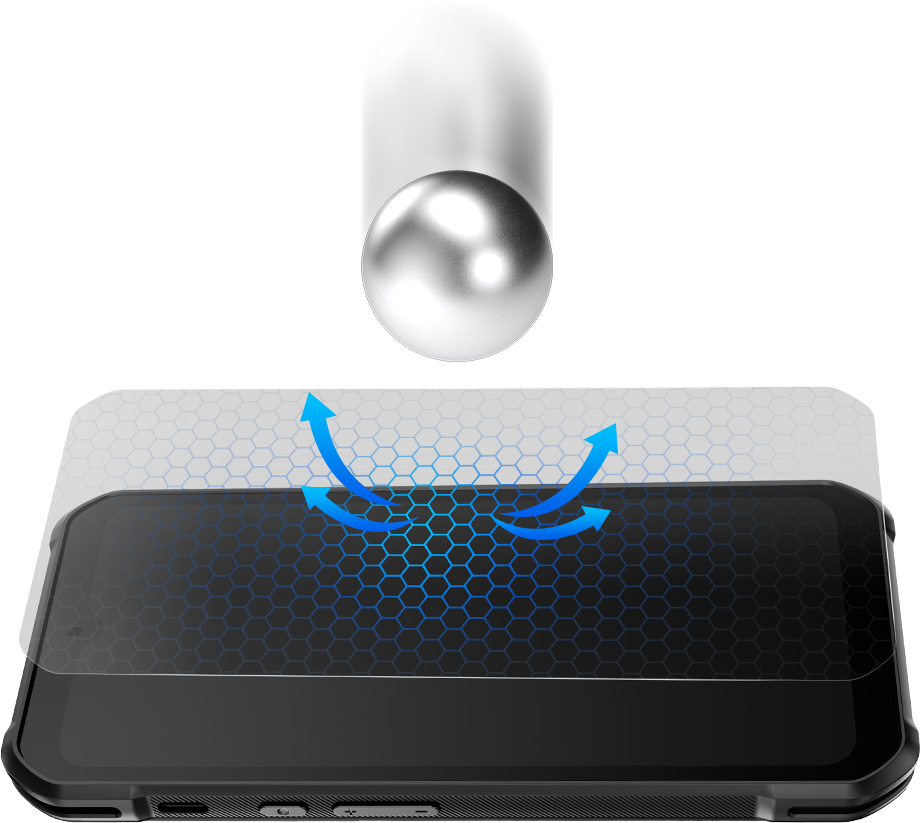

IK07 Screen, Removable Battery.
The display carries a laboratory-tested IK07 impact rating, and that is the number that matters when a handset goes off a trolley onto a warehouse floor. The 3.8V / 3500mAh pack is removable, so a shift continues on a spare instead of waiting out a charge cycle.

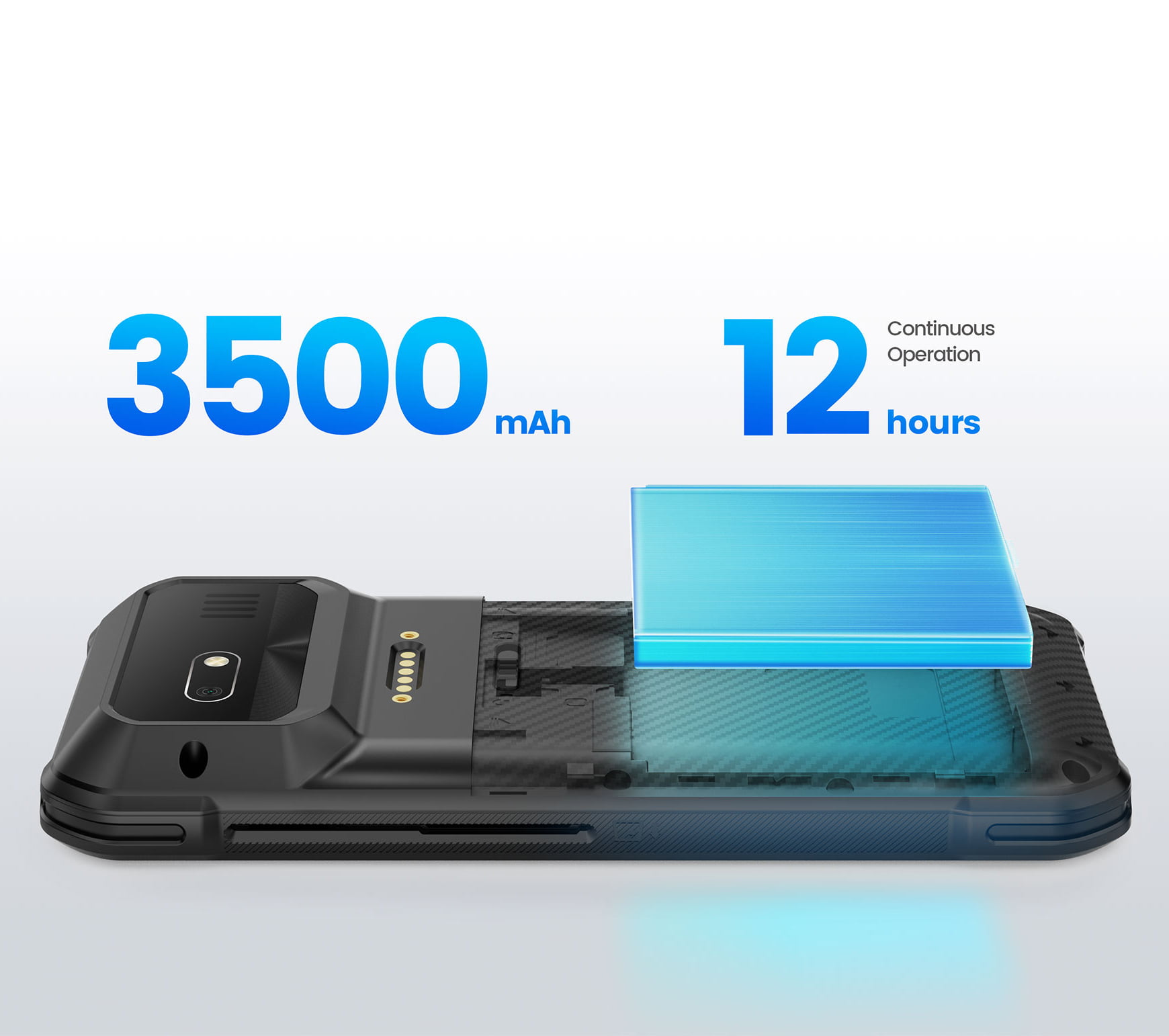

Up to 12 Hours on 3500 mAh.
A 3.8V 3500 mAh pack gives up to 12 hours of continuous operation with connectivity on and a normal transaction load, measured in the manufacturer lab. The pack comes out, so a spare goes in mid-shift instead of the device going onto a charger.

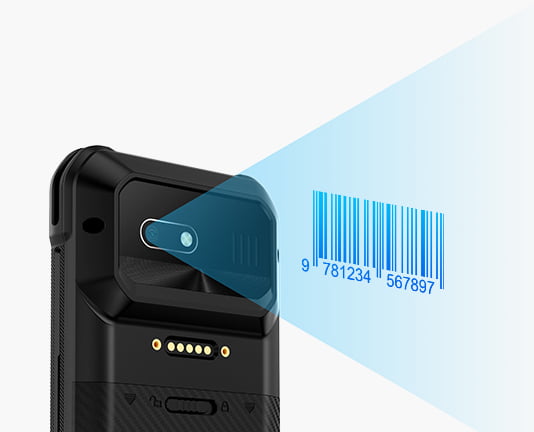

5 MP Rear, Optional Front and Scan Module.
The rear camera is 5 MP with autofocus and decodes barcodes in software. Add the optional 1D/2D scan module when a warehouse reads hundreds of labels an hour, or the optional front camera at 2 MP or 5 MP for facial recognition.
-

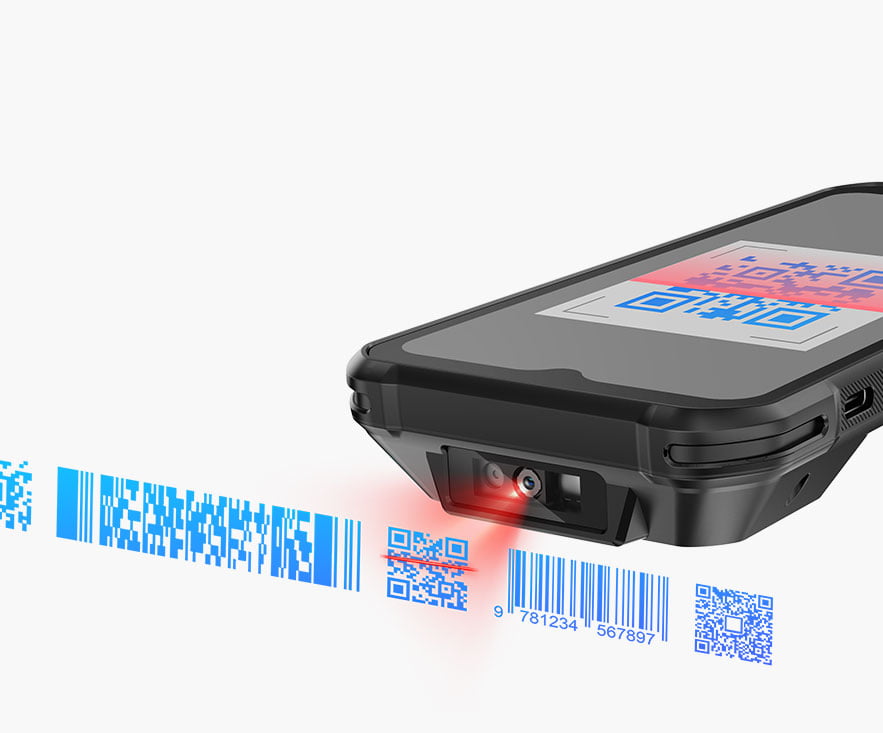

Optional 1D/2D Barcode Scanner
-
Fast Auto-focus Camera
-
Secure Facial Recognition
Color, Logo, Firmware, Packaging.
Our OEM/ODM team handles the casing color, the silk-screened logo, the boot animation, the apps we install at the factory, and the box the unit ships in.
Color & Logo
Casing color matched to your reference, logo silk-screened on the back.
Custom Firmware
Your boot animation and your apps, installed before the unit leaves the factory.
Packaging
Retail-ready boxes or plain bulk cartons, printed to your artwork.
SN-H90PDA Technical Specifications
Android 14
Octa-Core 2.0 GHz
2GB RAM + 16GB ROM (standard)
3GB + 32GB, 4GB + 64GB (optional)
6.5", 720 x 1600
83.3% screen-to-body
1750:1 contrast
ISO14443 Type A/B, Mifare
Under-display NFC
ISO7816
Optional 1D/2D scan module
Rear: 5MP autofocus (barcode software decoding)
Front: 2MP or 5MP fixed focus (optional)
2 SIMs
1 SIM + 1 eSIM (optional)
1
4G / 3G / 2G / Wi-Fi / Bluetooth
Built-in
1 x USB (Type-C)
PogoPin
Digital audio speaker
3.8V / 3500mAh, Li-ion, removable
5V / 2A
173.4 (L) x 80.7 (W) x 16.4 (H) mm
264 g
Operating: -5℃ ~ 45℃
Storage: -25℃ ~ 60℃
IK07 (laboratory tested)
Up to 12 hours continuous
(manufacturer lab data)
Mobile Device Management
PCI PTS 6.X, EMV L1&L2, EMV Contactless L1, Visa payWave, Mastercard PayPass, Amex, RuPay, UnionPay, Pure, Discover, JCB, TQM, CE, RoHS
Which handheld fits the project?
One Android stack across the range, split by panel size, printer and how the unit is carried. The two closest alternatives to this page:
Planning the deployment? See how these units are used in the field, or read the buying and comparison material.
SN-H90PDA FAQ
What are the core SN-H90PDA specifications?
+
Android 14 on an octa-core 2.0 GHz processor with a 6.5-inch 720 x 1600 display. The body measures 173.4 x 80.7 x 16.4 mm and weighs 264 g. Memory comes in three steps: 2GB RAM with 16GB storage as standard, and 3GB + 32GB or 4GB + 64GB as options.
How long does the battery last?
+
The pack is 3.8V 3500 mAh, and it is rated at up to 12 hours of continuous operation with connectivity active and a normal transaction load. That figure comes from the manufacturer lab, so treat it as a ceiling and test against your own usage. The pack is removable, so a shift can continue on a spare.
Is the screen tough enough for warehouse work?
+
The display carries a laboratory-tested IK07 impact rating, so a knock against a pallet or a drop off a trolley ends with a scuff rather than a replacement order. The 3500mAh pack is removable, so a flat battery costs a swap rather than a lost shift.
What is the scanning and camera setup?
+
A 5 MP autofocus rear camera with barcode software decoding is standard. The 1D/2D scan module is a factory option, and so is a front camera at 2 MP or 5 MP for facial recognition. Specify both with the order, because they change the model configuration.
Which payment methods does the reader accept?
+
Under-display NFC on ISO14443 Type A/B and Mifare, and contact chip cards on ISO7816. The reader carries PCI PTS 6.X, EMV L1 and L2, and EMV Contactless L1, with Visa payWave, Mastercard PayPass, Amex, RuPay, UnionPay, Discover and JCB approvals listed in the specification table.
Do we get Google services, and does it run SoftPOS?
+
Yes to both. GMS certification is native, so Google APIs, Play services and the Android enterprise deployment tools work normally. The under-display NFC reader also supports SoftPOS, which means the handset takes a tap-to-pay card without an extra reader.
Technical Datasheet
Hardware specifications and the integration API documentation for the SN-H90PDA.
Request SN-H90PDA
Pilot Units.
We ship pilot units for software validation before you commit to a volume. Tell us the memory configuration, whether you need the scan module, the front camera or the eSIM build, and the quantity, and our enterprise desk quotes against it.
