SN-P30 Foldable POS Terminal
Retail hardware specified for the work it actually does.
The SN-P30 hangs its 15-inch panel on a double spindle that turns through 340 degrees and folds flat for shipping. The body is aluminium and the board bolts straight to it through thermal pads, so heat leaves through the case and there is no fan to pull in dust. Your technician reaches the SSD and RAM through one screw. Need a complete setup? View all all-in-one POS terminals or add a cash drawer.
- MOQ 1 with 10–15 day lead time on stock models
- Spec sheets and SDK released before the order
- 24-month warranty, OEM branding available on volume orders
- SKU
- SQN-SN-P30-FOLDA
- Availability
- In Stock
- Lead Time
- 10-15 business days
- Warranty
- 24 months standard

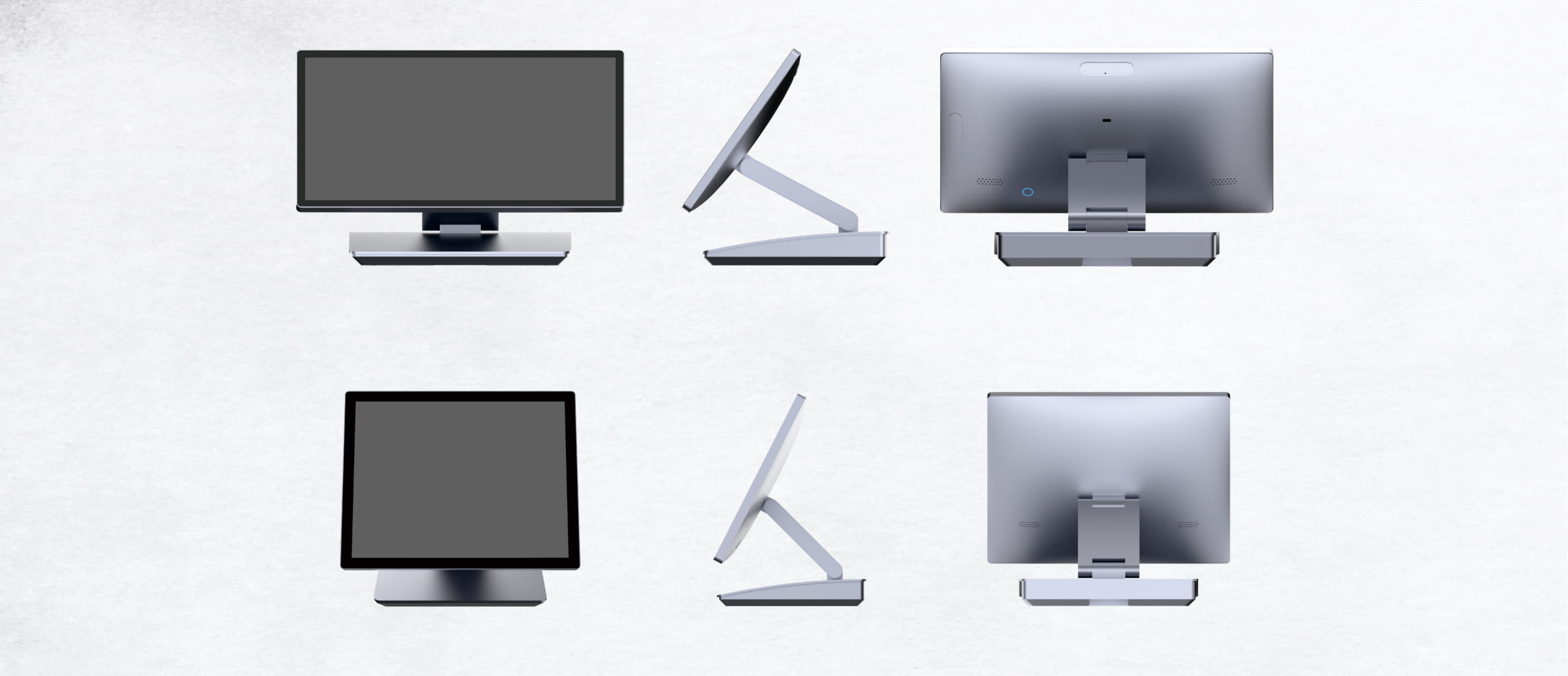

Zero Footprint. 340° Articulation.

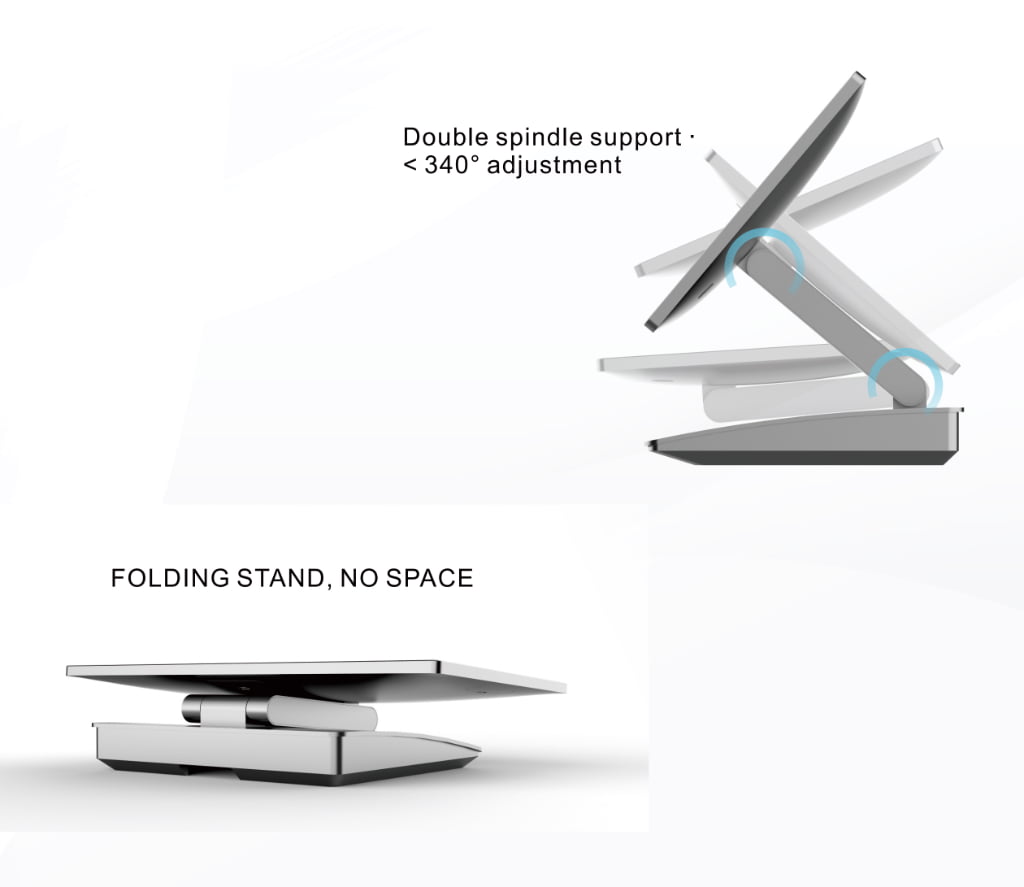

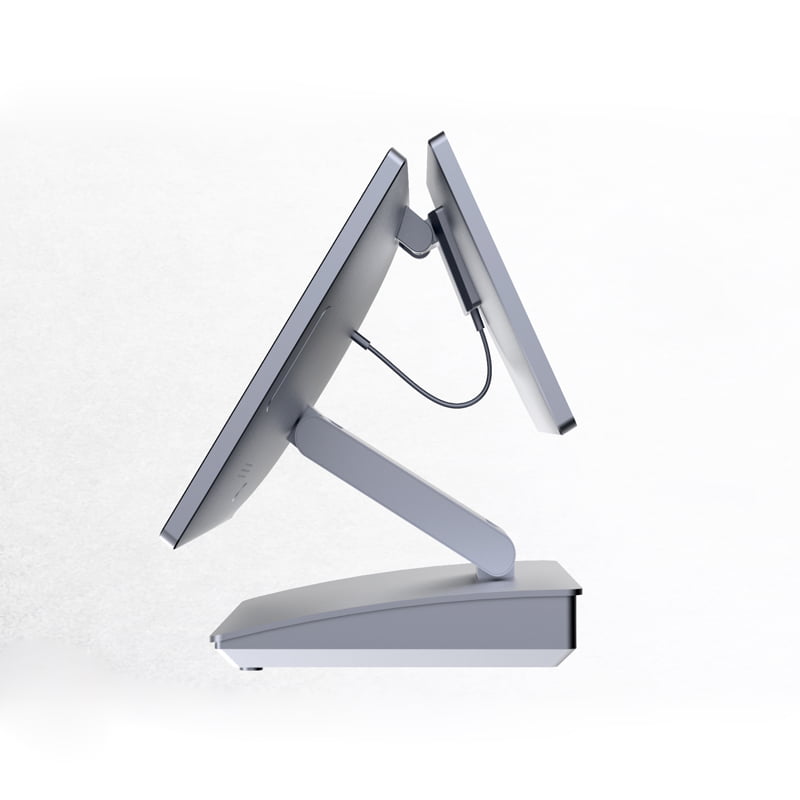

The screen rides a double spindle and turns through 340 degrees, so you set it for a standing cashier or a seated one. Folded, the terminal lies flat — that is the carton size you pay freight on and the shelf you store it on. You set the angle on site.

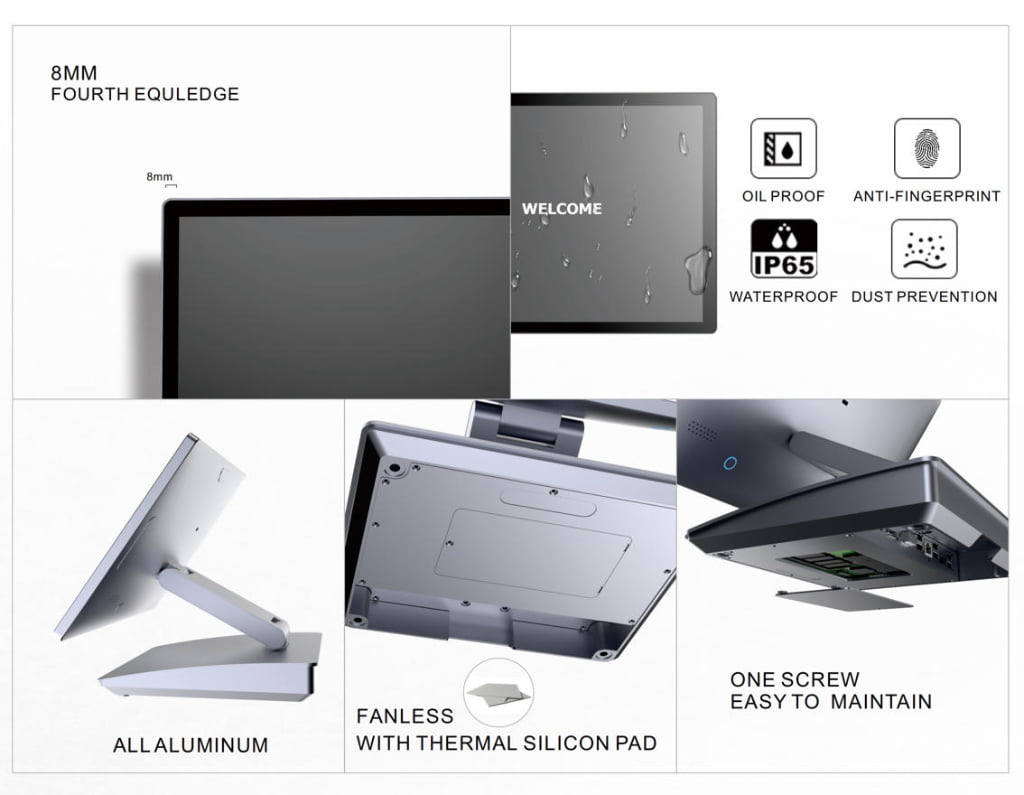

Fanless. The Chassis Is the Heatsink.
We build the body from aluminium and bolt the board straight to it through thermal pads, so heat leaves through the case instead of a fan. No fan means no intake to pull in flour, grease or dust, and nothing to seize after a year on a kitchen counter.
One Screw to the SSD and RAM
Your technician removes one screw, lifts the cover and reaches the SSD and RAM. A memory upgrade takes minutes instead of a full teardown, and the unit goes back on the counter the same shift. You keep one technician instead of shipping terminals back.
Technical Details
Full specifications, documentation, and customization options for engineering evaluation.
| Main Display | 15"/15.6" TFT LCD, 1920x1080 (FHD) / 1366x768/ 1024*768, 10-Point PCAP Touch screen |
|---|---|
| Customer Display | Optional 11.6" / 10.1" LCD (Touch / Non-touch) or VFD (2 Lines x 20 Characters) |
| Processor (CPU) | Intel® Celeron® J1900 / J6412/ Core™ i3 / Core™ i5 |
| Memory (RAM) | 4GB / 8GB / 16GB DDR4 RAM |
| Storage (ROM) | 64GB / 128GB / 256GB / 512GB mSATA SSD |
| Dimensions | W367*D209*H274mm |

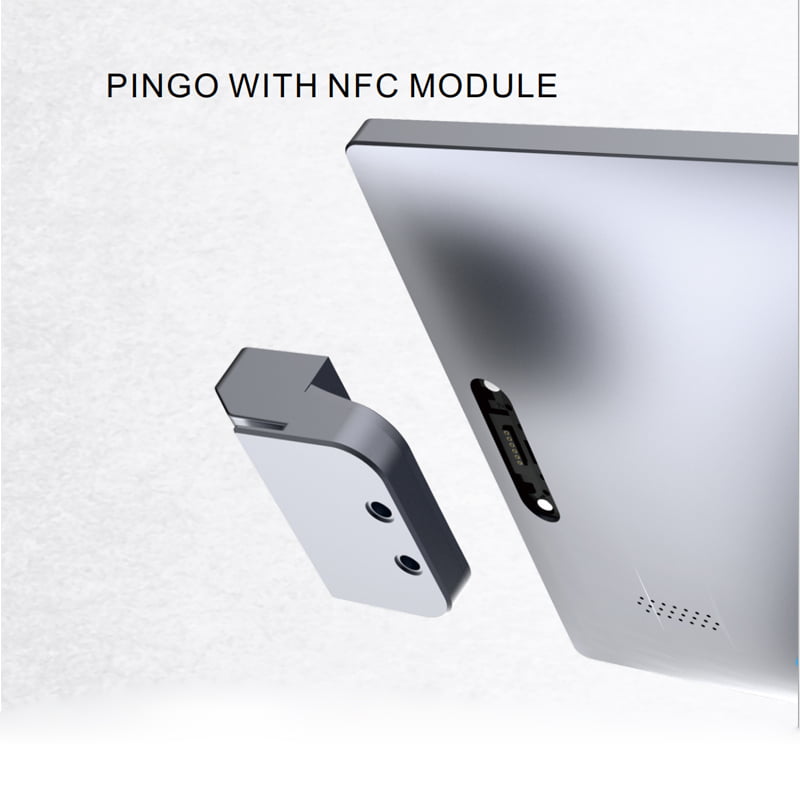

| NFC | Optional NFC module (factory-fitted), supports TYPE-A&B cards, FeliCa (F), ISO14443, 15693(M), 18092(NFCCIP-1). |
| Material | Aluminum Alloy Housing |
| Peripheral Options | MSR, iButton, IC / ID / NFC / RFID Card / Fingerprint Sensor / Camera |
| Barcode Scanner | Built-in 2D scanner. 2D symbologies: Aztec Code, Data Matrix Code, PDF417, Micro PDF417, QR Code, Micro QR Code. 1D symbologies: Codabar, Code 11, Code 128, UPC-A, UPC-E, Code 32, Code 39, Code 93, EAN-8, EAN-13, ISBN, ISSN, GS1 DataBar (RSS-14), ITF, Matrix 2 of 5. |
| 4G Module (Optional) | Embedded 4G Module, Micro SIM: LTE-FDD:B1/3/5/8 LTE-TDD:B34/38/39/40/41 |
| Power Supply | 1x 12V DC-in (110-240V) |
| Environment | Operating: 0°C to 40°C | Storage: -20°C to 60°C |
Frequently Asked Questions
Common inquiries from retailers, system integrators, and procurement teams.
How durable is the double spindle folding stand?
We cycle-test the hinge through tens of thousands of fold and rotate movements before a model ships, and the spindle is steel rather than a plastic detent. It holds its angle after years of daily adjustment instead of drooping.
Will the aluminum body get too hot without a cooling fan?
No, and that is the point of the design. The board sits against the aluminium case through thermal pads, so the case itself sheds the heat. With no fan there is no intake, which means kitchen grease and bakery flour never get inside.
Can the Type-C port be used to connect third-party displays?
Yes. The port runs DisplayPort alternate mode, so a third-party monitor that takes DP over USB-C works, as does our own secondary screen.
What components can be upgraded via the one-screw maintenance panel?
The SSD and the RAM. You remove one screw, lift the cover and both are in front of you — no teardown of the panel or the base.
Is it possible to request a custom logo on the aluminum chassis?
Yes. We laser-engrave or silkscreen your logo onto the aluminium body on volume orders, and we can match the anodised colour to your brand.
Request a Quote for
SN-P30 Foldable POS Terminal
Our engineering team comes back with volume pricing, OEM options and lead time within one business day.
- Response within 24 hours
- NDA available for enterprise projects
- Free developer sample for qualified integrators
