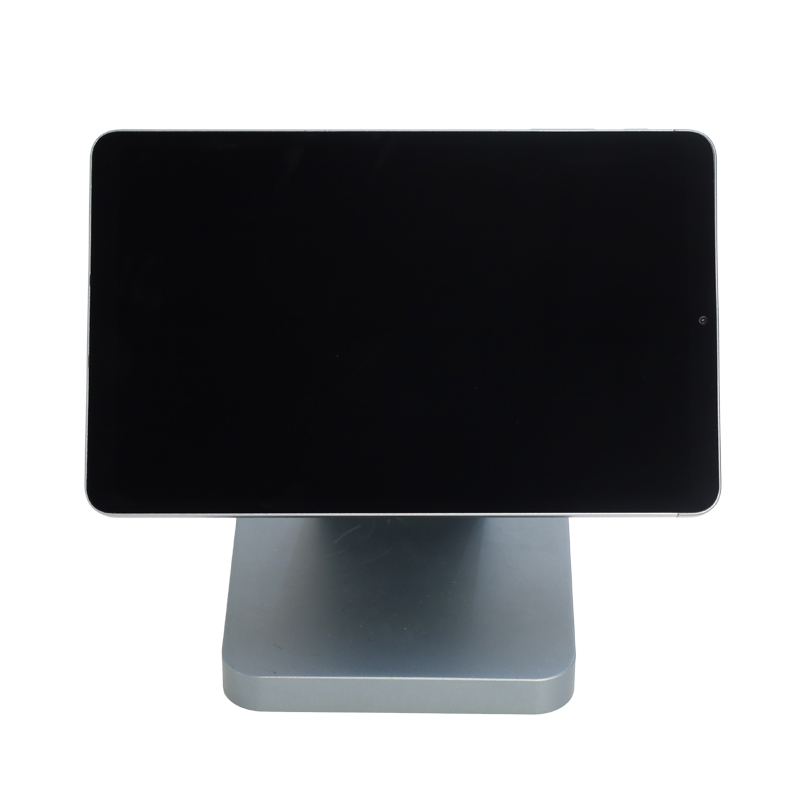

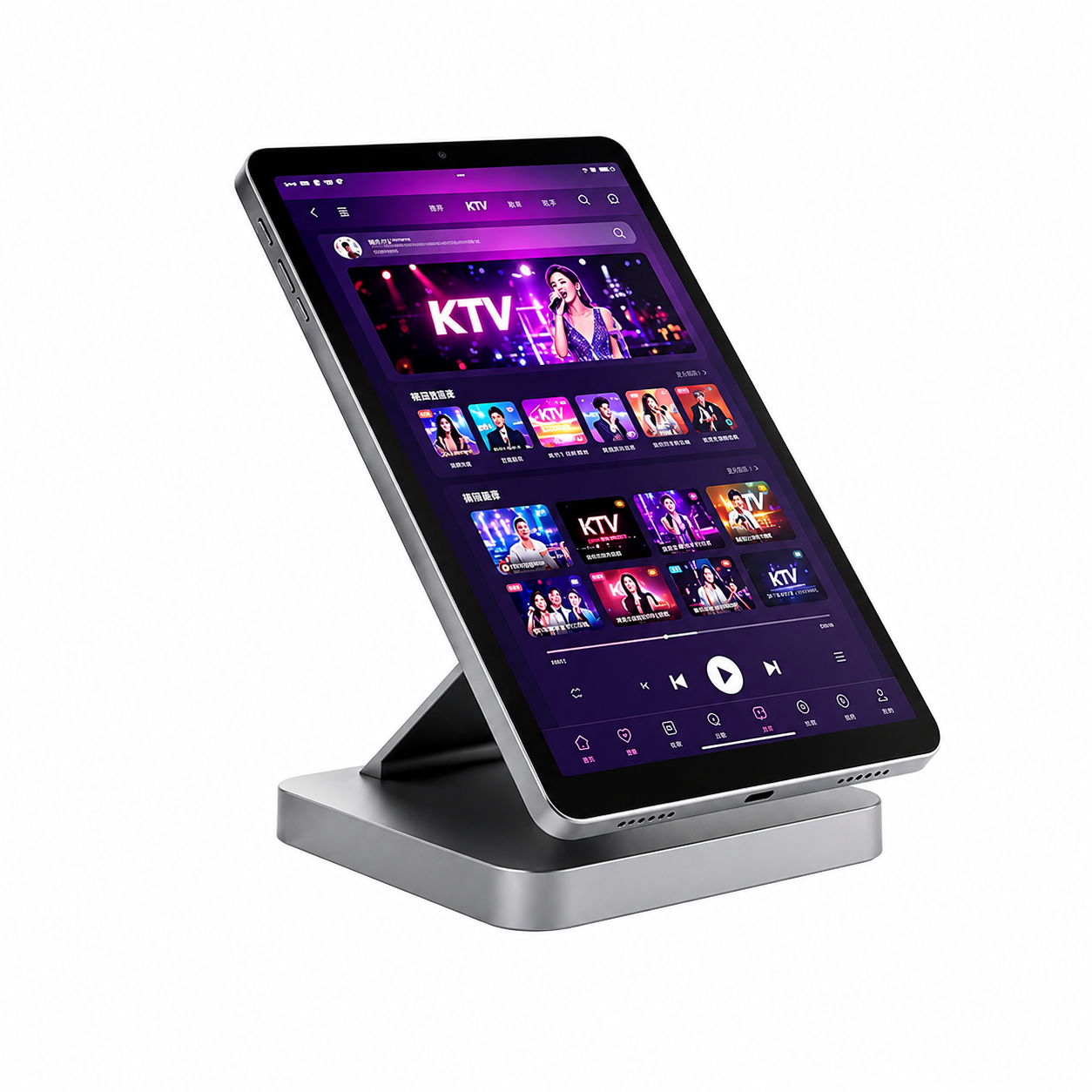

SN-T84 Magnetic Commercial Tablet.
Snap it to a dock, or carry it to the table.
The tablet is the product; the docks are accessories. Lift it off the 3-pin pogo dock and it runs on its own 5000 mAh pack, so the same unit takes an order at the table and then snaps back to charge at the counter. No cable to plug in, and no second device to buy.
Snap. Charge. Operate.
One tablet, two docks. The same unit is a countertop station on the desk dock, a flush wall panel on the 86-box mount, and a handheld the moment you lift it off.

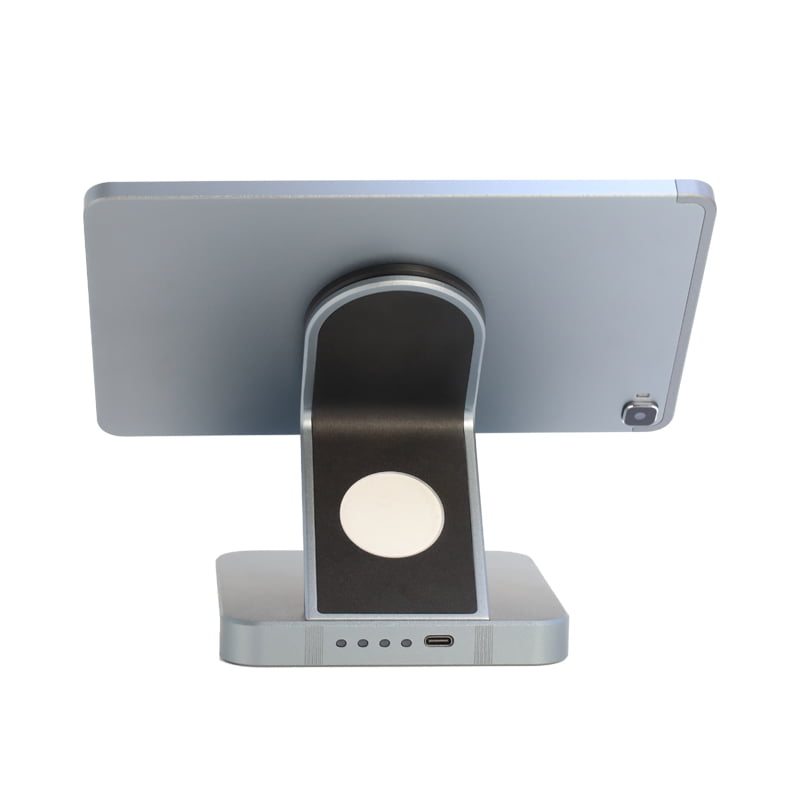

Desk Dock, 10000 mAh On Board.
The stand is aluminum alloy, and the optional base carries its own 10000 mAh pack, so the tablet tops up while it sits there and the whole station keeps working where there is no free socket. Lift the tablet off the 3-pin pogo interface and it leaves with the waiter.
- Aluminum alloy construction
- Optional 10000mAh integrated battery
- 3-pin pogo magnetic interface
Wall Dock, 86-Box and POE 48V.
The wall dock fits a standard 86-box cutout, the same opening a light switch uses, and takes either 220V AC or POE at 48V. On POE a single cable carries power and data, so a room controller, a door panel or a queue display sits flush in the wall instead of on a cable tray.
- Standard 86-box compatibility
- POE (48V) power delivery supported
- Flush-mounted profile
Octa-Core 2.3 GHz,
Android 13.
The chip is an octa-core Cortex-A53 at 2.3 GHz, paired with 3GB of LPDDR3 and 64GB of eMMC storage. That is enough for a full POS application running alongside a browser, a messaging client and the peripheral drivers your integration needs.
Tailored for
System Integrators.
TillNode runs the OEM/ODM work in-house: the boot logo, the NFC chipset, the Android build and the fleet rollout all come from the same factory that ships the units, so there is no third party between your spec sheet and the box.
Custom Boot Logos
Your logo is on screen from the first frame, and the boot animation is yours, not ours.
Locked Android ROMs
We lock the ROM to one app or to kiosk mode at firmware level, before the unit leaves the line.
NFC Module Integration
Tell us which SDK you integrate against and we fit the NFC chipset that matches it.
Bulk Deployment
Fleet rollout and the lifecycle behind it: spare units, revision control and one contact.
SN-T84 Specifications.
Every row below comes from the component list we build against, and QC checks each value on the line before a batch ships.
| Component | Specification |
|---|---|
| Display | 8.4" FHD (1200*1920) IPS, Incell 5-Point Touch |
| Processor | Octa-Core Cortex-A53 2.3GHz |
| Memory / Storage | 3GB LPDDR3 / 64GB EMMC |
| Operating System | Android 13 |
| Tablet Battery | 5000 mAh, Type-C (5V/2A) |
| Desktop Dock (Opt.) | Aluminum Alloy, 10000mAh Battery Built-in, 3-Pin Magnetic |
| Wall Dock (Opt.) | Plastic, 86-Box Mount, 220V AC or POE (48V) Input |
| Cameras | Front 5MP + Rear 8MP |
| Connectivity | Wi-Fi 2.4G/5G, Bluetooth 4.2, GPS |
| Expansion | NFC (Optional External), TF Card, OTG Supported |
| Weight | Tablet 330 g, dock 543 g |
Which POS tablet fits the project?
Same Android stack and magnetic docking family, different panel and I/O. The two closest alternatives to this page:
Planning the deployment? See how these units are used in the field, or read the buying and comparison material.
SN-T84 FAQ
What is the difference between the desk dock and the wall dock?
+
The desk dock is aluminum alloy with a 10000 mAh battery built in, and the tablet couples to it through a 3-pin magnetic pogo interface, so it lifts off with one hand. The wall dock is plastic, mounts in a standard 86-box cutout and takes 220V AC or POE at 48V. Both are optional: the tablet works as a plain handheld without either.
How long does the battery last?
+
The tablet pack is 5000 mAh and charges over USB Type-C at 5V/2A, and the desk dock adds 10000 mAh on the counter. We do not publish an hours figure, because runtime follows screen brightness and radio use; ask us for the discharge report on your configuration instead of planning to a headline number.
Which Android version does it run, and can you lock it down?
+
Android 13. We can lock the ROM at firmware level for kiosk mode or a single-app deployment, and set your own boot logo and animation while we are in there.
How much does it weigh?
+
The tablet is 330 g and the desk dock adds 543 g, so a countertop station comes to 873 g. That is light enough to carry from a bar top to a patio table between orders.
Can the wall dock run on POE alone?
+
Yes. The wall dock accepts POE at 48V or 220V AC. On POE one cable carries both power and data, which is what makes a flush wall panel practical where there is no socket near the spot.
What cameras and expansion does it offer?
+
Front 5 MP and rear 8 MP, which covers QR and barcode capture in software plus photo capture for proof of delivery. Expansion covers NFC as an external option, a TF card slot and OTG.
Tell Us Your
Rollout.
Send the quantity, the docking configuration and the OEM requirements, and the quote comes back with the SDK you need to validate it.
