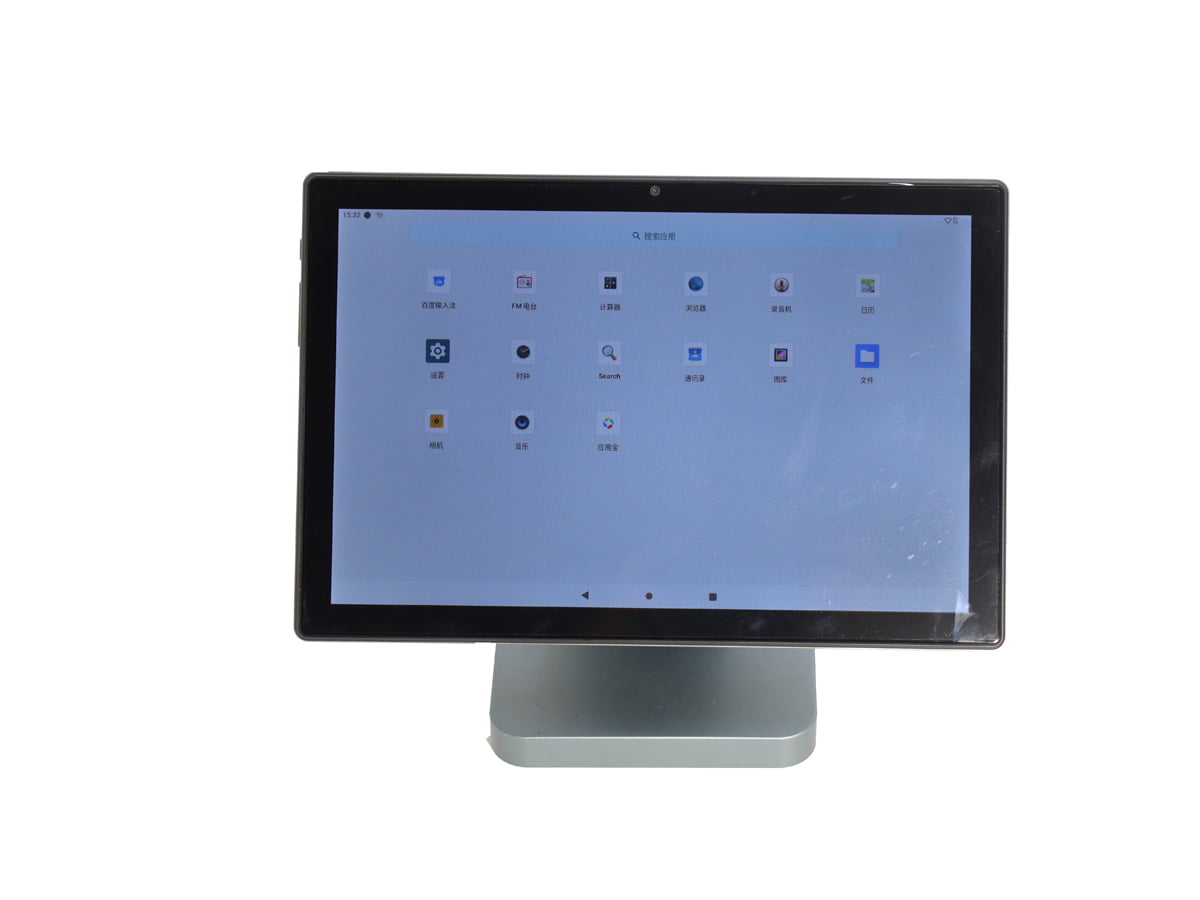

SN-R10 10.1″ Magnetic Android Display
A 10.1-inch screen that lifts off the dock.
The SN-R10 is a 10.1-inch panel on a magnetic dock: it charges while it sits there and lifts off into your hand when the job moves. Control panels, digital menus and room-booking screens all run on the same unit, so one spare covers several deployments.
Two Ways to Mount It.
Same Panel in Both.
Uninterrupted Counter Service.

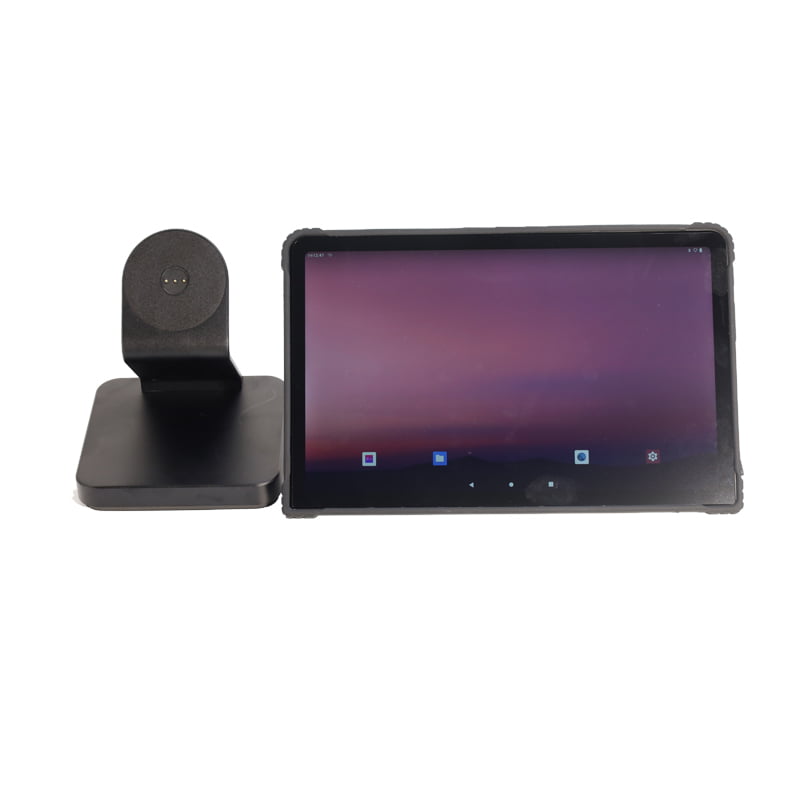

The dock is a machined aluminum base, and an optional 10,000 mAh battery sits inside it. The screen lifts off the 3-pin pogo contact with one hand, so staff can carry it to the table and put it back without hunting for a cable.
- Aluminum industrial-grade base
- 10,000mAh optional battery
- 3-pin pogo magnetic contact
Flush-Mounted Control.
The wall bracket fits a standard 86-box cut-out, and it takes either 220 V AC or 48 V PoE. One network cable carries both power and data, so the wall stays clean and the installer does not need a socket behind the panel.
- Standard 86-box compatible
- POE 48V or 220V AC input
- Zero-cable clean install
One App, One Job, All Day.
We removed the consumer extras and kept the parts that fail: no fan, no expandable storage, no unused sensors. What is left runs one app continuously, which is what a counter or a meeting-room panel actually does.
Display
A 10.1-inch 800 × 1280 G+G touch panel, so it reads from the side as well as head-on.
Processing
An octa-core ARM-A53 (1.5 GHz / 1.0 GHz) runs Android 9 with 2 GB LPDDR3 and 16 GB eMMC.
Power
A 5,000 mAh battery inside the tablet charges over Type-C at 5 V / 2 A.
Connectivity
Wi-Fi 4 (a/b/g/n), Bluetooth 4.0 and GPS keep the unit synced without a dongle.
Your Brand.
Your Software.
Locked In.
We build the unit to your brand: your boot animation, your launcher, and Android locked into kiosk mode so nobody reaches the settings menu. Cameras and vibration modules stay off the bill of materials unless your project needs them.
Kiosk Lockdown
The OS runs one app and blocks the settings menu.
Boot Branding
Your boot animation and launcher, not ours.
Modular Hardware
Cameras and sensors only when the project calls for them.
Cost Optimized
You pay for the parts your deployment uses.
SN-R10 Specifications
| Component | Specification |
|---|---|
| Display | 10.1" (800×1280) G+G Touch Screen |
| Processor | Octa-Core ARM-A53 (1.5GHz / 1.0GHz) |
| Memory / Storage | 2GB LPDDR3 / 16GB EMMC |
| Operating System | Android 9 |
| Tablet Battery | 5,000 mAh, Type-C (5V/2A) |
| Cameras | Optional (Not included by default) |
| Desktop Dock (Optional) | Aluminum Base, 10,000mAh Battery Built-in, Magnetic |
| Wall Dock (Optional) | Plastic 86-Box Mount, 220V AC or POE (48V) Input |
| Connectivity | Wi-Fi 4 (a/b/g/n), Bluetooth 4.0, GPS |
| Dimensions / Weight | Tablet: 242.4 × 161.2 × 8.7 mm / 524g |
Which POS tablet fits the project?
Same Android stack and magnetic docking family, different panel and I/O. The two closest alternatives to this page:
Planning the deployment? See how these units are used in the field, or read the buying and comparison material.
SN-R10 Display FAQ.
What are the screen and processor specs?
+
A 10.1-inch 800 x 1280 G+G touch panel driven by an octa-core ARM-A53 at 1.5 GHz / 1.0 GHz, on Android 9 with 2 GB LPDDR3 and 16 GB eMMC.
How long does it run off the dock?
+
The tablet carries a 5,000 mAh battery charged over Type-C at 5 V / 2 A. The optional desktop dock adds a 10,000 mAh pack, so the panel keeps working while it is carried around the floor. Tell us your shift length and we will confirm the runtime for your app.
What is the difference between the desktop dock and the wall dock?
+
The desktop dock is an aluminum base with the 10,000 mAh battery built in, meant for a counter. The wall dock is a plastic 86-box mount fed by 220 V AC or 48 V PoE, meant to sit flush in a wall. The screen is the same part in both.
Does it come with a camera?
+
No, cameras are optional and not included by default. If your app needs one for check-in, queue management or identity, specify it at order stage because it changes the front bezel.
What are the dimensions and the weight?
+
The tablet is 242.4 x 161.2 x 8.7 mm at 524 g. The dock adds its own footprint, so measure your counter or your 86-box cut-out before ordering rather than after.
Can we lock it to our own app and branding?
+
Yes. Android runs in kiosk mode with a single app and no access to the settings menu, and we replace the boot animation and launcher with yours. Send the APK and the logo files and we will quote the customization before production.
Quote the SN-R10.
Order direct from the factory, with technical support and evaluation units. Tell us which dock you need, desktop or wall, and the quantity, and we quote both together.
