SN-U10: The 10.1" Performance Workhorse.
Familiar form factor. Unprecedented power.
Heavy-duty processing capabilities sit inside our versatile 10.1-inch magnetic ecosystem. The SN-U10 runs an advanced Octa-Core architecture and Android 13. It drives resource-intensive POS applications and high-definition digital signage without strain, and it brings uncompromising speed to your operations.
Architecture.
The SN-U10 eliminates lag and downtime. Our team completely re-engineered the internal hardware to handle the most demanding commercial software.
Advanced CPU
A powerful Octa-Core processor (4x Cortex-A73 + 4x Cortex-A53) runs intelligent load balancing.
Expanded Memory
Smooth multitasking comes from 4GB LPDDR3 RAM and 64GB EMMC storage.
Modern OS
Android 13 brings enhanced enterprise security and lifecycle support.
Dual-Band Connectivity
2.4G/5G Wi-Fi and Bluetooth 4.2 maintain high-speed, interference-free data transmission.
Deploy Anywhere.
Charge.
Cordless High-Volume Checkout.

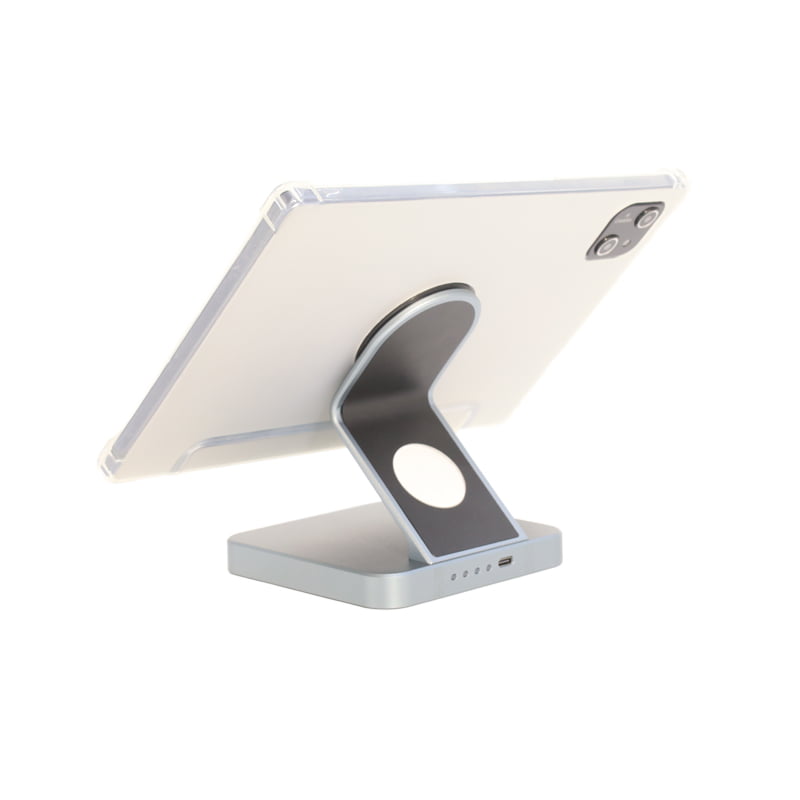

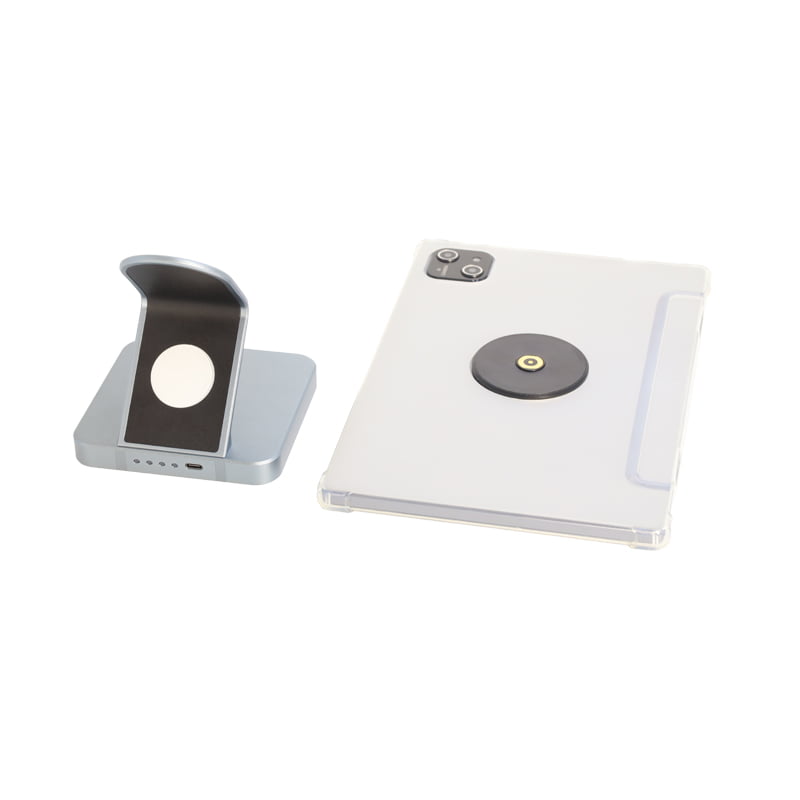

An aluminum alloy stand holds the tablet securely. An optional 10000mAh battery sits inside. High-speed transactions run without cable restrictions. The 3-pin pogo interface releases the device for VIP tableside service.
POE Wall Integration.
Our wall bracket manages complex smart home or hotel room systems without effort. It takes standard 86-box mounting and Power over Ethernet (POE 48V), and it builds a high-performance, flush-mounted digital hub.
Engineered for
System Integrators.
Our purpose-built solutions replace generic consumer tablets. TillNode provides deep OS modifications, locks devices into Kiosk Mode, embeds custom boot animations, and brands the entire hardware ecosystem as your own.
Kiosk Mode Lockdown
Kiosk Mode restricts each device to a single approved application, blocking unauthorized access.
Custom Boot & Branding
We embed boot animations, logos and UI themes at the factory level.
SDK & API Support
Your software team gets direct hardware control, which opens the door to deep integration.
Firmware Customization
We tailor MDM protocols, security policies and system services to your deployment.

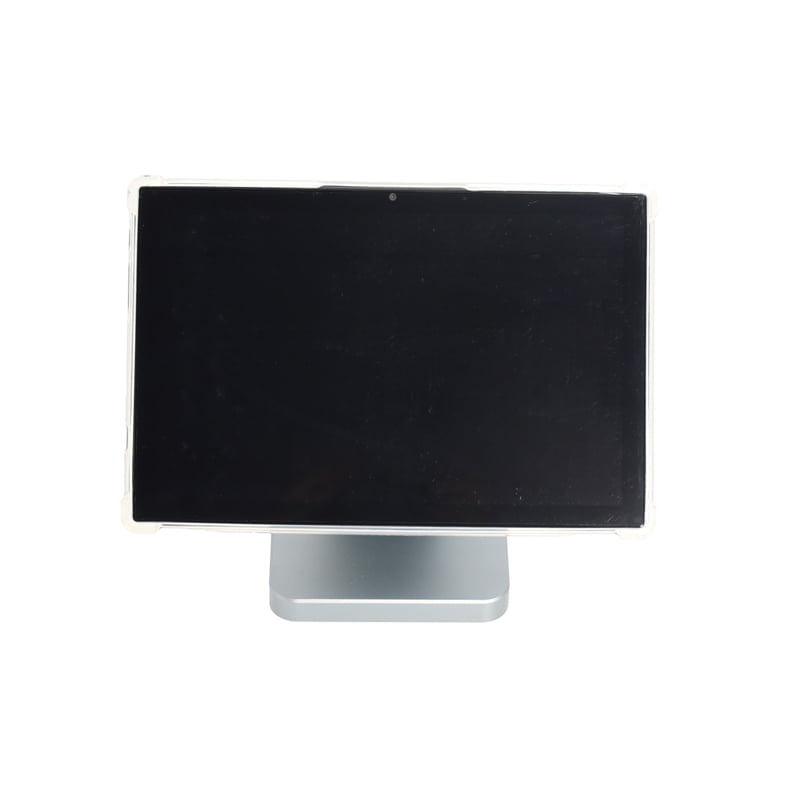

SN-U10 10.1″ High-Performance Magnetic Tablet Specifications
- Display
- 10.1" (800*1280) G+G Touch Screen
- Processor
- Octa-Core (4x Cortex-A73 + 4x Cortex-A53) 2.0GHz
- Memory / Storage
- 4GB LPDDR3 / 64GB EMMC
- Operating System
- Android 13
- Tablet Battery
- 5000 mAh, Type-C (5V/2A)
- Cameras
- Front 2MP + Rear 5MP
- Connectivity
- Wi-Fi 2.4G/5GHZ (a/b/g/n/ac), Bluetooth 4.2, GPS
- Desktop Dock (Opt.)
- Aluminum Base, 10000mAh Battery Built-in
- Wall Dock (Opt.)
- Plastic 86-Box Mount, 220V AC or POE (48V) Input
- Dimensions / Weight
- Tablet: 242.4*161.2*8.7mm / 552g
Which POS tablet fits the project?
Same Android stack and magnetic docking family, different panel and I/O. The two closest alternatives to this page:
Planning the deployment? See how these units work in the field, or read the buying and comparison material.
SN-U10 Magnetic Tablet FAQ
6 questions buyers ask before ordering.
Where does the U10 sit between the R18 and the U1095?
+
Same 10.1-inch class as the R10, with a different panel and chip: 800 × 1280 G+G touch, a four-A73 plus four-A53 cluster at 2.0 GHz, 4GB RAM and Android 13, at 552 g and 8.7 mm. The R18 buys a sharper 1200 × 2000 panel; the U1095 a larger 10.95-inch one in a thinner body.
What does the A73 plus A53 layout give me?
+
Four A73 cores handle the bursty work — page transitions, a scan, a screen render — and four A53 cores carry the idle background. That split is what keeps the response sharp without draining the battery between transactions.
Is the touch panel suitable for gloves?
+
It is a G+G capacitive panel: glass over glass, so the surface resists scratches better than a film stack. Capacitive panels need a matching glove type, and this model does not list a resistive option, so tell us the working conditions and we will confirm the fit before you order.
How much battery does a shift need?
+
5,000 mAh in the tablet, charged over Type-C at 5V/2A, plus a 10,000 mAh battery in the optional aluminum desktop dock. At a fixed station the dock effectively doubles the capacity available without a cable across the counter.
Is there a wired network port?
+
The tablet is wireless only: Wi-Fi 2.4G/5GHz on a/b/g/n/ac, Bluetooth 4.2 and GPS. Wired networking comes from the dock or the wall mount rather than the tablet, so confirm the I/O you need on the dock when you specify the build.
What are the dimensions and the mounting options?
+
242.4 × 161.2 × 8.7 mm at 552 g. The optional wall dock is a plastic 86-box mount fed by 220V AC or 48V POE, and the desktop dock is an aluminum base with the battery built in.
Something not covered here? Ask our engineering team.
Upgrade Your Software's
Hardware Foundation.
Do not let outdated hardware throttle your applications. We offer bulk pricing, SDK support and rapid prototyping worldwide.
Volume-Based Pricing
We offer MOQ and tier discounts for system integrators.
Full SDK Access
We provide development kits and API documentation to your engineering team.
Rapid Prototyping
We dispatch evaluation samples worldwide within 5 business days.
Contact Our Engineers
Response within 24 hours. Technical consultation is complimentary.
