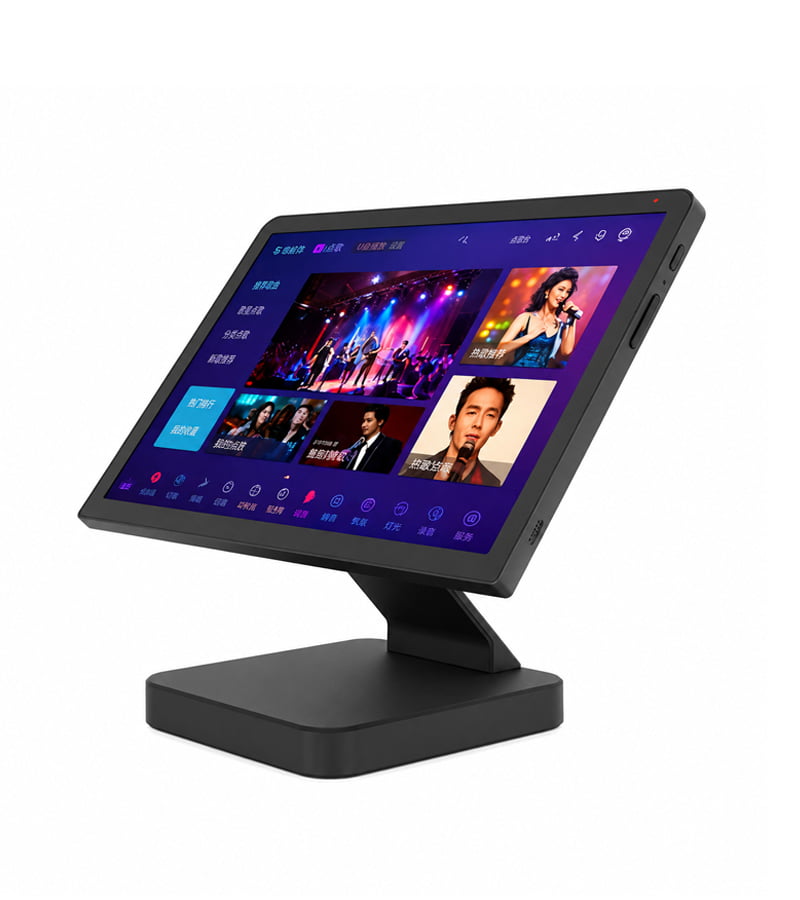

SN-R18: The Flagship Magnetic Hub.
Limitless connectivity. Immersive 2K display.
Our SN-R18 defines the commercial touchpoint. It pairs a massive 10.36-inch FHD display with an expansive docking ecosystem. Run it for high-volume checkout or luxury room control, and it delivers uncompromising performance.
Turns into a Desktop POS.

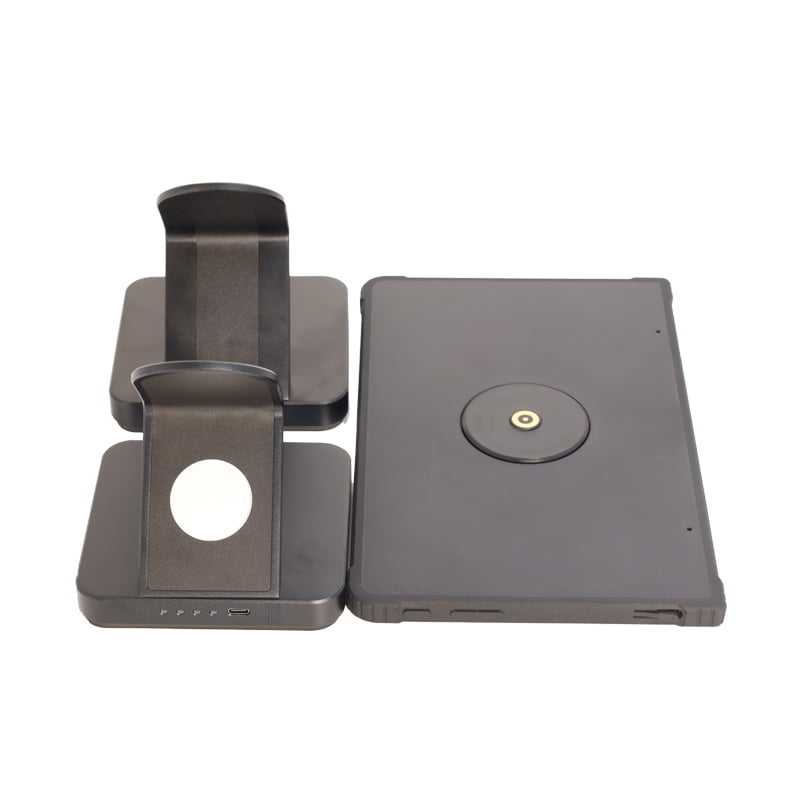

The SN-R18 elevates a simple mobile device into a comprehensive workstation. Our magnetic base carries optional RJ-45 Ethernet and Dual USB-A ports, so receipt printers and barcode scanners connect instantly. Zero-latency wired network stability keeps your critical software running. A 10000mAh battery sits inside the base and holds continuous power.
-
Optional RJ-45 Wired LANZero-drop network for mission-critical POS operations.
-
Dual USB-A Peripheral PortsInstant plug-and-play for printers, scanners, and cash drawers.
-
10000mAh Integrated BatteryAll-day continuous operation, engineered into the base.

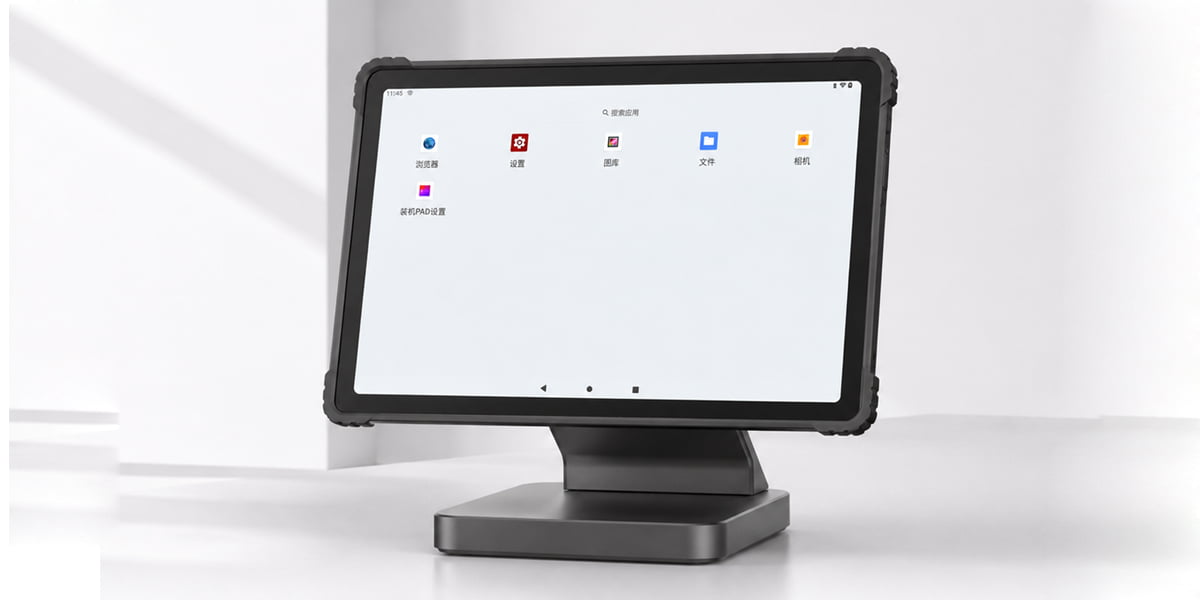

Engineered for the Enterprise.
The SN-R18 handles intensive multi-tasking without strain. Our engineering team builds on the latest architecture to future-proof your deployment.
Immersive Visuals
The SN-R18 brings a 10.36" (1200x2000) IPS Incell touch screen. You get vivid colors and sharp text.
Raw Power
An Octa-Core 2.3GHz processor and 3GB LPDDR3 RAM drive complex retail apps smoothly.
Modern OS
The native Android 13 platform delivers superior security and app compatibility.
Smart Facility Control.

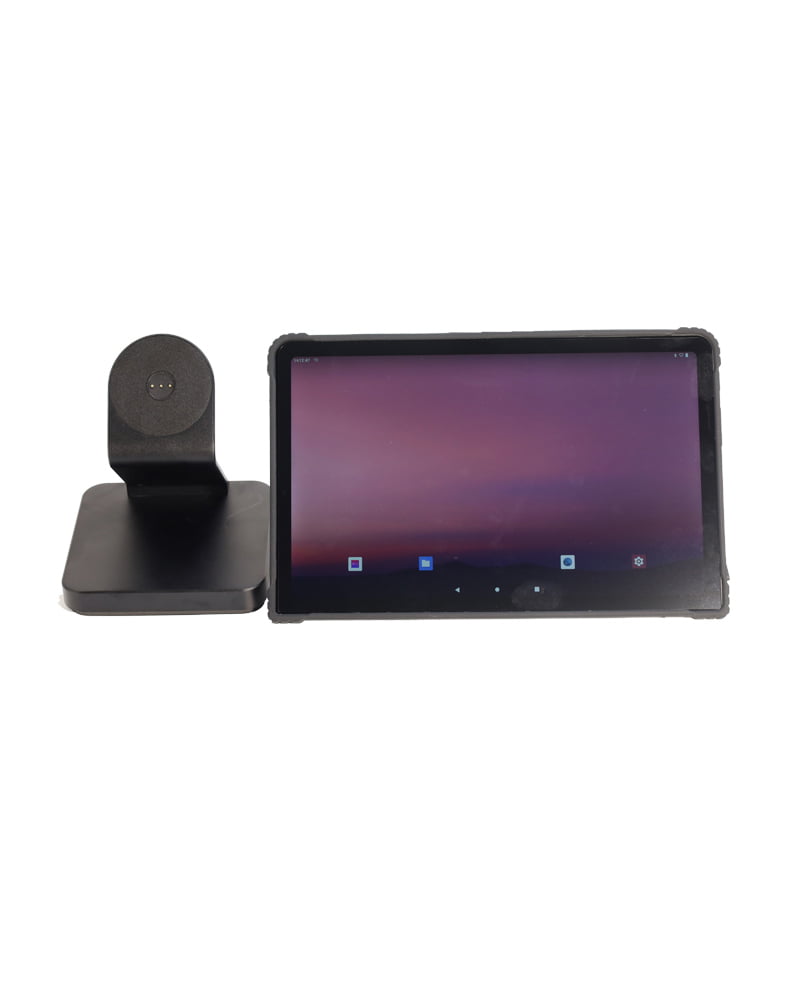

The SN-R18 upgrades luxury hotels and corporate offices without a rebuild. Our magnetic wall bracket takes standard 86-box mounting, and it accepts Power over Ethernet (POE 48V) or 220V inputs. You get a flush, cable-free digital interface in minutes.
SN-R18 Specifications
| Display | 10.36" FHD (1200x2000) IPS, Incell 5-Point Touch |
|---|---|
| Processor | Octa-Core Cortex-A53 2.3GHz |
| Memory / Storage | 3GB LPDDR3 / 64GB EMMC |
| Operating System | Android 13 |
| Tablet Battery | 5000 mAh, Type-C (5V/2A) |
| Cameras | Front 5MP + Rear 8MP |
| Desktop Dock (Opt.) | 10000mAh Battery. Optional: 1x RJ45 LAN, 2x USB-A |
| Wall Dock (Opt.) | 86-Box Mount, 220V AC or POE (48V) Input |
| Connectivity | Wi-Fi 2.4G/5G, Bluetooth 4.2, GPS |
| Expansion | NFC (Optional External), OTG Supported |
| Dimensions / Weight | Tablet: 452g. Dock: 543g. |
SN-R18 Magnetic Tablet FAQ
6 questions buyers ask before ordering.
What is the 10.36-inch panel actually good for?
+
It is a 1200 × 2000 IPS panel with in-cell bonding and 5-point touch. The aspect ratio is portrait-first, so an item list, an order ticket or a receipt shows more lines than a 10.1-inch landscape panel, and in-cell bonding puts the touch layer inside the LCD stack instead of on top of it.
Why eight A53 cores here, when the U-series uses A73?
+
The R18 runs eight Cortex-A53 cores at 2.3 GHz; the U10 and U1095 use a four-A73 plus four-A53 layout at 2.0 GHz. The A53 cluster holds a sustained clock on low power, which suits a screen-up-all-shift terminal. If the app leans on UI animation, the A73 pair in the U-series is the better fit.
Is 3GB of RAM enough?
+
3GB LPDDR3 with 64GB of eMMC storage. That carries one Android POS application plus a browser tab comfortably. If the deployment switches between several kiosk apps on the same device, the U10 and U1095 carry 4GB on the same software stack.
Can it take a wired network?
+
Only through the optional desktop dock, which adds one RJ45 LAN port and two USB-A ports on top of its 10,000 mAh battery. The tablet itself is Wi-Fi 2.4G/5G, Bluetooth 4.2 and GPS.
Rear camera and NFC — what do they enable?
+
Front 5MP and rear 8MP makes the R18 the only tablet in the range with a rear camera, so it can capture a document, a parcel or a shelf label. NFC is an optional external module rather than built in, which keeps the base unit cheaper if the project does not need tap.
How is it mounted, and what does it weigh?
+
The tablet is 452 g and the dock 543 g. The wall dock is an 86-box mount fed by 220V AC or 48V POE, so a wall position needs no separate power brick behind the panel.
Something not covered here? Ask our engineering team.
Deploy the Industry Standard.
Your software deserves premium hardware. TillNode provides deep OEM customization, boot logo modification and locked OS options. Let our engineers support your next major project.
- Deep OEM & ODM customization
- Custom boot logo & locked OS
- Dedicated engineering support
Which POS tablet fits the project?
Same Android stack and magnetic docking family, different panel and I/O. The two closest alternatives to this page:
Planning the deployment? See how these units work in the field, or read the buying and comparison material.
