SN-C30 Touch Screen POS System
Retail hardware specified for the work it actually does.
The SN-C30 runs a 15.6-inch 1080p main screen with an optional second display for the customer, on an Intel board with up to 16 GB RAM. Cables route inside the aluminium stand, so the counter stays clean without a cable tray. Order it as a single screen and add the customer display later.
- MOQ 1 with 10–15 day lead time on stock models
- Spec sheets and SDK released before the order
- 24-month warranty, OEM branding available on volume orders
- SKU
- SQN-SN-C30-TOUCH
- Availability
- In Stock
- Lead Time
- 10-15 business days
- Warranty
- 24 months standard
Cables inside the aluminium stand
The cables run inside the aluminium stand instead of down the back of the counter. A shopper standing at the till sees a clean surface, and cleaning staff can wipe around the base without unplugging anything.

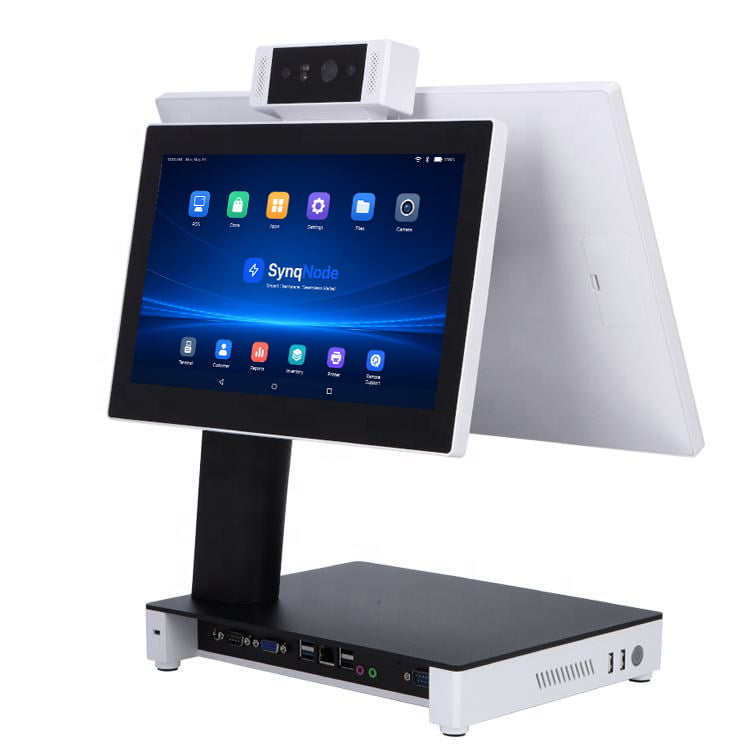

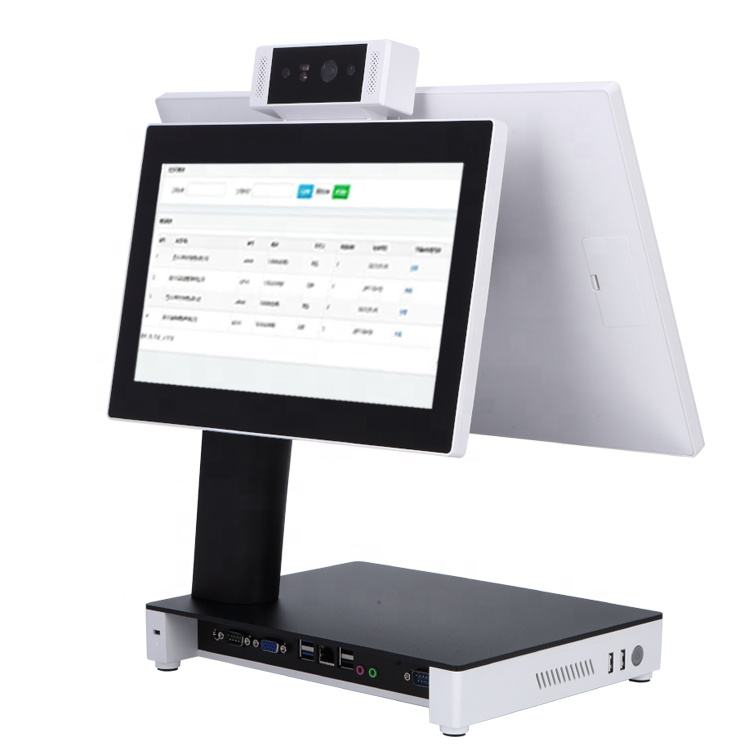

A 15.6-inch main panel and an 11.6-inch customer screen
You put a second screen on the customer side and run promotions, order lines and a payment QR on it while the cashier keeps the main panel. The shopper sees the price they are about to pay, which cuts the disputes at the till.
Edge-to-edge glass outside, a fanless board inside
The front is a single sheet of edge-to-edge glass, and the board behind it runs without a fan. No fan means no intake, so dust from a bakery or grease from a fryer does not build up inside the case.
Technical Details
Full specifications, documentation, and customization options for engineering evaluation.
| Main Display | 15.6" IPS FHD (1920x1080), Ultra-slim bezel |
|---|---|
| Customer Display | Optional 11.6" / 15.6" LCD (Touch / Non-touch) or VFD (2 Lines x 20 Characters) |
| Processor (CPU) | Intel® Celeron J4125 / Core i3 / Core i5 / Rockchip (Android) |
| Memory (RAM) | 4GB / 8GB / 16GB DDR4 RAM |
| Storage (ROM) | 128GB / 256GB / 512GB SSD |
| Dimensions | 440*300*360 mm |
| NFC | Optional NFC module (factory-fitted), supports TYPE-A&B cards, FeliCa (F), ISO14443, 15693(M), 18092(NFCCIP-1). |
| Material | Die-cast aluminum alloy base, ABS plastic monitor housing. |
| Peripheral Options | MSR, iButton, IC / ID / NFC / RFID Card / Fingerprint Sensor / Camera |
| 4G Module (Optional) | Embedded 4G Module, Micro SIM: LTE-FDD:B1/3/5/8 LTE-TDD:B34/38/39/40/41 |
| Environment | Operating: 0°C to 40°C | Storage: -20°C to 60°C |
Frequently Asked Questions
Common inquiries from retailers, system integrators, and procurement teams.
Can the customer display be added later, or must it be purchased together?
Order it either way. The mount sits in the chassis, so your technicians can add or remove the second screen later without changing the terminal.
Is it difficult to access the cables for maintenance?
No. The back cover on the stand is magnetic and lifts off by hand, so your IT staff reach the cables without a screwdriver.
Are both Windows and Android operating systems supported?
Yes. We fit an Intel board for Windows or Linux, or a Rockchip board for Android, and the rest of the terminal stays the same. Tell us which one your software targets.
