SN-LP9220 Industrial 4 Inch Label Thermal Printer
Retail hardware specified for the work it actually does.
Shipping and warehouse label printer on 110 mm stock: 203 dpi, up to 160 mm/s, 104 mm print width. It takes continuous, gap, tag and folded stock from the same unit, so 4×6 shipping labels, carton tags and shelf labels all come off one machine. Transmissive and reflective sensors read gaps and black marks, and the supplied paper stand carries a full 110 × 100 mm roll instead of a small internal spool. TSPL, CPCL and ESC/POS in firmware, so it slots into an existing WMS or ERP label routine.
- MOQ 1 with 10–15 day lead time on stock models
- Spec sheets and SDK released before the order
- 12-month warranty, OEM branding available on volume orders
- SKU
- SQN-SN-LP9220-IN
- Availability
- In Stock
- Lead Time
- 10-15 business days
- Warranty
- 12 months standard
| Specifications | ||
| Interfaces | USB / LAN / Bluetooth /WIFI (optional) | |
| Print Command | CPCL / TSPL command (ESC/POS command) | |
| Print Method | Direct Line Thermal | |
| Resolution | 203DPI (8dot/mm) | |

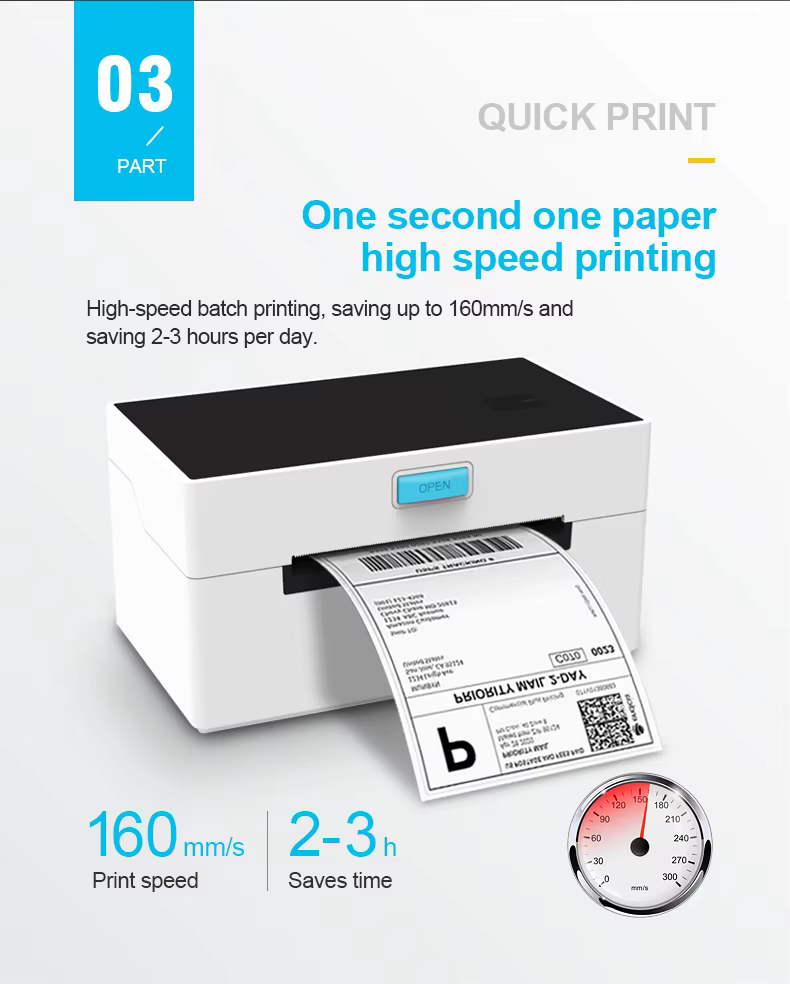

| Print Speed | Max to 160mm/s | |

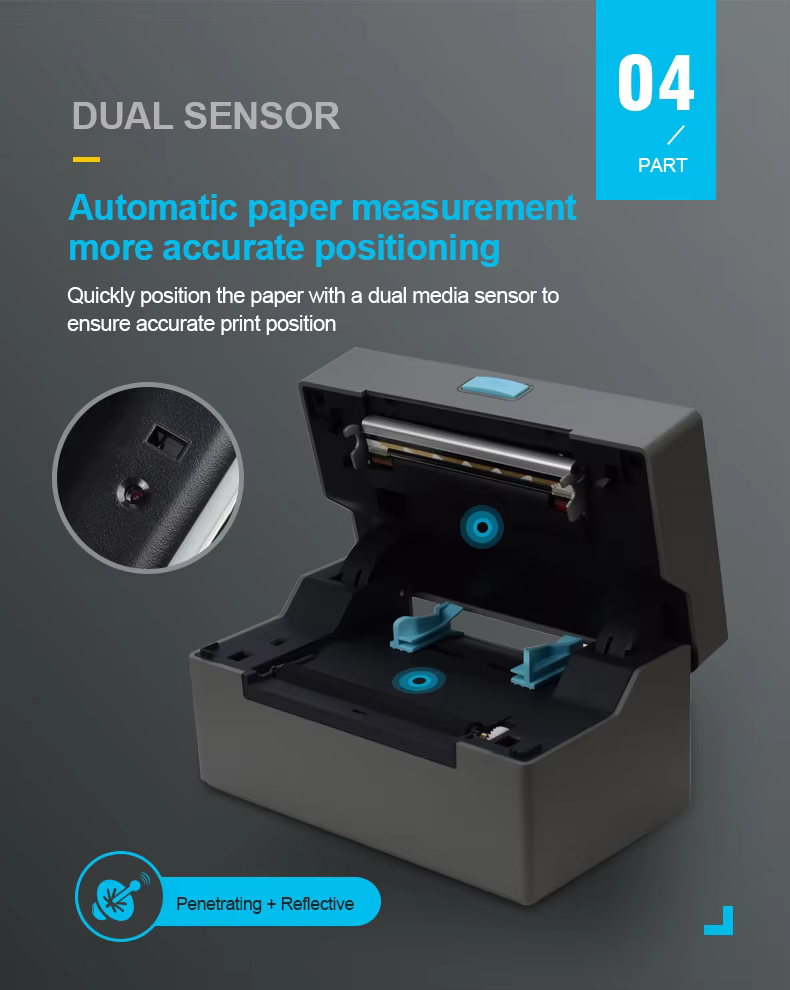

| Media Sensor | Transmissive and Reflective | |
| Inner Code | Supported 11 types font size | |
| Print parameters | Support to download the Logo trademark | |
| One-dimensional code | UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128 | |
| Two-dimensional code | QR CODE,PDF417 | |
| Printer Driver | Windows / macOS; iOS / Android supported | |
| Paper | ||
| Thermal Paper Types | continuous paper, label paper, folded paper, tag paper | |
| Max paper roll | 110*100mm (width*diameter) | |
| Effective Print Width | 104mm (Max 800 points) | |
| Available Max Paper Width | 110 ± 0.5mm | |
| Paper Thickness | 0.06-0.30 mm | |
| Package | ||
| Printer Dimension | 20*11.5*11cm | |
| Printer N.W. | 0.98KG | |
| Package | 1pc with accessories/box, 8 boxes/ctn | |
| Accessories | Manual, USB Cable, Adapter, Power Cable , Paper Stand | |
| Box Dimension | 23*19*17CM | |
| Box G.W. | 1.9Kgs | |
| CTN Dimension | 47.5*39.5*35.5 cm | |
| CTN G.W. | 16kgs | |
| Environmental | ||
| Working Temperature | +0 ℃ ~ 50 ℃ (no condensation ) | |
| Working Humidity | 20% ~ 85% RH (no condensation ) | |
| Storage Temperature | -20 ℃ ~ 60 ℃ (no condensation ) | |
| Storage Humidity | 5% ~ 95% RH (no condensation ) | |
| Mechanical Noise | less than 60dB | |
104 mm across — the full 4-inch web, 800 dots a line

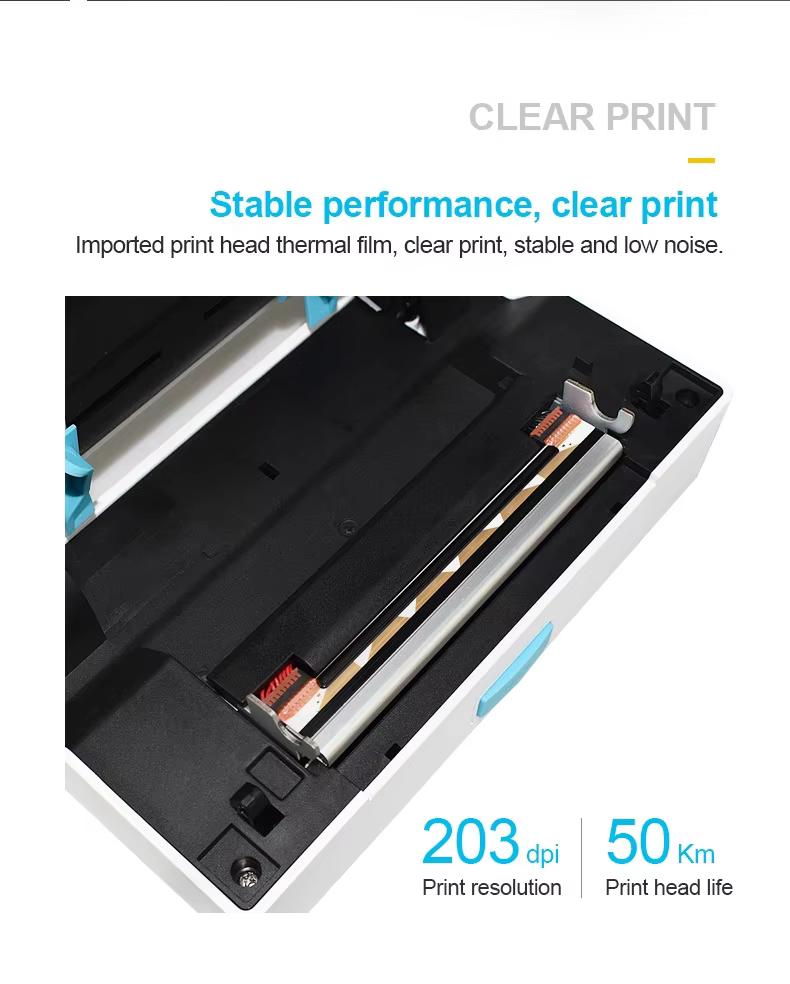

The head prints 104 mm wide, which is the full 4-inch web rather than the 100 mm some 4-inch machines deliver, and it addresses 800 dots per line at 203 dpi. Paper up to 110 ± 0.5 mm runs through it, so a 105 mm label with a liner fits without shaving the artwork. On a shipping label that is the difference between the barcode and a barcode with its quiet zone cut off.

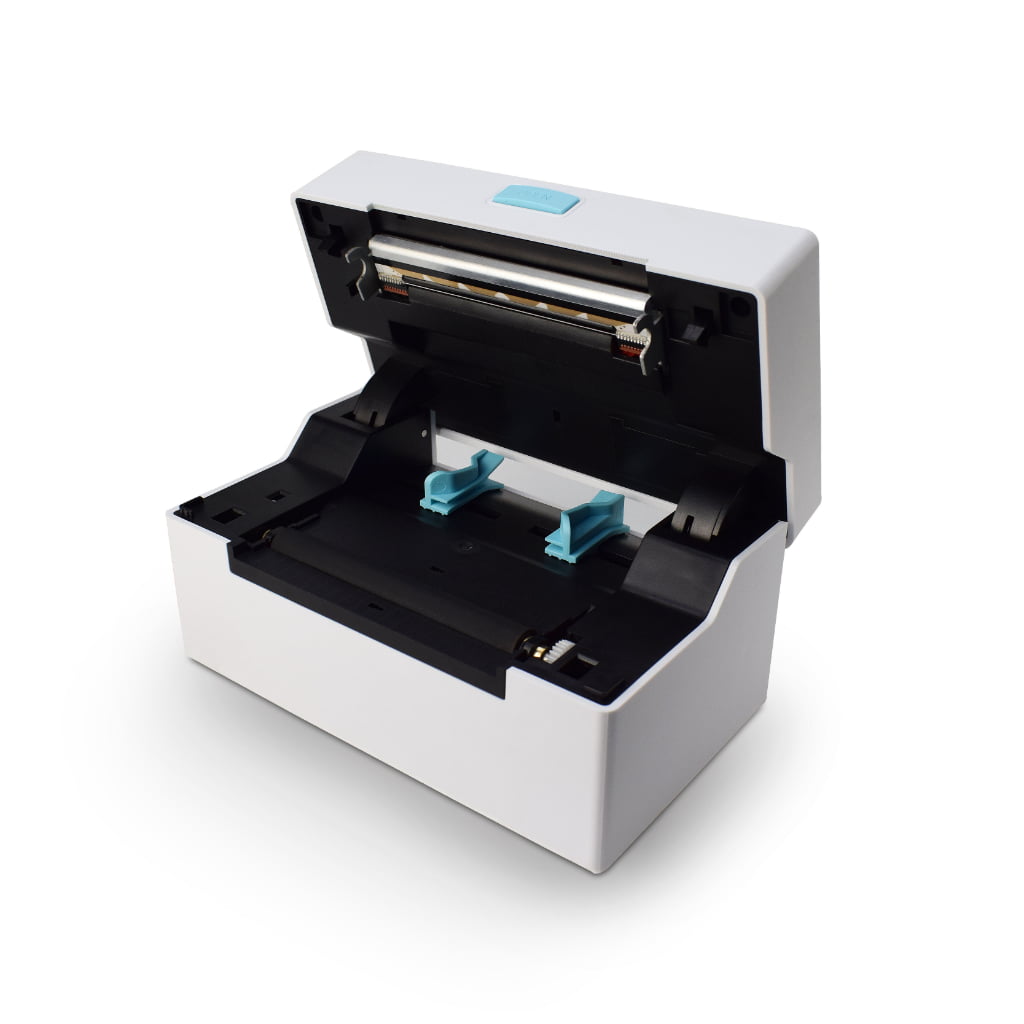

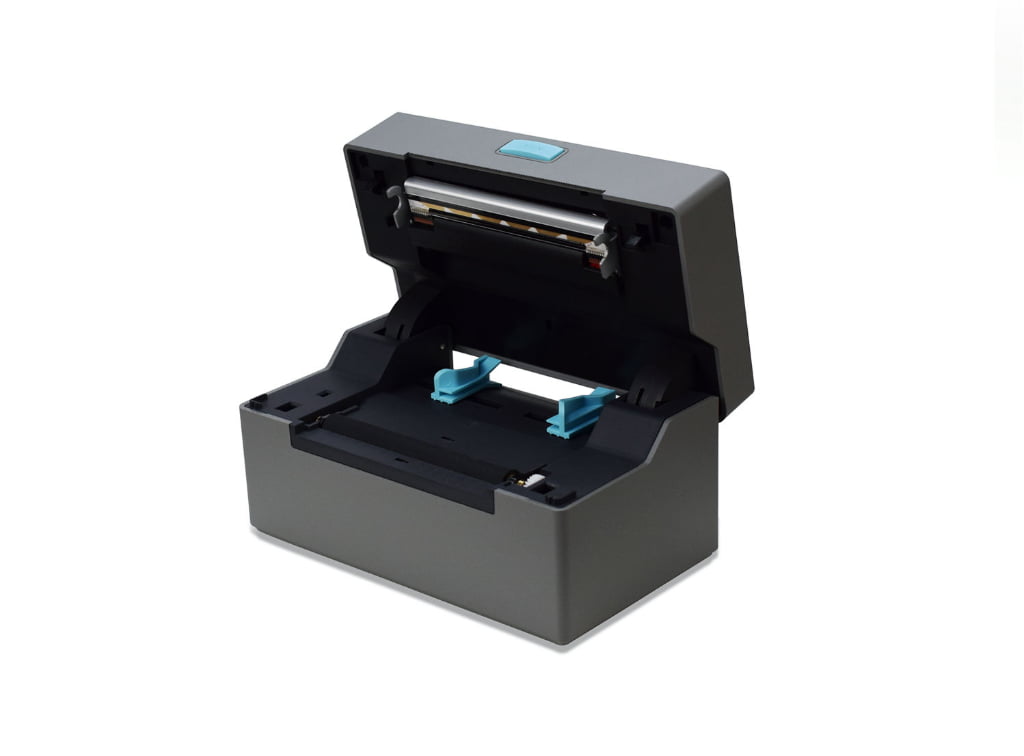

The lid lifts clear of the head and the web drops onto the platen

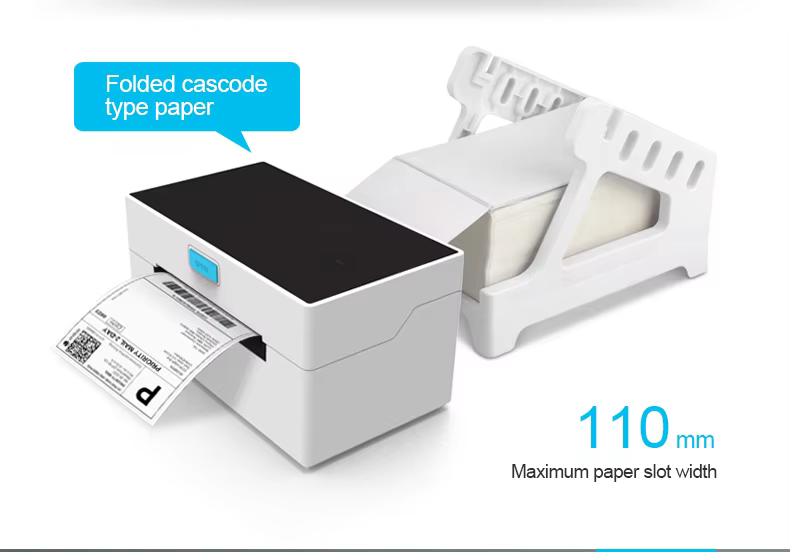

The top swings fully open rather than hinging to 45 degrees, which puts the print head and the platen in view while you thread a web. It accepts continuous, label, fan-fold and tag stock from 0.06 to 0.30 mm, and the roll cradle takes 110 × 100 mm. Fan-fold matters for a back-office machine: it runs from a stack on the floor, not a roll.

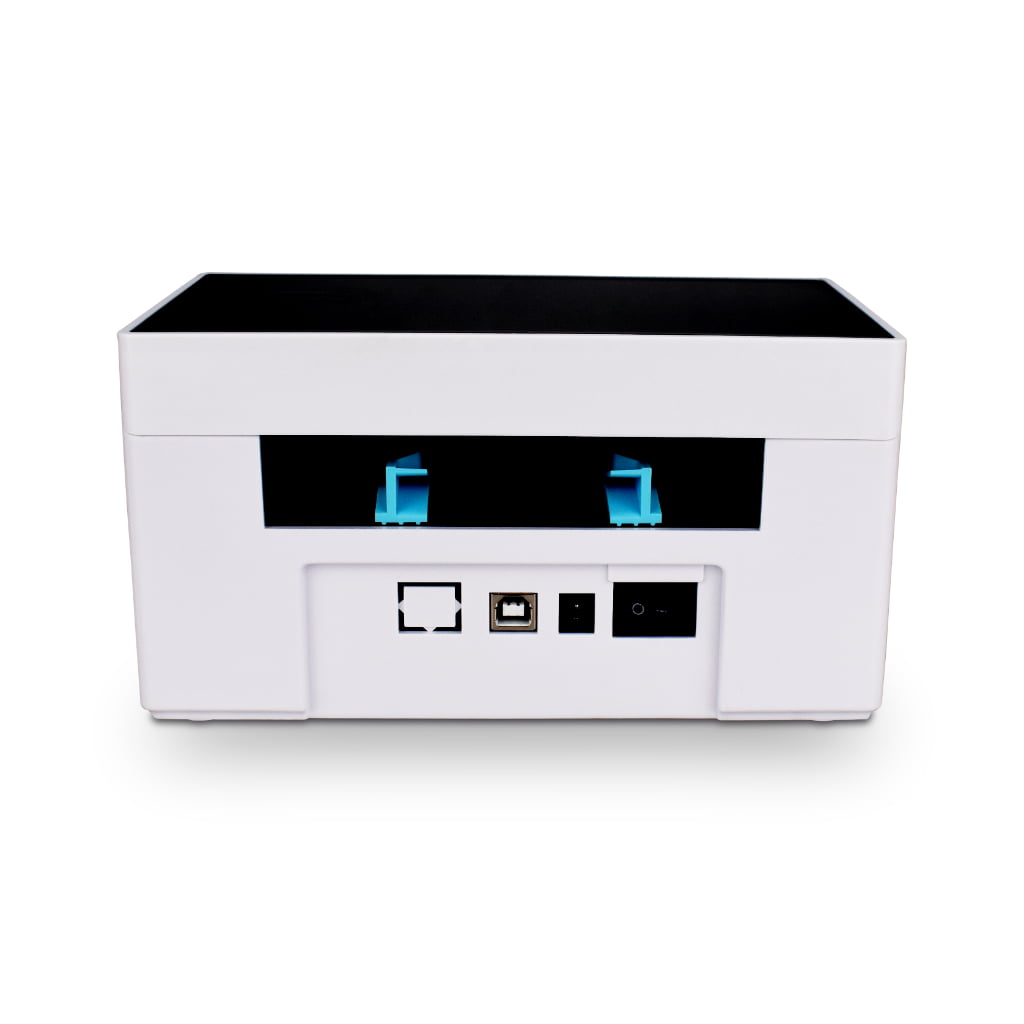

USB, LAN, Bluetooth and WiFi — and CPCL as well as TSPL
USB and LAN are standard, Bluetooth and WiFi are options, so the same SKU drops onto a counter network or into a handheld workflow. It speaks CPCL, TSPL and ESC/POS, and CPCL is what a lot of older label software still emits — replacing a Zebra-era unit does not mean rewriting the templates. That rework, not the hardware, is usually the real cost of a swap.
Technical Details
Full specifications, documentation, and customization options for engineering evaluation.
| Dimensions | 200 × 115 × 110 mm |
|---|---|
| Integrated Printer | Direct line thermal; 160 mm/s max; 203 dpi (8 dot/mm); print width 104 mm (800 dots); max roll 110 × 100 mm; paper 110 ± 0.5 mm, 0.06–0.30 mm; continuous, label, fan-fold and tag stock; transmissive and reflective sensors; CPCL / TSPL / ESC/POS |
| Power Supply | External power adapter supplied; 100–240 V AC input |
| Environment | Operating 0–50 °C, 20–85% RH non-condensing; storage −20 to +60 °C, 5–95% RH |
Frequently Asked Questions
Common inquiries from retailers, system integrators, and procurement teams.
What label width does SN-LP9220 support?
SN-LP9220 supports thermal labels up to 110mm width.
Does SN-LP9220 require ribbon?
No. It uses direct thermal printing technology and does not require ribbons.
Can it print different types of labels?
Yes. It supports continuous labels, gap labels, black mark labels, folded labels and tag paper.
Is SN-LP9220 suitable for industrial environments?
Yes. The reinforced dual-wall structure is designed for high-volume commercial and industrial applications.
Which programming languages are supported?
It supports CPCL and TSPL commands for easy software integration.
Can OEM customization be provided?
Yes. TillNode provides OEM logo, packaging and customized hardware solutions.
