SN-P10 Intelligent Cash Register
Retail hardware specified for the work it actually does.
The SN-P10 is a 15.6-inch Android cash register machined from a single aluminium body, with the bezel held to 8 mm on all four edges. It carries an IP65 rating for kitchen counters and runs fanless, so oil fumes and flour never reach the board. Order the NFC module and we fit the antenna under the glass, so the customer taps the phone on the screen instead of a separate reader.
- MOQ 1 with 10–15 day lead time on stock models
- Spec sheets and SDK released before the order
- 24-month warranty, OEM branding available on volume orders
- SKU
- SQN-SN-P10-INTEL
- Availability
- In Stock
- Lead Time
- 10-15 business days
- Warranty
- 24 months standard

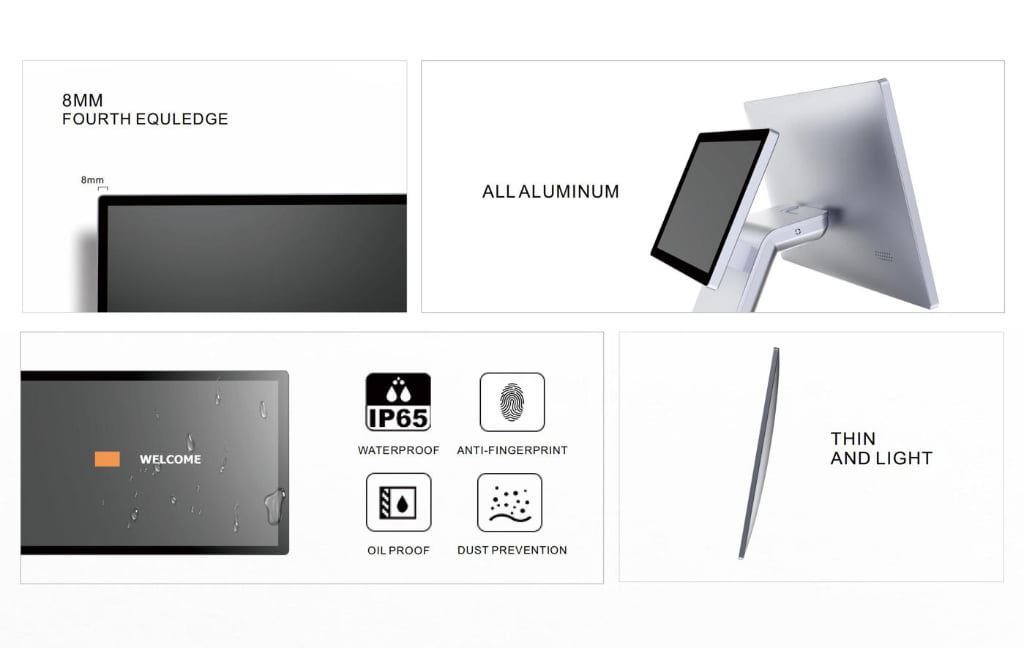

An 8 mm equal-edge bezel on all four sides
We machine the body from aluminium and hold the bezel to 8 mm on all four edges, so the screen reads as one sheet of glass rather than a panel in a frame. The cables go in behind the plate, which is why a shopper sees no wires at the till.
IP65. No Fan, No Vents.
We seal the housing to IP65 and run the board without a fan — no intake means no path for oil fumes or flour to reach the electronics. A kitchen can hose the counter down and the terminal keeps working. Sealing it also takes weight out, because there is no ducting inside.

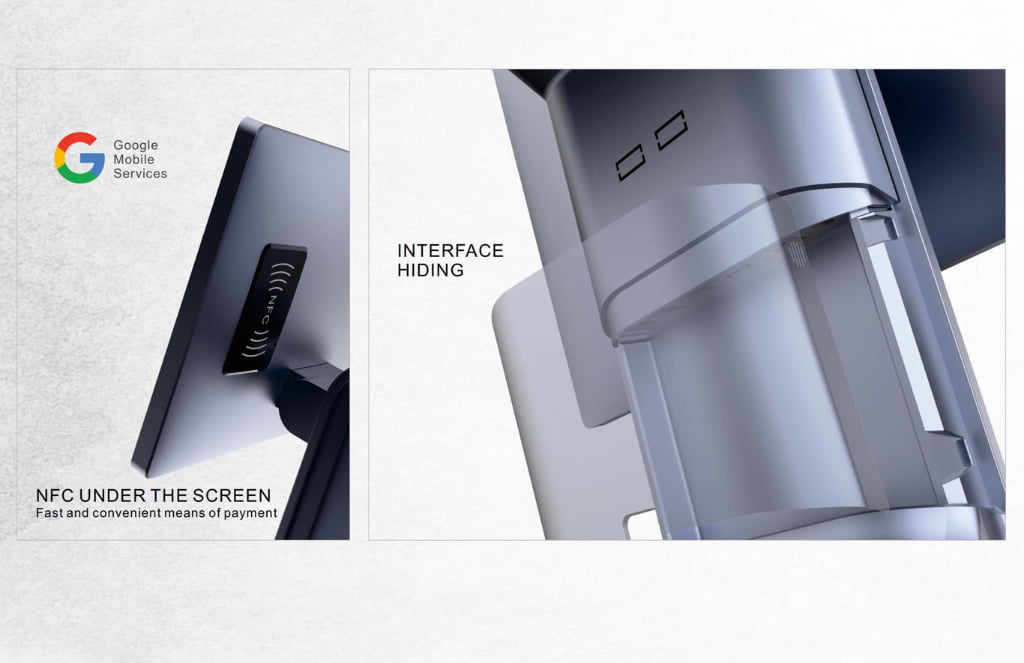

NFC under the glass, fitted as an option
We place the NFC antenna behind the display, so the customer taps the phone on the glass where the payment prompt already is. It is a factory-fitted option rather than a second box on the counter: nothing is bolted to the stand and the front stays one uninterrupted surface.
Technical Details
Full specifications, documentation, and customization options for engineering evaluation.
| Main Display | 15.6" TFT LCD, 1920x1080 FHD |
|---|---|

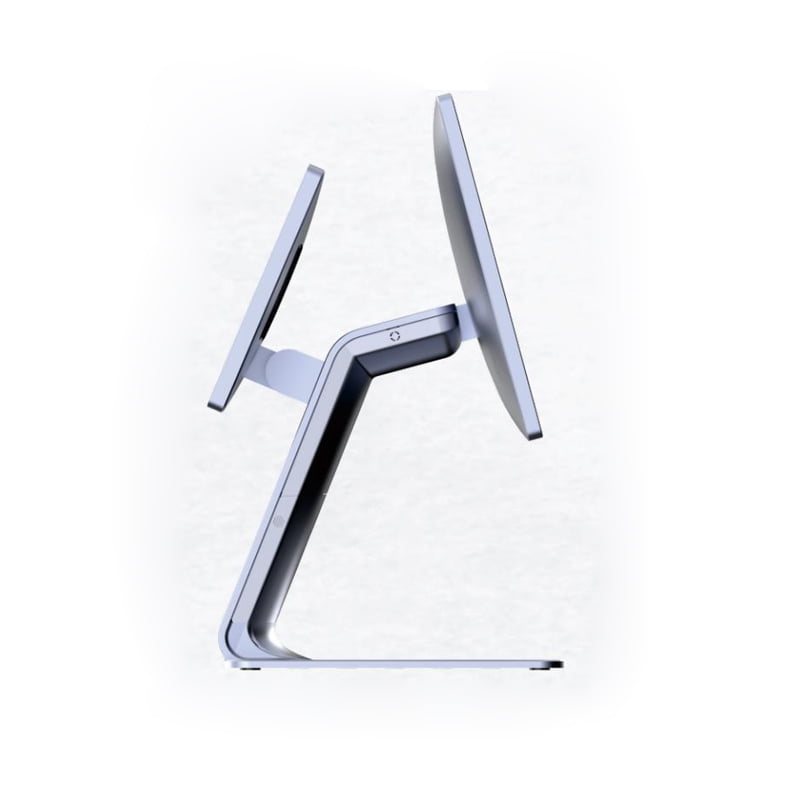

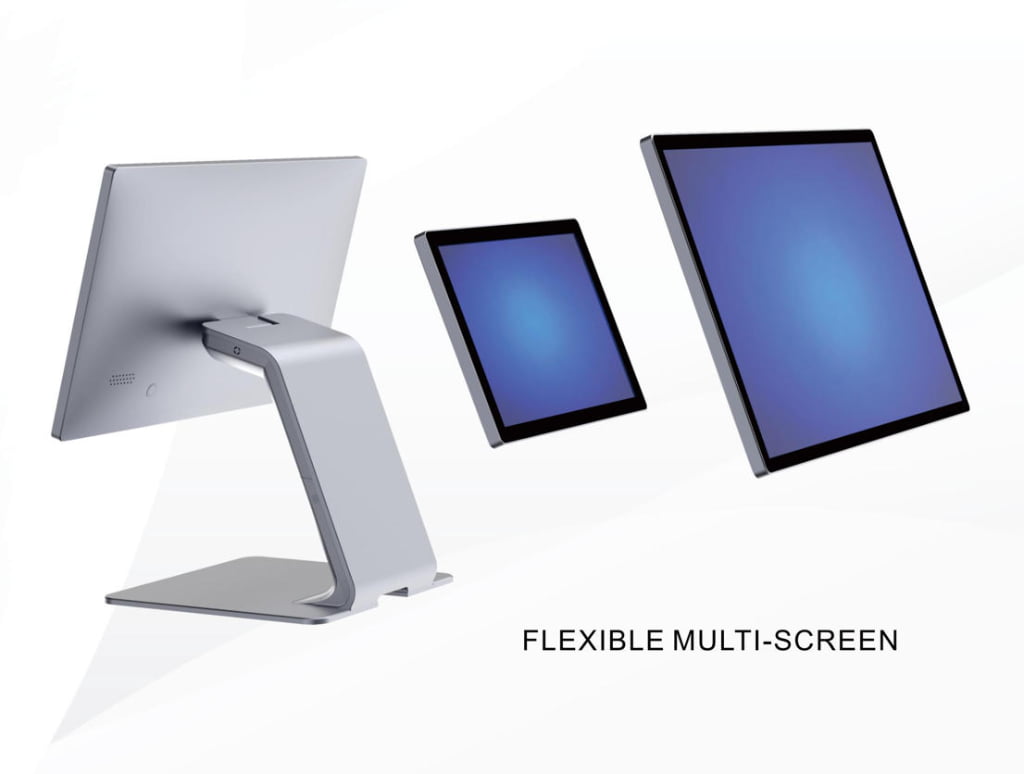

| Customer Display | Optional 11.6" / 15.6" LCD (Touch / Non-touch) or VFD (2 Lines x 20 Characters) |
| Processor (CPU) | RK3568/Rk3576/Rk3588 |
| Memory (RAM) | 4GB / 8GB / 16GB DDR4 RAM |
| Storage (ROM) | 64G/128G EMMC/UFS |
| Dimensions | W366*H346*D212mm |
| Integrated Printer |
Printer Type: Built-in Thermal Receipt Printer (Direct Thermal) Paper Width: 58mm or 80mm (Configurable based on order) Print Speed: 160mm/s (High-speed output) Cutter Mechanism: Auto-cutter integrated (Partial/Full cut supported) Paper Loading: Drop-in easy loading design |
| NFC | Optional under-screen NFC module (factory-fitted); tap-to-pay on the main display |
| Material | Aluminum Alloy Housing |
| Peripheral Options | MSR, iButton, IC / ID / NFC / RFID Card / Fingerprint Sensor / Camera |
| Power Supply | 1x 12V DC-in (110-240V) |
| Environment | IP65 rated against water, dust and kitchen oil fumes |
Frequently Asked Questions
Common inquiries from retailers, system integrators, and procurement teams.
What retail environments are best suited for the SN-P10?
Boutiques, high-street retail and restaurant kitchens. The IP65 housing takes water and oil fumes, and the aluminium body suits a high-end fit-out.
How is the heat dissipated without cooling holes?
The aluminium body is the heatsink. We bolt the board to it through thermal pads, so heat leaves through the case and there is no fan to pull in dust or oil.
Does the under-screen NFC affect the display quality?
No. The sensor sits below the display layer with a transparent electrode pattern, so the glass looks and reads exactly as it would without NFC.
Which peripheral modules can be attached to this POS terminal?
A fingerprint reader, an MSR plus NFC module, a camera, and an 80 mm printer base. Tell us the combination and we fit it at the factory.
Are OEM/ODM customization services available for bulk orders?
Yes. We set the boot logo, match the aluminium finish and preload your software configuration on volume orders.
