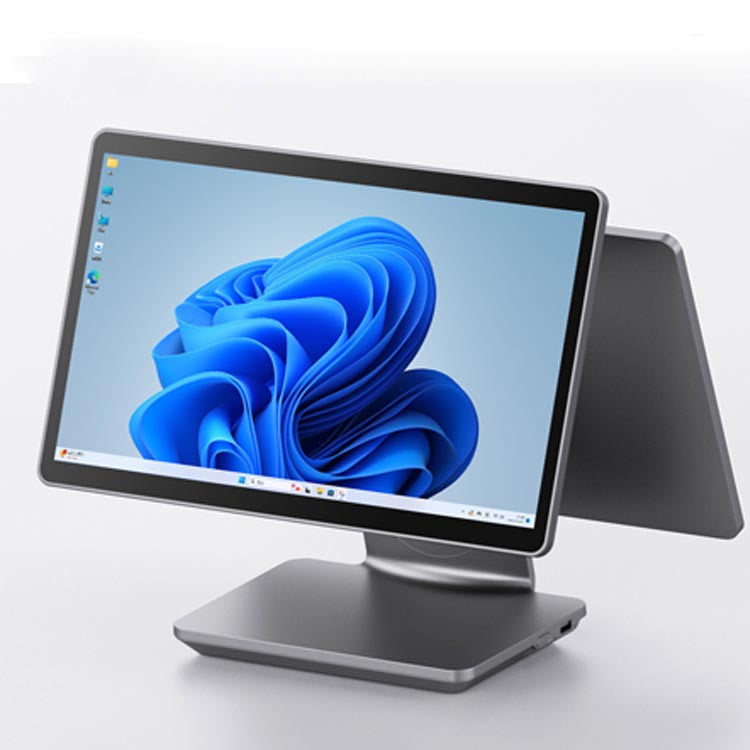

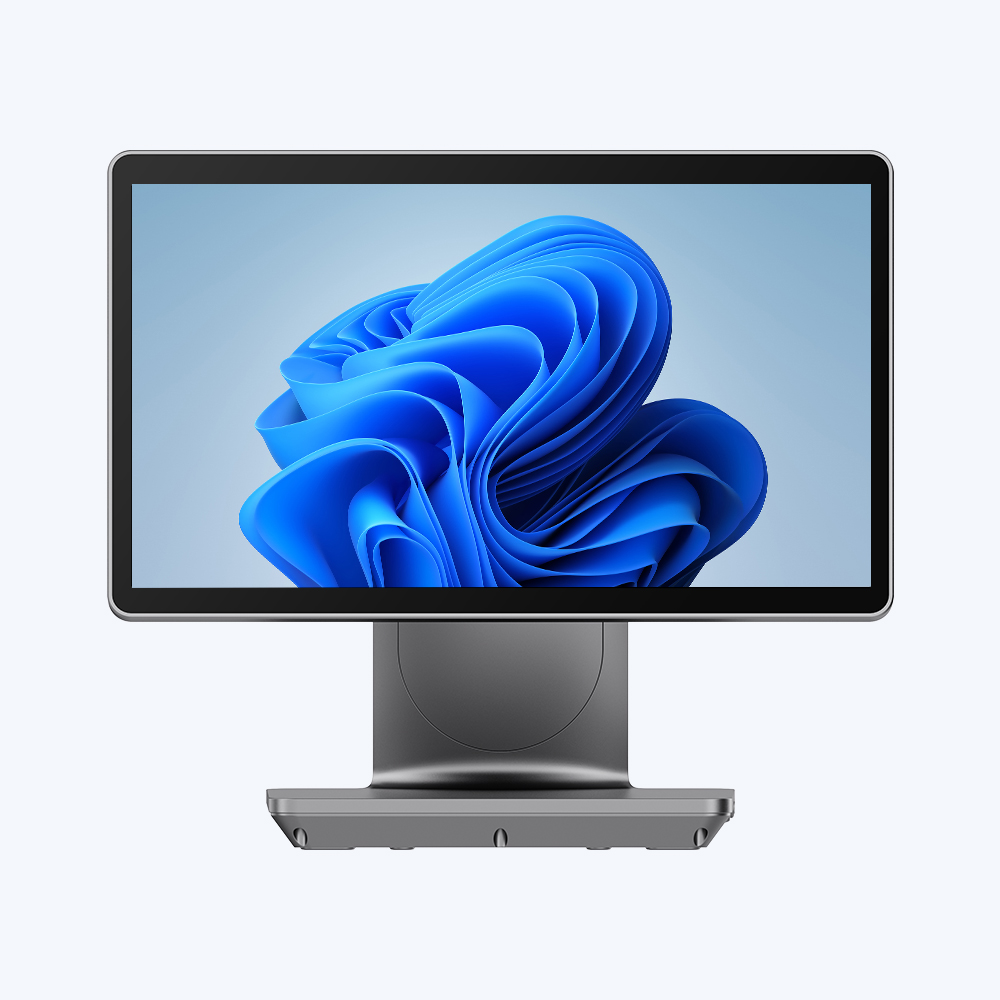

SN-P90W:
The High-Performance Computing Node.
The SN-P90W brings uncompromised processing power. We built it for the Windows ecosystem, and it takes on heavy retail workflows without a stall. Absolute stability holds through your high-demand environments.
Engineered for Heavy Workloads.
It runs massive ERP databases and complex POS software on the spot. Turbo speed reaches up to 4.4 GHz, so peak-hour order surges pass with zero lag. We configure the right processing power for your specific operation.
Intel® Core™ i3 Node
We engineer this node for enterprise supermarkets, hospitality chains and heavy local database processing. It sustains high concurrency without thermal throttling.
- ⚡ Up to 4.40 GHz Max Turbo Frequency
- ⚡ Windows 11 IoT Enterprise / Win 10 IoT
- ⚡ Up to 32GB DDR4 High-Speed RAM
Intel® Processor N150 Node
This node suits standard cloud POS software, retail boutiques and cafes. Exceptional energy efficiency pairs with solid Quad-Core processing capabilities.
- ⚡ Fanless Low-Power Architecture
- ⚡ Quad-Core 4-Thread Responsiveness
- ⚡ Cost-Effective High Volume Rollouts

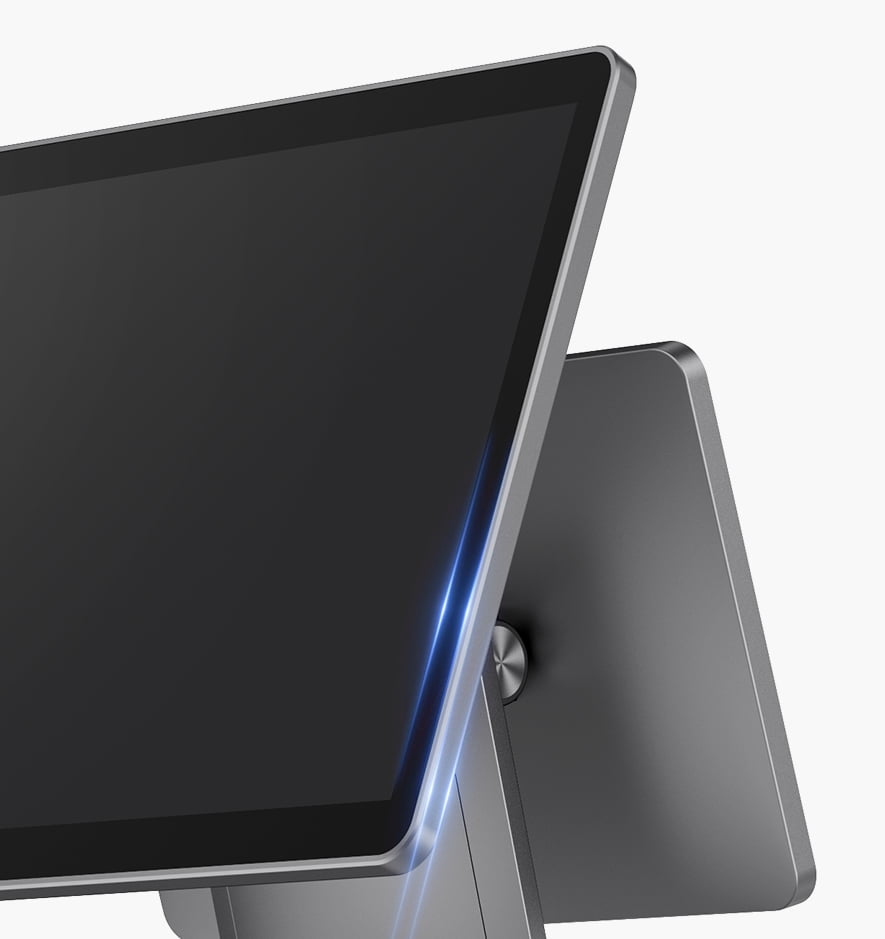

Clarity Meets Aesthetic Design.
The SN-P90W redefines the modern checkout counter. A near-borderless 15.6" FHD display leads the front face, and every transaction detail reads clearly. The build holds an ultra-thin 8.75mm profile without sacrificing industrial durability.
15.6" 1080P FHD Resolution
The 1920x1080 high-definition IPS panel guarantees maximum UI clarity and keeps wide viewing angles clean.
350 Nits High Brightness
Anti-glare capacitive touch glass cuts reflections, so the screen stays readable under intense retail lighting.
5mm Ultra-Narrow Bezel
The panel gives you an 80%+ screen-to-body ratio and clears clunky industrial bezels out of your store.
Configured to Your Exact Requirements.
Secondary displays attach to confirm orders or show loyalty programs, which lifts omnichannel customer interaction. We add modular card readers and fingerprint scanners as needed. Your workflow dictates the hardware.

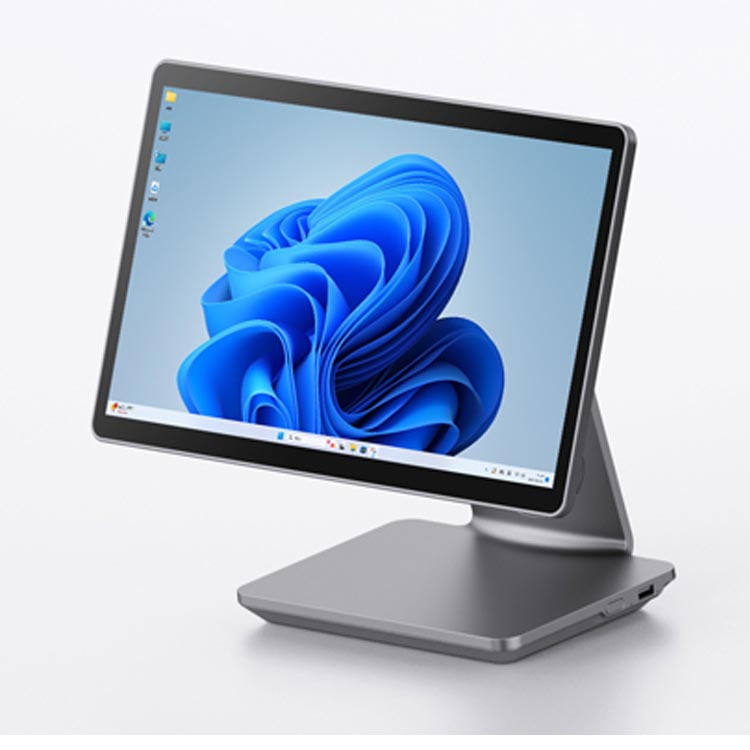

15.6" Single Display
Minimalist footprint designed for boutique fashion, bars, and compact service desks.

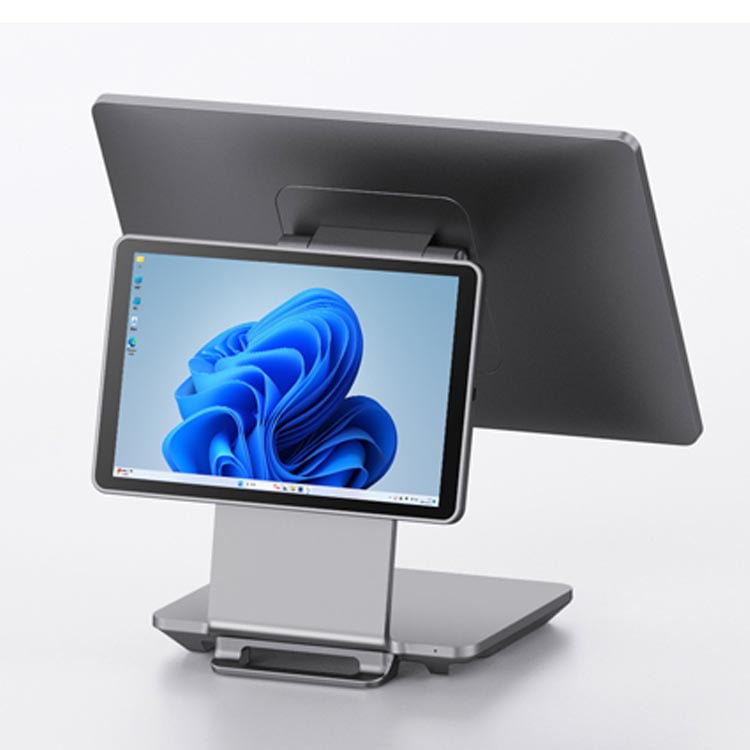

15.6" + 10.1" Customer Display
Real-time receipt review, QR code payments, and membership enrollment at eye level.
Dual 15.6" Full HD Screens
Full-screen dynamic digital promotions, video campaigns, and high-impact brand storytelling.
Tool-Free Modular Peripheral Expansion
MSR Magnetic Stripe, RFID / NFC Contactless Card Reader, and Biometric Fingerprint Modules.

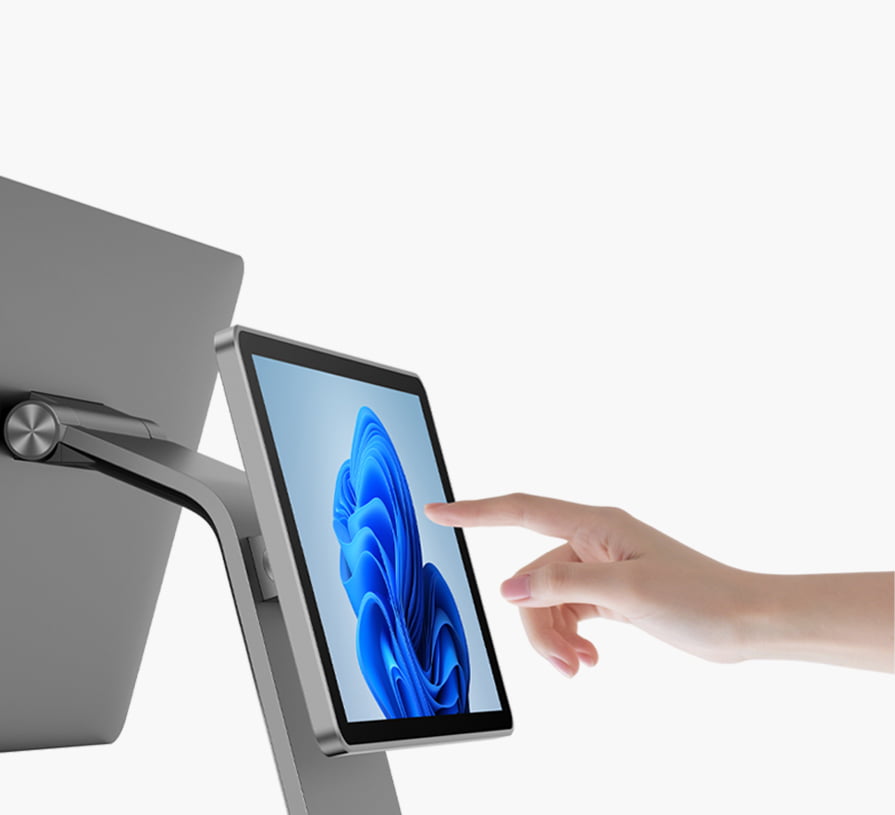

A Touch-Enabled Customer Display to Extend the Interaction
Customers can confirm orders, apply loyalty points, or tip — directly on the secondary screen.

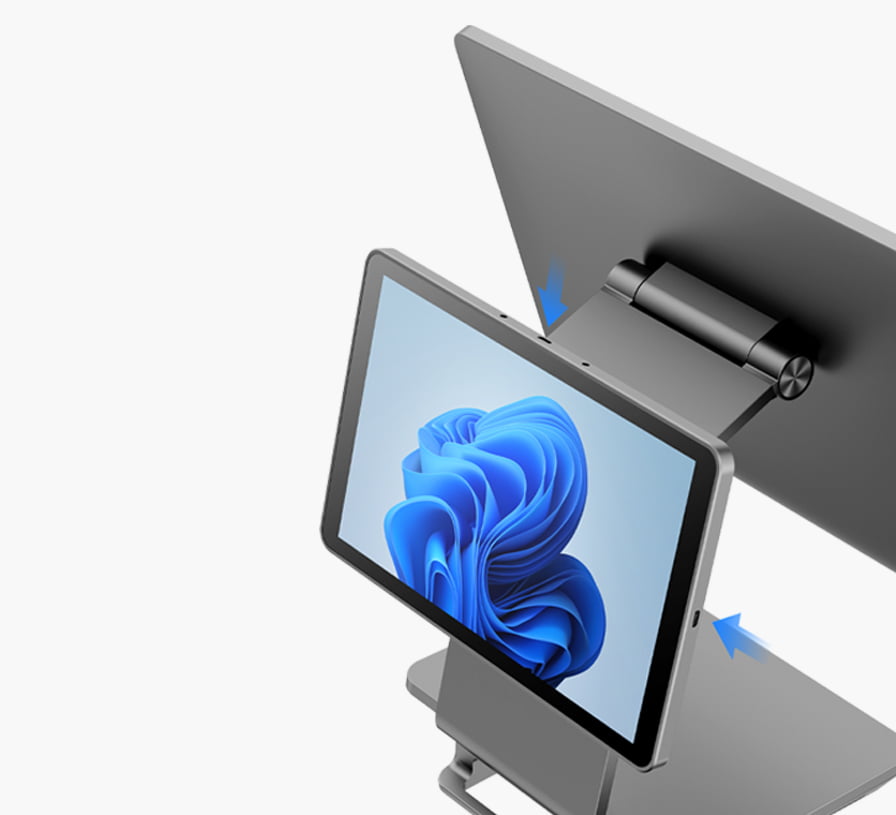

Two Reserved USB Ports on Customer Display
Connects every peripheral your business depends on.

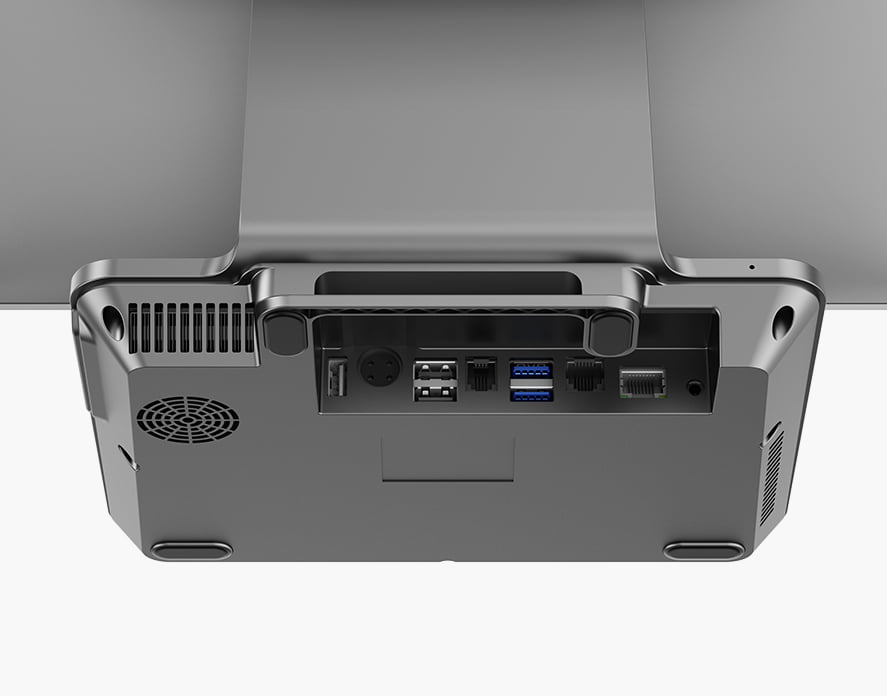

The Connection Hub.
The die-cast base carries a comprehensive I/O set, so barcode scanners, thermal receipt printers and cash drawers all connect without hunting for a compatible adapter.
🔒 Concealed Cable Management Base
The aluminum stand column routes ugly wire clutter out of sight and keeps your countertop clean.

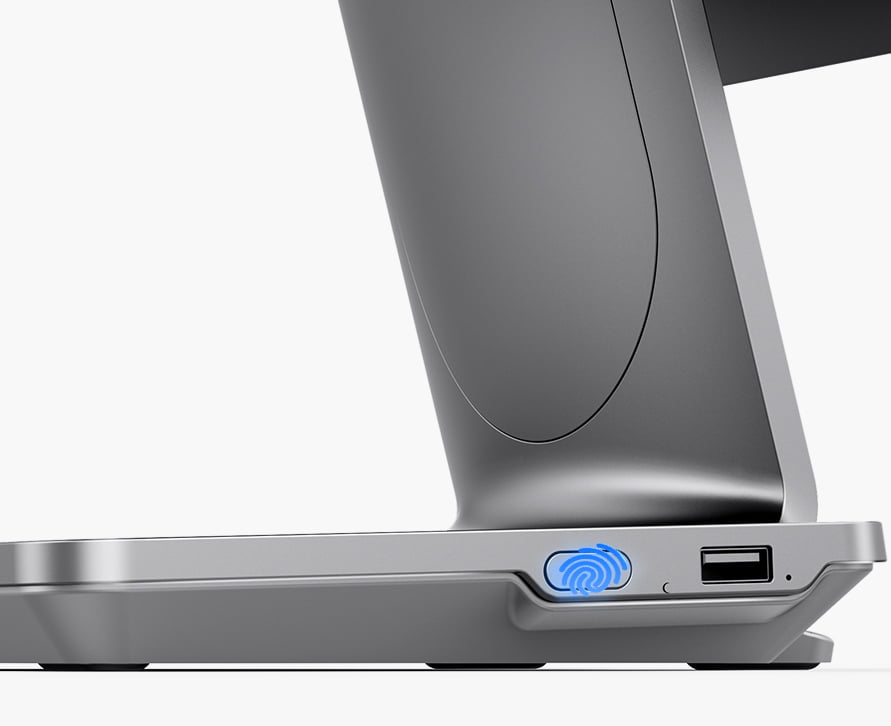

Fingerprint ID
Wake the terminal or log in as a named employee using a fingerprint, reducing unauthorized access risk.

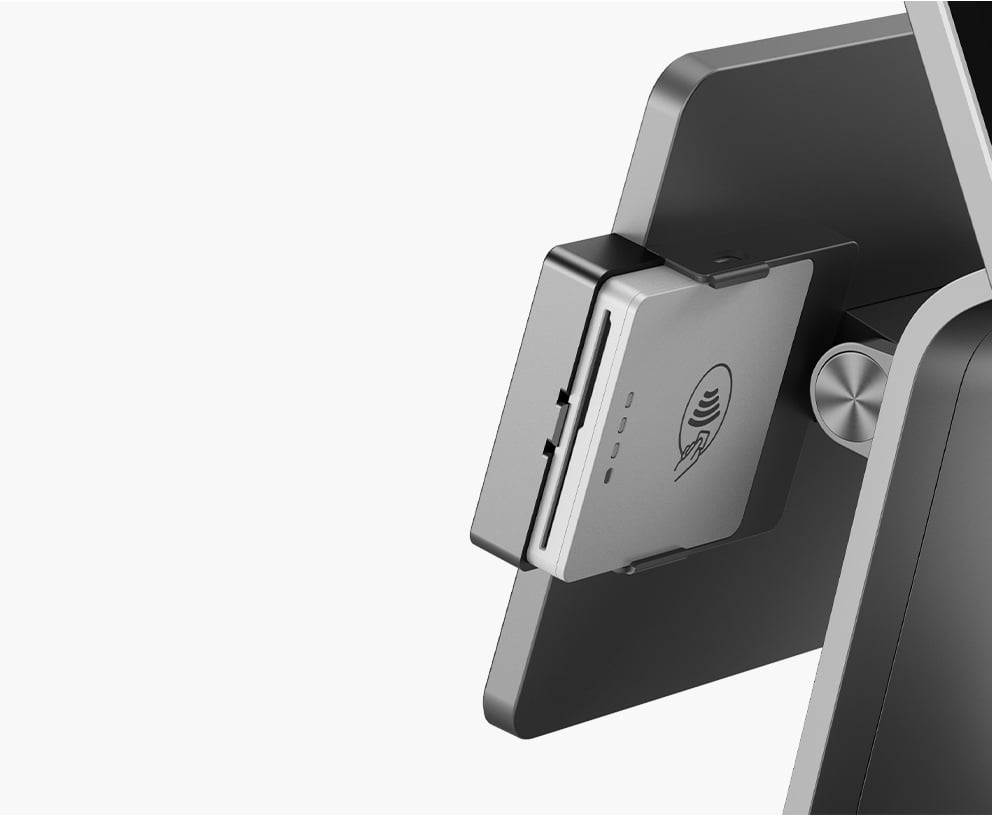

Modular Card Reader
Plug-and-play financial card reader module supports speedy payment processing.
Your Brand. Our Infrastructure.
Our OEM services put brand identity first. We print custom logos on the terminal chassis and tailor hardware configurations to your large-scale deployments, so every counter carries one unified brand.
Chassis & Silk-Screen Logo
We apply custom pantone colors and precision laser etching to the aluminum chassis.
Custom BIOS & Boot Splash
We inject your software brand logo at the UEFI/BIOS level, so it shows during machine startup.
Custom Retail Packaging
Tailored box dimensions, eco-friendly inserts, and branded outer cartons for drop-shipping.
SN-P90W Technical Specifications
Industrial grade parameters for procurement evaluation.
Which desktop terminal fits the counter?
Six counter units on one product line, split by silicon, printer and panel rather than by price tier. The two closest alternatives to this page:
Planning the deployment? See how these units work in the field, or read the buying and comparison material.
SN-P90W FAQ
6 questions buyers ask before ordering.
Which build do I pick — the i3-1215U or the N150?
+
The i3-1215U clocks up to 4.4GHz and the N150 is a quad-core part. Put the N150 on a till that runs a POS client and nothing else; put the i3 on a counter that also does local catalog search, video or report generation, where the burst clock is what a cashier actually feels.
Which operating systems does it run?
+
Windows 11 IoT Enterprise, Windows 10 IoT, and Linux on Ubuntu. IoT Enterprise matters for a fleet because it removes the consumer update cadence from a machine that must not restart mid-shift.
What is the storage, exactly?
+
A 128GB, 256GB or 512GB M.2 NVMe SSD alongside 8GB, 16GB or 32GB of DDR4. NVMe over SATA is the point: it cuts the wait on a cold boot and on the first query of the day, which is when a queue forms.
Does the IP65 rating cover the whole unit?
+
No — the table reads IP65 front bezel waterproof. The seal protects the touch surface against spills and wash-down at the counter; the rear of the housing carries no immersion rating, so mount it clear of a tap.
What I/O does the board expose?
+
Six USB ports split across 3.0 and 2.0, one RJ45 gigabit LAN, one RJ11 serial COM, one RJ12 cash drawer port and audio in and out. Gigabit LAN is worth noting for a site that syncs price files on a schedule rather than overnight.
Which add-ons can I put on the order?
+
A magnetic stripe reader, contactless RFID/NFC and a biometric fingerprint scanner, all listed as modular add-ons. Specify them at the order stage so the enclosure and the port allocation leave the factory matched to the configuration.
