The TillNode
POS Matrix.
We present a comprehensive portfolio of intelligent checkout nodes here. From premium aerospace-grade unibody designs to highly cost-efficient hybrid structures, the exact hardware required to scale your business is ready for deployment.

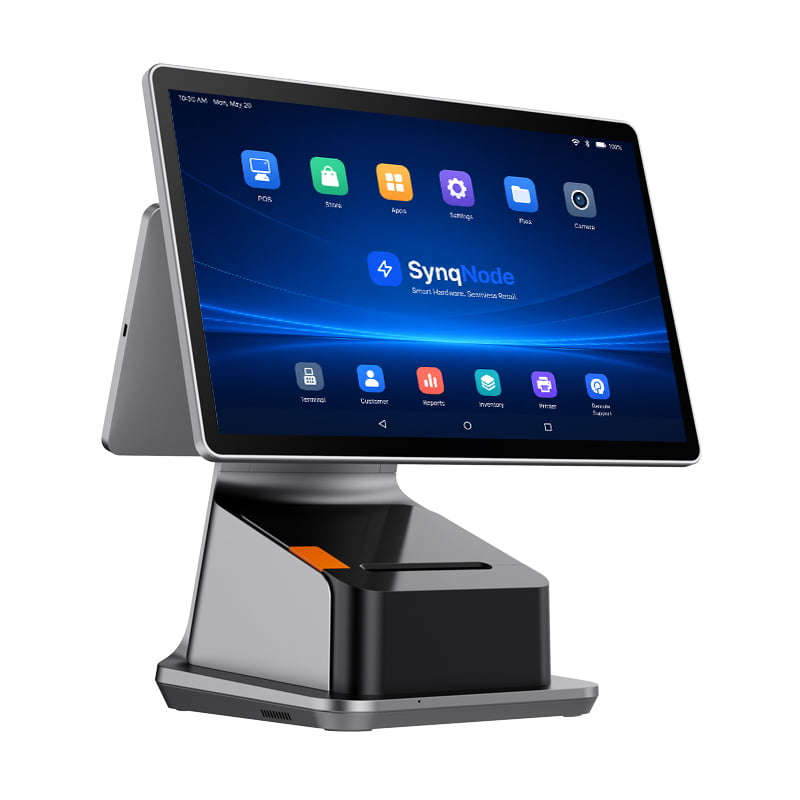

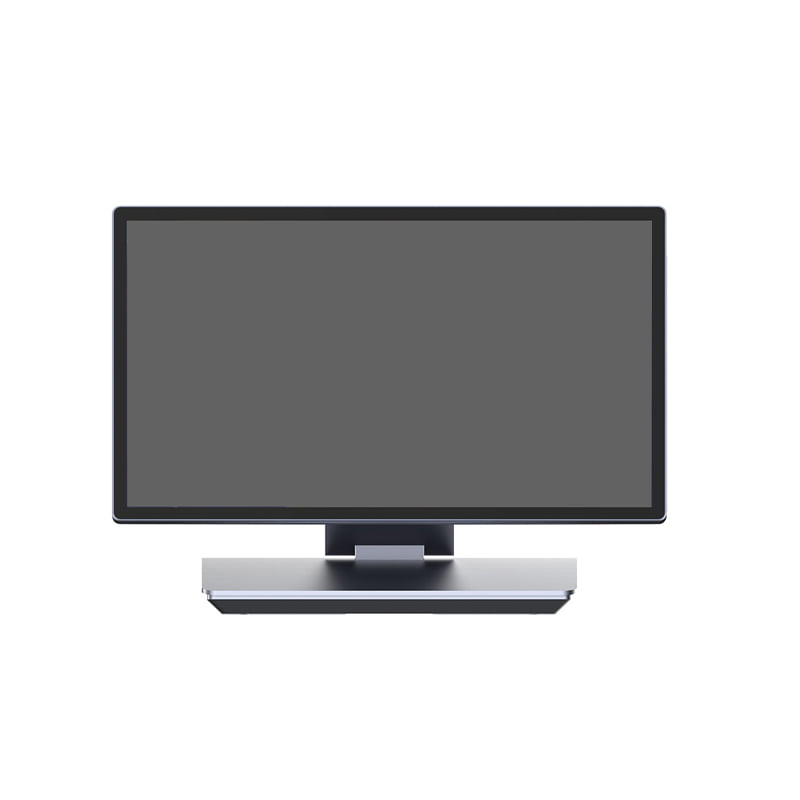

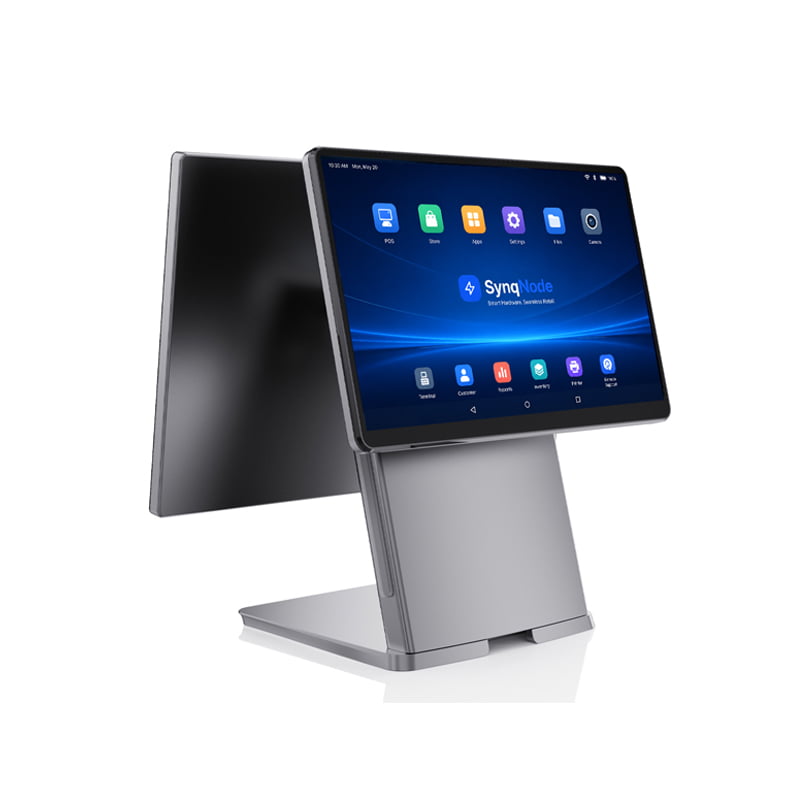

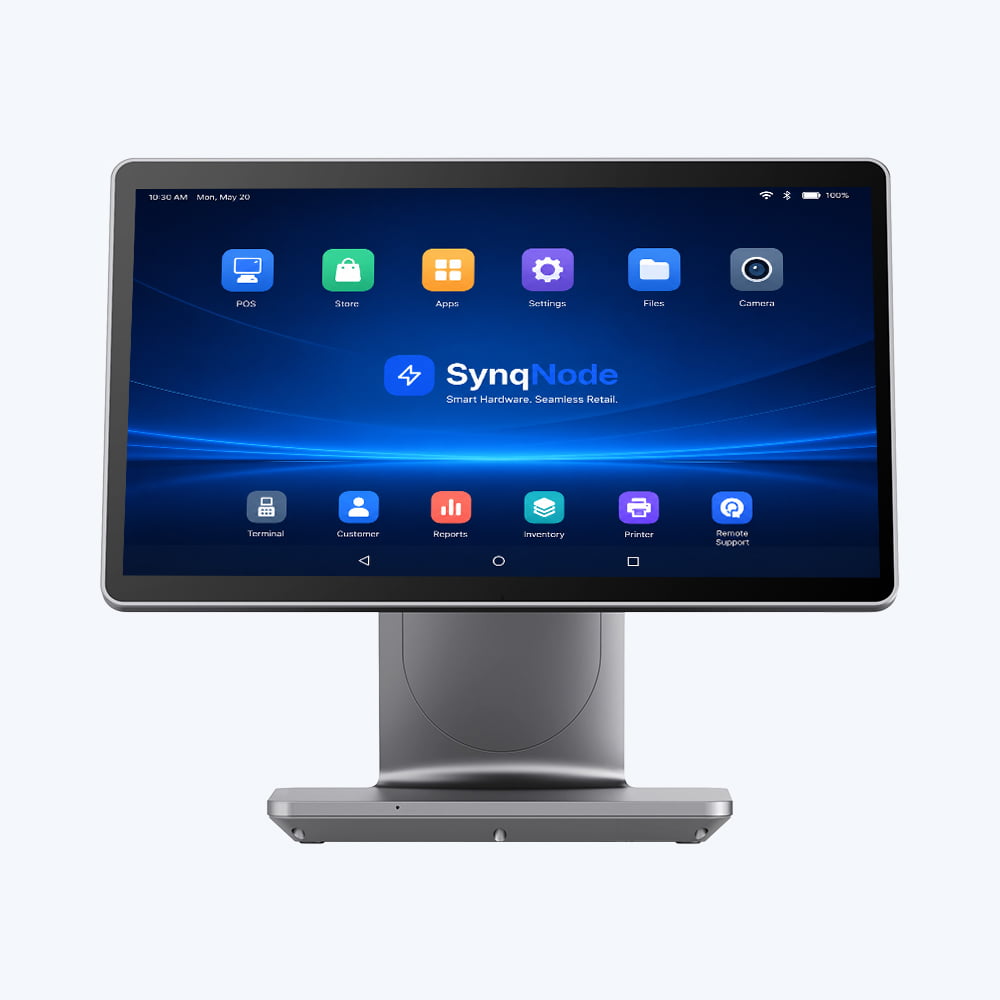

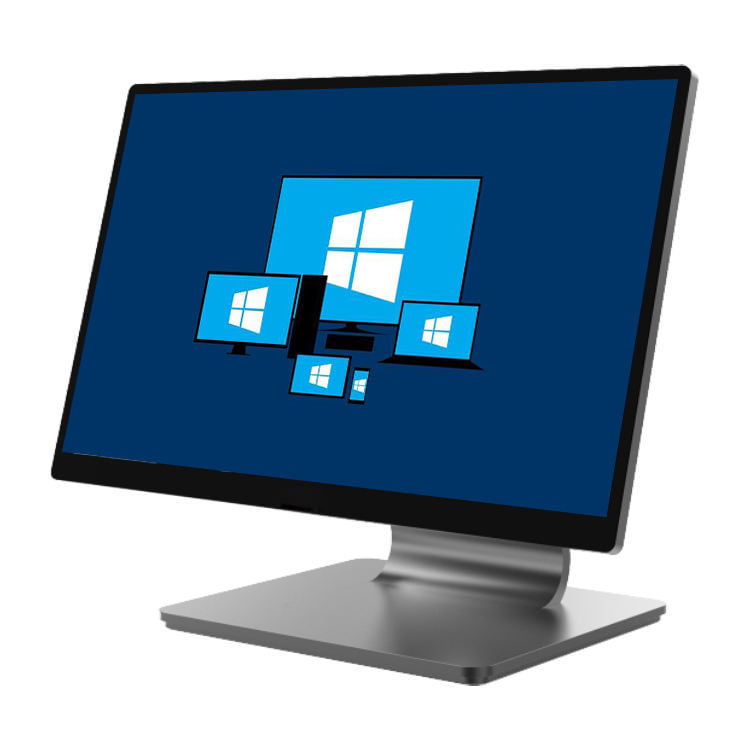

The Pro Series
We utilize aerospace-grade aluminum to forge a smooth unibody structure. This delivers exceptional heat dissipation and high-end countertop aesthetics. Engineered specifically for flagship retail environments and premium hospitality sectors.

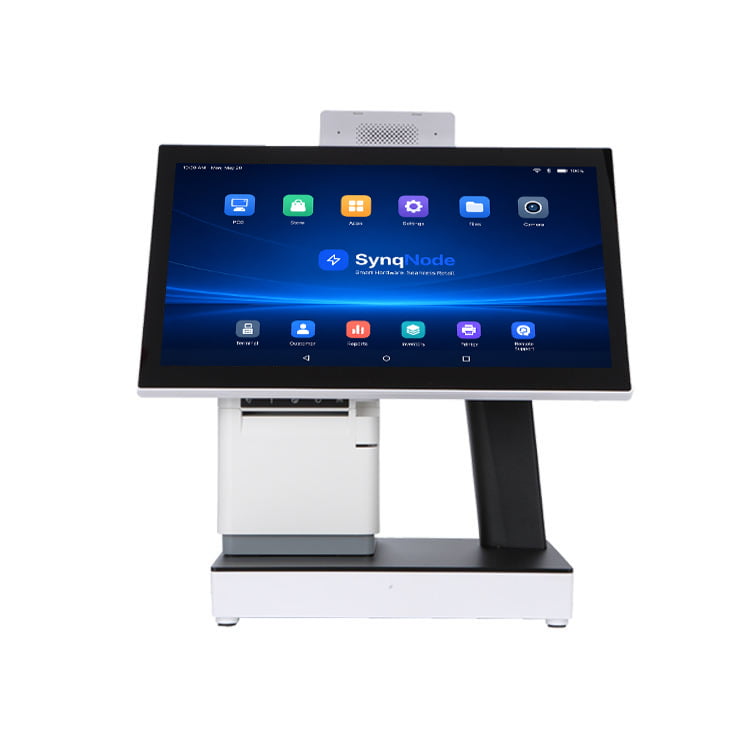

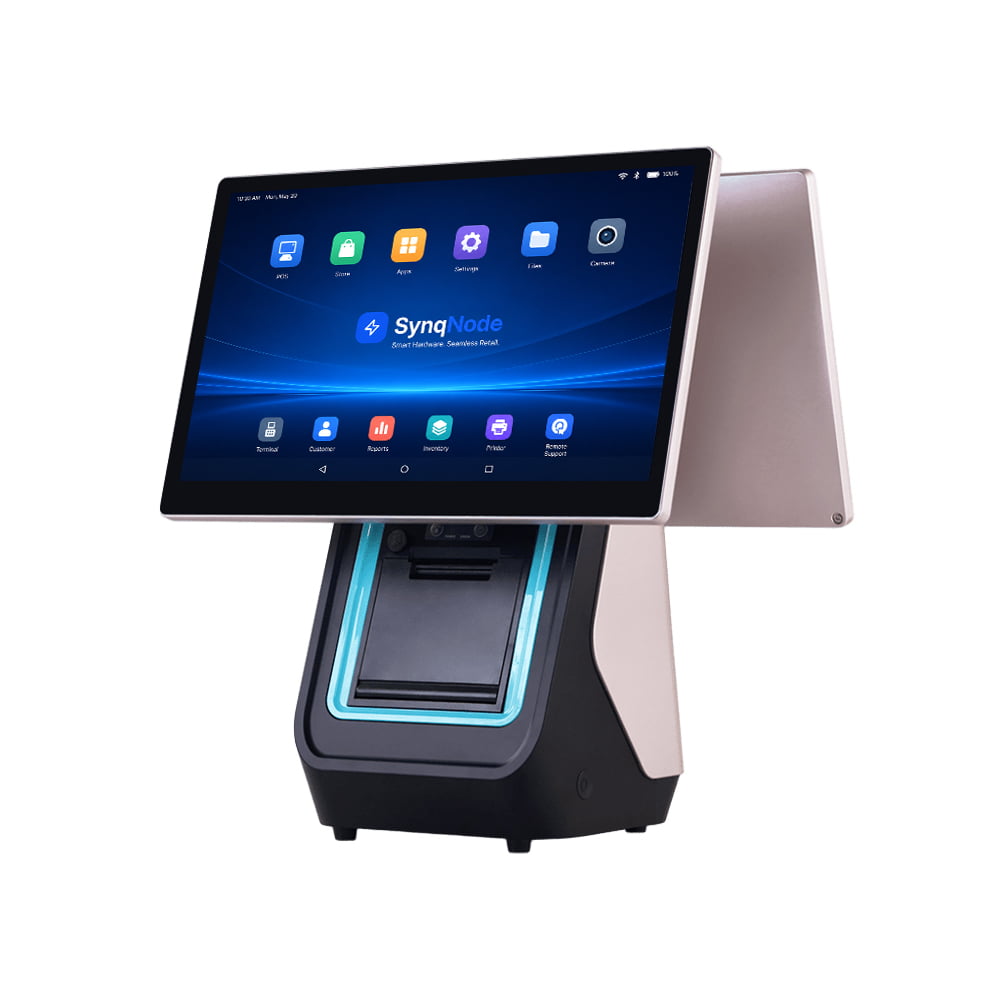

The Omni Series
We eliminate countertop cable clutter completely. We integrate high-speed thermal printers directly into a lightweight, cost-optimized chassis. This provides maximum functionality within minimal space for QSRs and convenience stores.

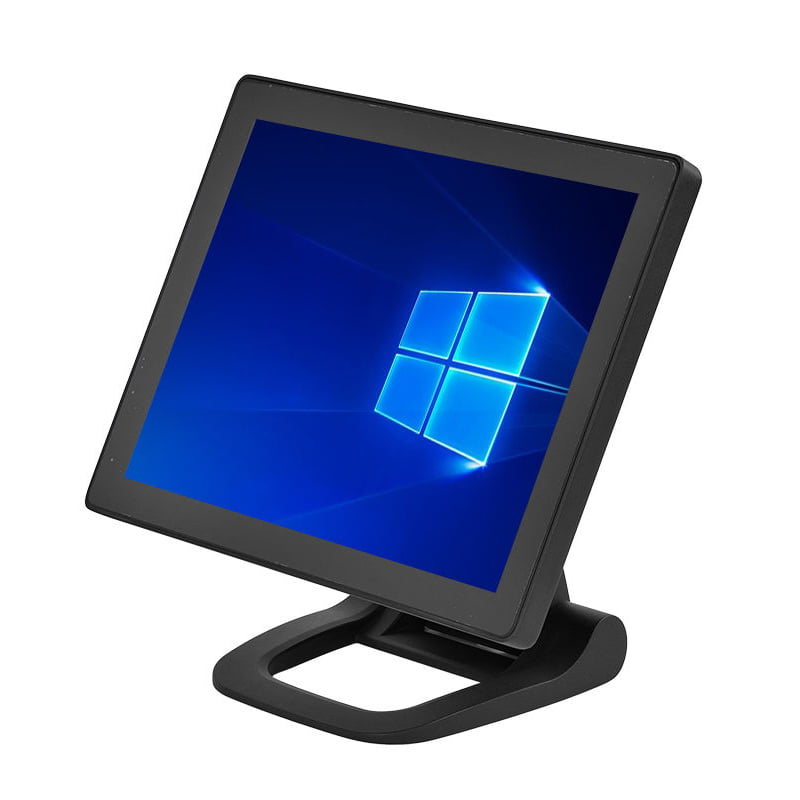

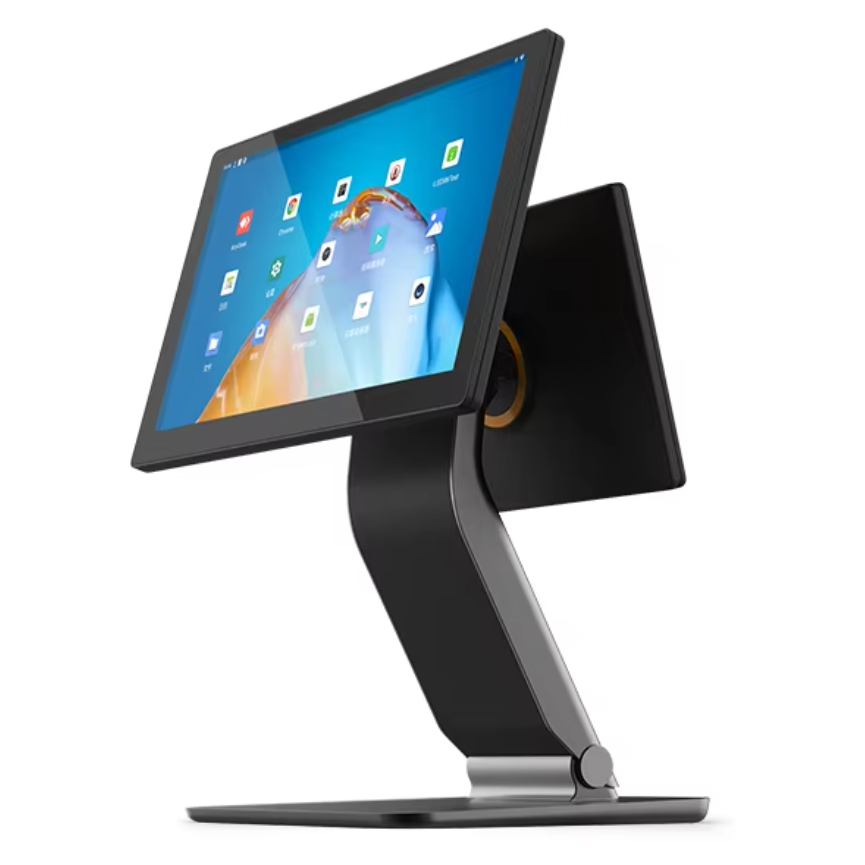

The Flex Series
We introduce unprecedented agility to retail hardware. Devices fold flat immediately to minimize international shipping costs and facilitate simple relocation. Ideal for pop-up stores and dynamic checkout layouts.

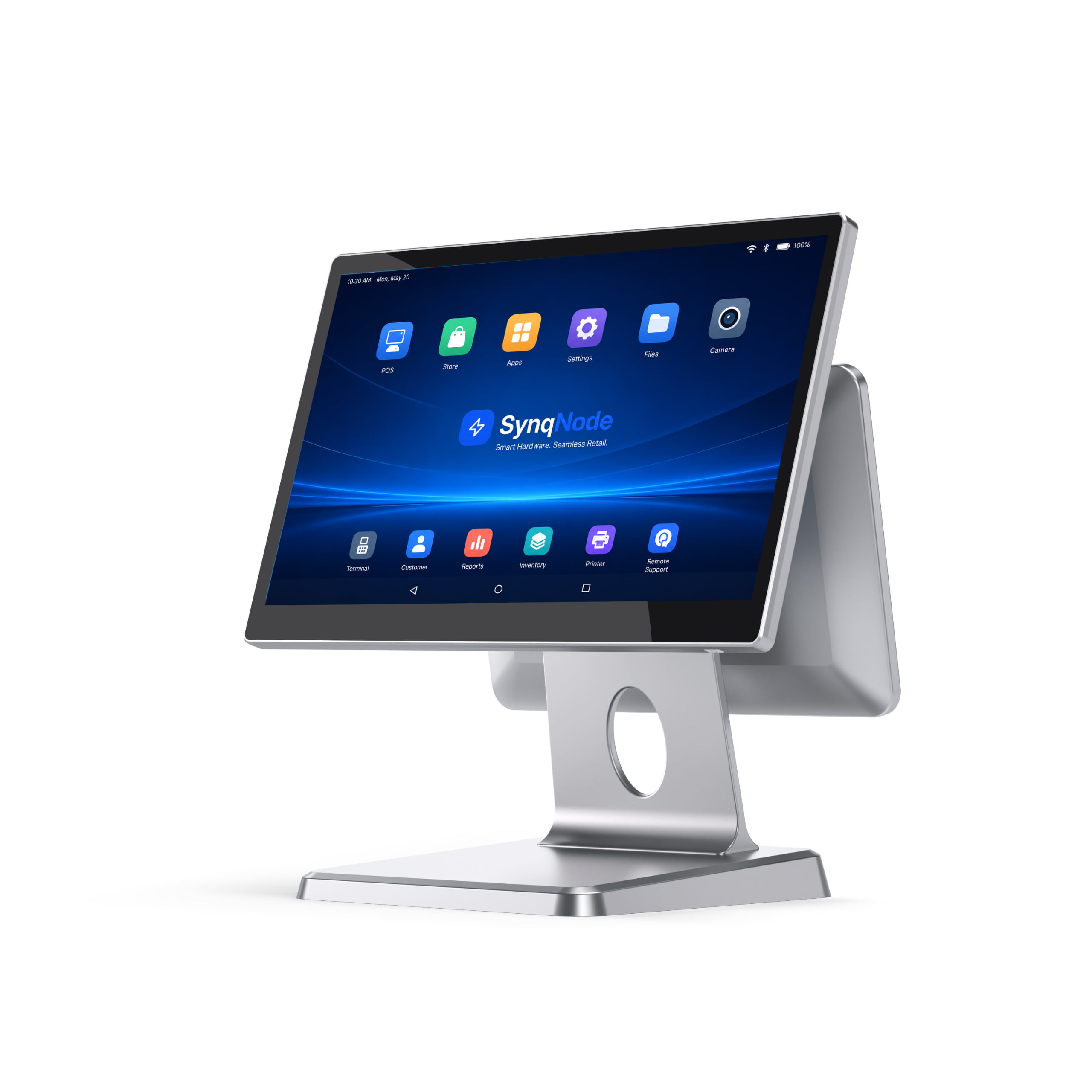

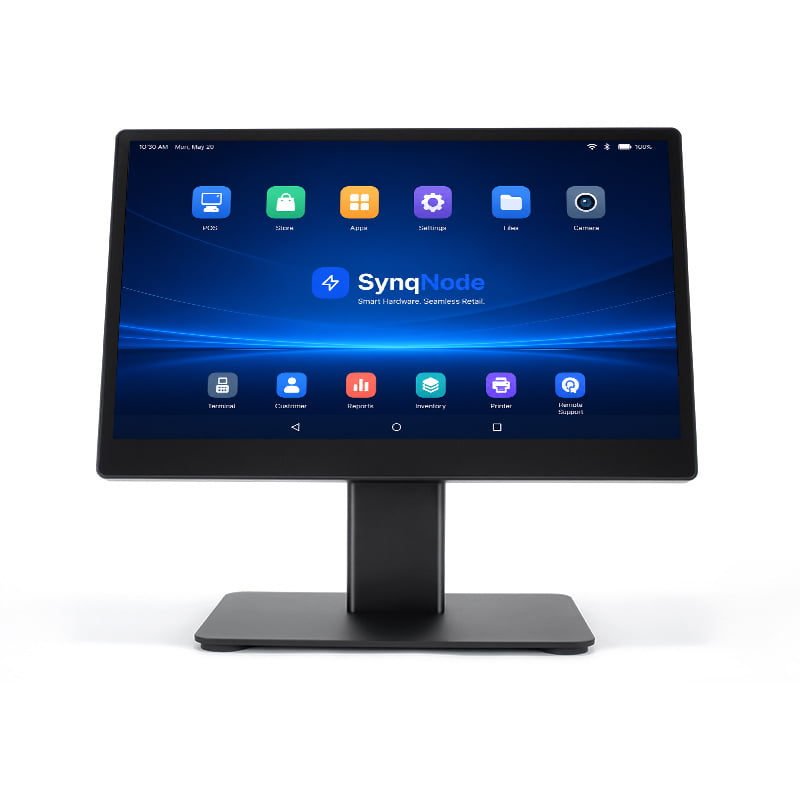

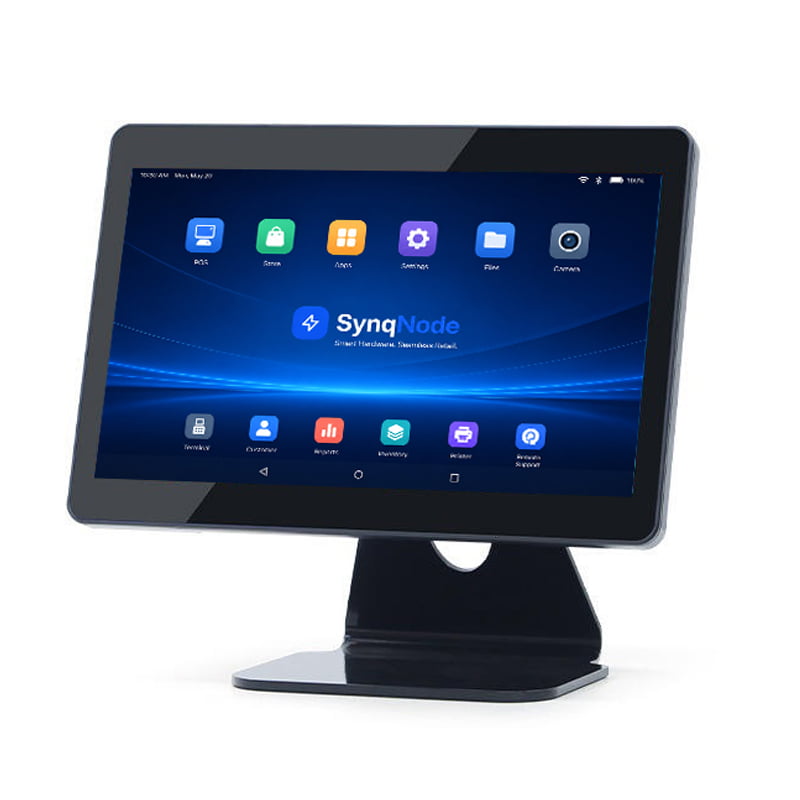

The Core Series
We adopt a hybrid construction to achieve optimal cost-efficiency without compromising modern aesthetics. This provides the reliable, high-volume hardware backbone for growing retail chains and global distributors.

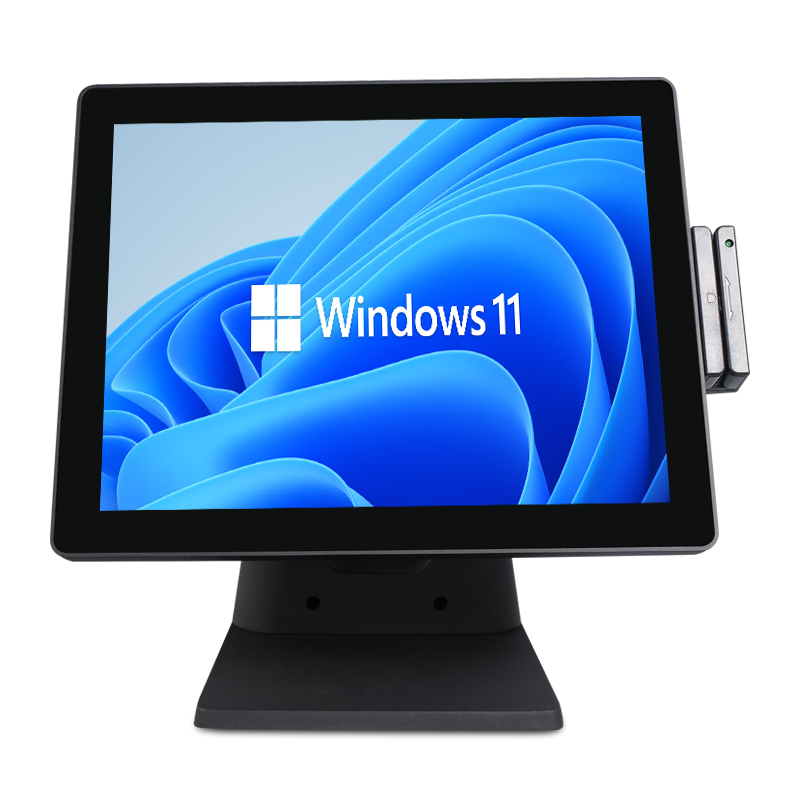

The Classic Series
Heavy-duty industrial bases ensure absolute stability. We retain the traditional 4:3 display ratio to guarantee smooth compatibility with legacy supermarket software. Built to withstand the harshest retail environments.
Engineered for Brutal Commercial Environments.
Consumer tablets dressed as commercial hardware do not survive a counter. True industrial metallurgy and thermal dynamics are what keep a terminal running through a lunch rush, a beer spill, and a decade of daily cash handling.
100% Fanless Die-Cast Aluminum
We use heavy-duty die-cast aluminum alloy housings as the heat sink itself. We eliminate moving parts and cooling fans completely, so thermal throttling never enters the transaction and the motherboard stays free of the dust and grease a fan would pull straight into it.
Concealed Cable Management
An engineered hollow stand and base routing system carries power cords, scanner cables, and network wires invisibly through the chassis. The counter reads as a single considered object instead of a cable bundle, which matters most in premium retail and hospitality environments.
IP65 True-Flat PCAP Touch
A zero-bezel, true-flat capacitive panel leaves no ledge for liquid or debris to collect on. High-speed ten-point multi-touch accuracy holds with wet hands, gloved hands, or a stylus, and the front surface wipes clean in one pass.
Industrial Core Specifications.
The platform underneath the enclosure is deliberately narrow, so a fleet stays uniform across every series on this page.
Windows 10 / 11 IoT Enterprise, or Android 11 / 13 (GMS optional)
Intel Elkhart Lake J6412, up to Core i3 / i5 / i7, fanless architecture
Rockchip RK3568 / RK3399 high-performance octa-core
15" (4:3) or 15.6" (16:9) TFT LCD, true-flat PCAP touch, 10-point
IP65 rated against water and dust ingress
Up to 16GB RAM + 512GB SSD (Windows) / 8GB RAM + 128GB ROM (Android)
6x USB 3.0 / 2.0, 2x RS232 serial, 1x Gigabit LAN, 1x RJ11 cash drawer, audio, VGA / HDMI
Snap-on MSR, iButton, 2D barcode scanner, VFD or LCD customer display. The complete EPOS component list sets out what each slot in the lane needs in interfaces and power.
Elevating the Checkout Experience Everywhere.
We specify the same chassis three different ways depending on what the counter has to absorb.
High-Volume Hospitality
Fast-paced order entry without a stall at the bar or the pass. The fanless, IP65-rated front panel deflects beer spills and kitchen grease instead of ingesting them, and there is no intake to clog.
Luxury Retail and Boutiques
We preserve brand prestige. The concealed-cable design and aluminum unibody keep the checkout counter as considered as the merchandise on display next to it, in a shop where the till is part of the interior.
Grocery and Convenience
Peripheral depth is the constraint, not compute. The serial and USB matrix connects weighing scales, payment terminals, and handheld scanners as one counter ecosystem rather than four adapters.
Your Software Platform. Our Hardware Foundation.
Generic branding is not the goal. For POS independent software vendors, we deliver the platform as white-label hardware: your logo laser-engraved into the aluminum chassis, BIOS splash and boot screens customized to launch your application the moment the unit powers up, and OPOS / JPOS-compatible driver packages and SDKs supplied for every modular attachment — MSR, VFD, scanner, iButton.
We design the hardware to disappear into your product. Your customers should see your software and your brand, not an operating system.
