SN-P60 Ultra-Thin Aluminum POS Terminal.
A masterclass in commercial hardware aesthetics. The SN-P60 redefines the checkout counter. An ultra-slim 12mm display profile and a solid aluminum alloy chassis work as one unit, delivering both visual elegance and industrial-grade reliability.
- ✓ Design: Striking 12mm Ultra-Thin Screen Profile
- ✓ Build: Premium Aerospace-Grade Aluminum Stand
- ✓ Cable Management: Invisible Cable Routing Design
- ✓ Platform: Cross-Compatible (Windows, Linux, Android)
Engineered for Premium Retail Spaces.
The SN-P60 clears clunky, outdated registers off your countertop. Its architecture complements high-end environments. Every customer gets a frictionless checkout that lifts your brand image.

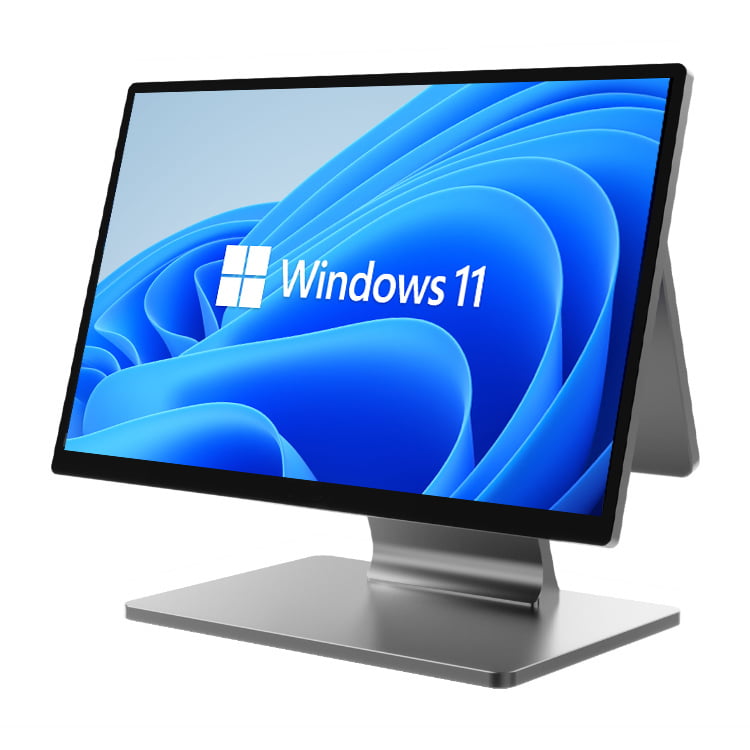

A Striking 12mm Profile.

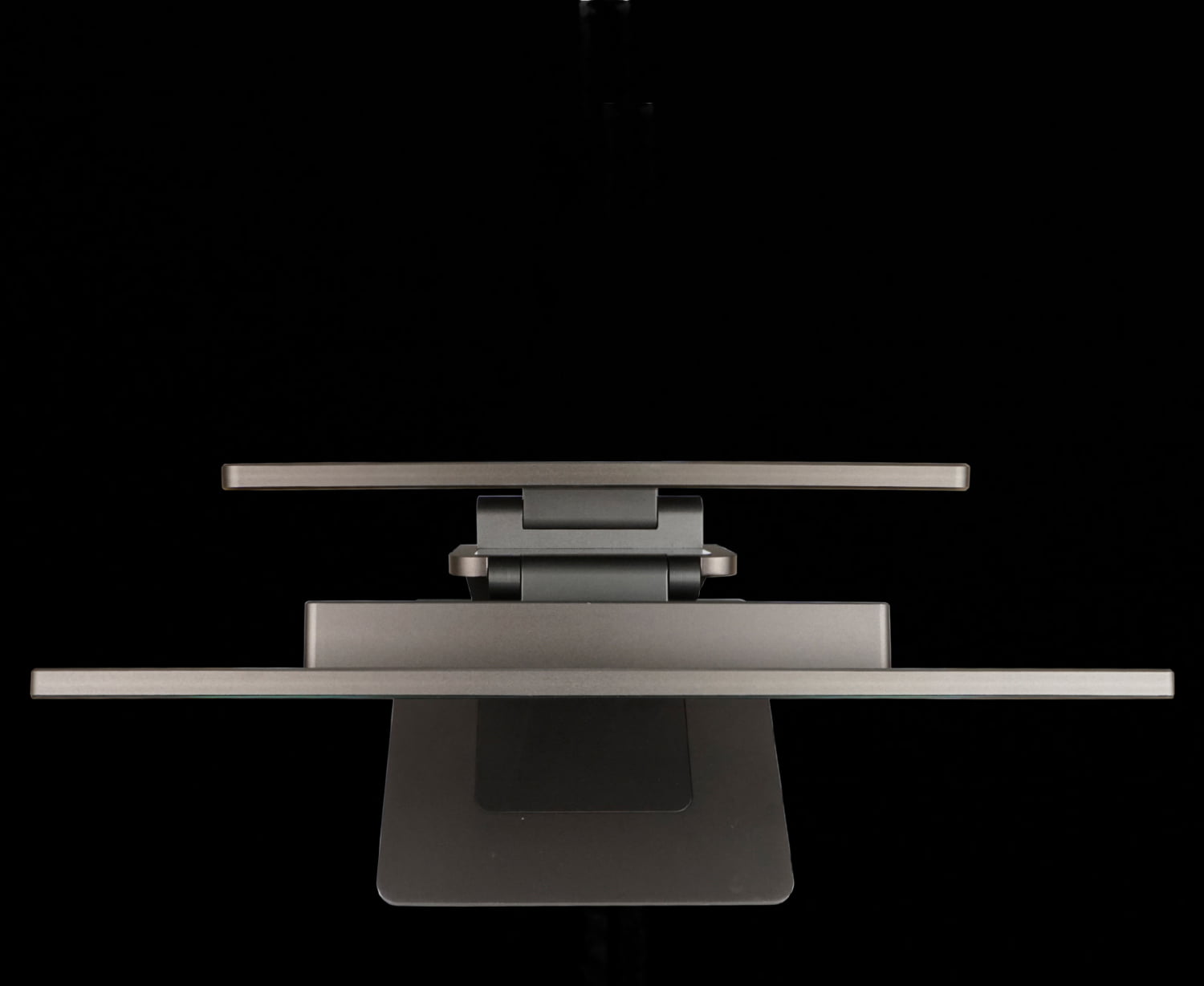

Heavy, bulky designs stay in the past. An advanced internal component layout brings display thickness down to an astonishing 12mm. Valuable counter space opens up. A sleek, futuristic interaction node lands in your store without compromising performance.

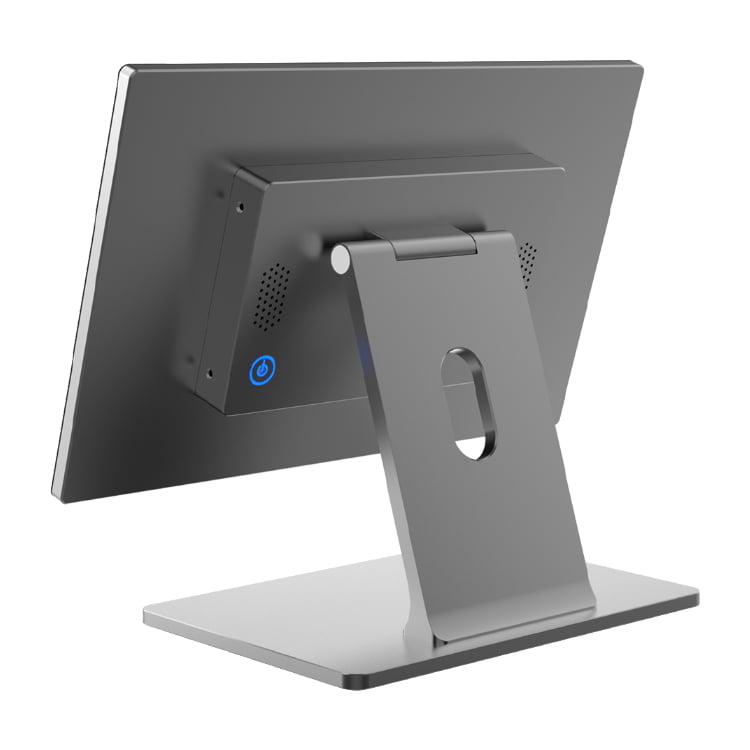

Aerospace-Grade Aluminum. Zero Clutter.

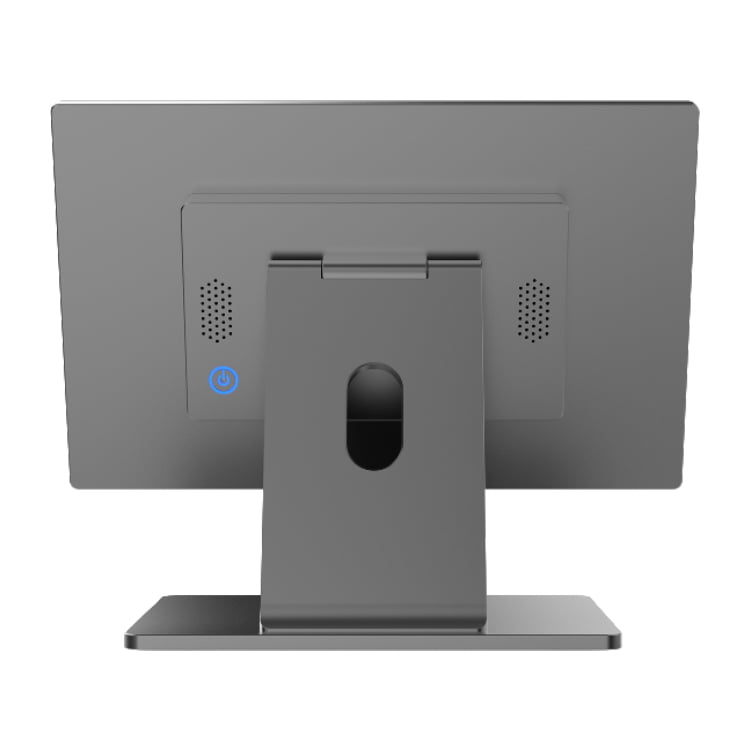

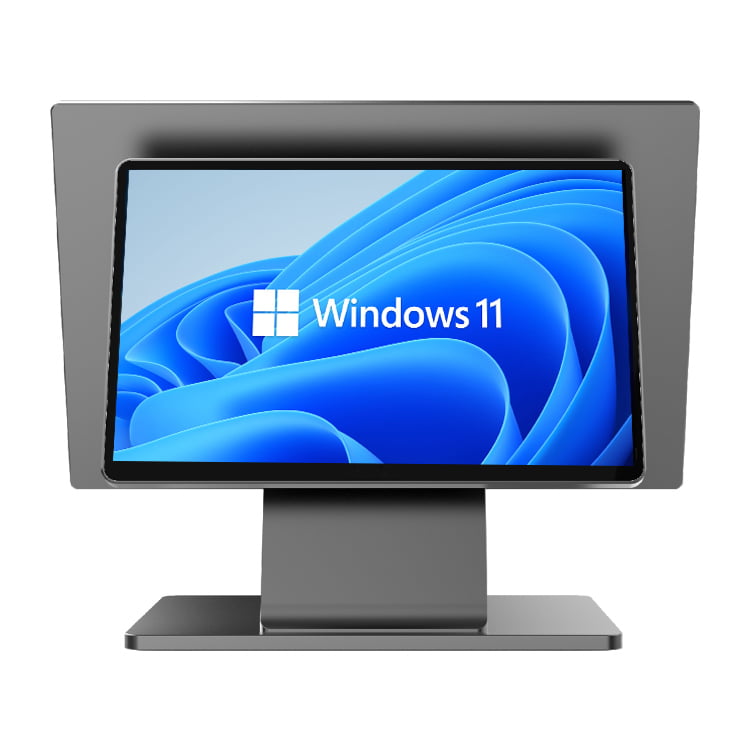

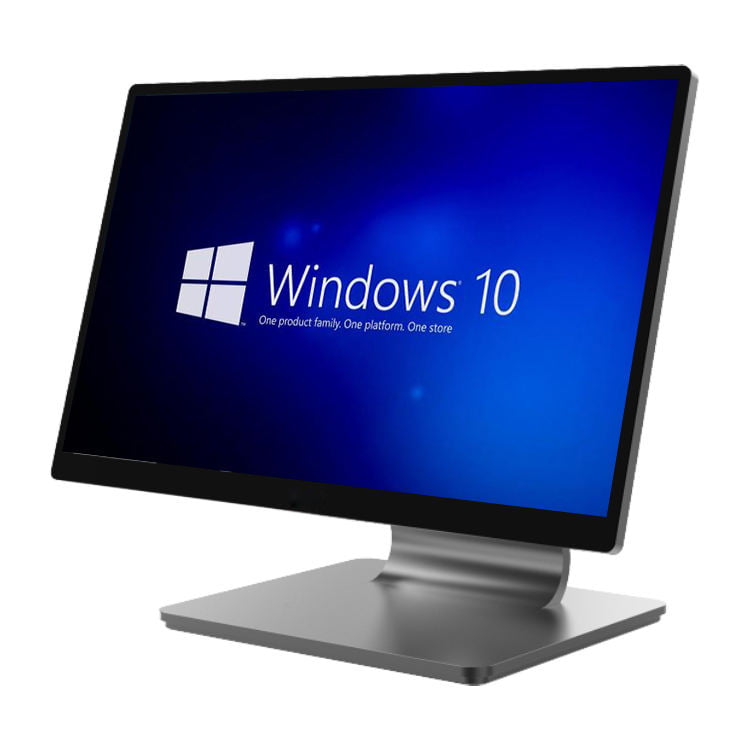

Your checkout counter stays pristine without effort. A rock-solid, die-cast aluminum alloy stand delivers extreme durability for high-traffic environments. The ingeniously hidden cable management routes messy cables and power adapters out of sight.
Enhanced Customer Engagement.

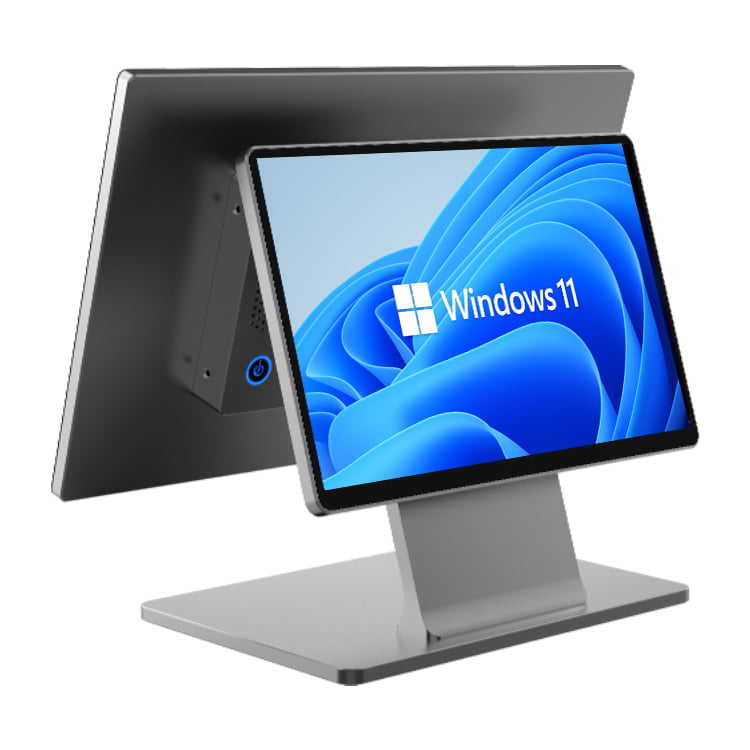

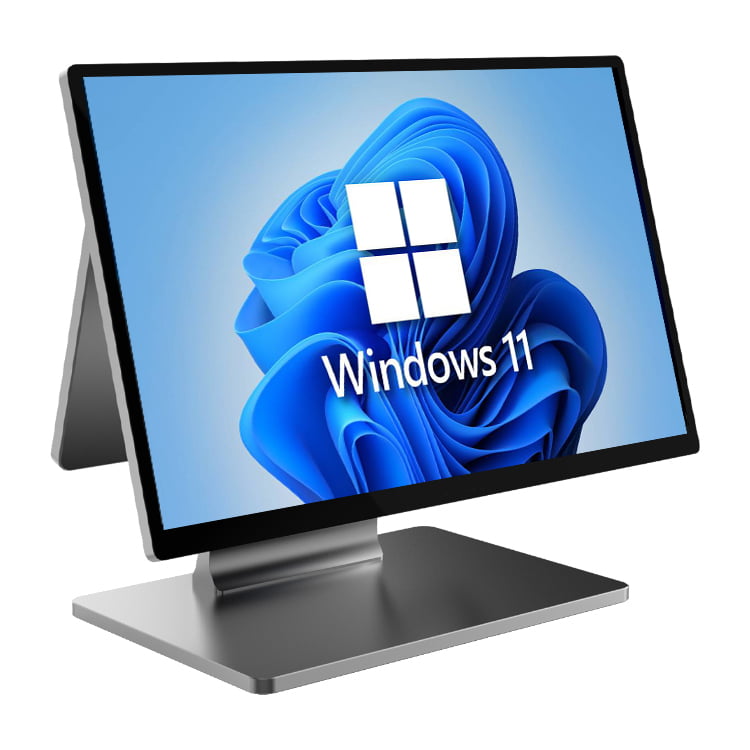

The terminal gives the buyer absolute transaction transparency. Optional customer-facing screens (11.6" or 15.6") run alongside the main panel. Those screens show high-resolution promotional visuals, live pricing updates and intuitive QR payment codes brilliantly.
Uncompromising Computing Power.
Our ISV and SI partners get total software flexibility. Whatever your proprietary application needs — Windows 11, Linux or Android — the SN-P60 delivers. With architectures ranging from Rockchip RK3568 to Intel Core i7 processors, it runs complex SaaS workflows 24/7.
Windows 11
Intel Core i5 / i7. Full desktop-class computing for demanding SaaS environments.
Android
Rockchip RK3568 / RK3588 / RK3576. Power-efficient ARM architecture for cloud POS.
Linux
Open, stable, and secure. Ideal for custom-built proprietary retail platforms.
SN-P60 Technical Specifications.
| Operating System | Windows 10 / 11, Windows 10 IoT, Windows 11 IoT LTSC 2025, Linux Android 11 on the Rockchip platform |
| CPU Options (Windows) | Intel Celeron J6412 / Core i3 / Core i5 (optional) |
| CPU Options (Android) | Rockchip RK3568 / RK3588 / RK3576 |
| Memory & Storage | 4GB / 8GB / 16GB DDR4 SO-DIMM 64GB / 128GB / 256GB M.2 NVMe SSD |
| Main Display | 15.6" TFT LCD, 1920 × 1080, 16:9 aspect ratio |
| Touch Screen | True-flat projected capacitive, 10-point |
| Second Display | 11.6" LCD, optional Independent dual-display output |
| Serial Ports | 1 × COM (RS232), expandable |
| USB Ports | 2 × USB 3.0 + 4 × USB 2.0 |
| LAN | 1 × RJ45 Gigabit Ethernet (10/100/1000 Mbps) |
| Cash Drawer Port | 1 × RJ11 (on supported motherboards) |
| Audio / Video | 1 × line-out audio, 1 × HDMI / VGA (internal output) |
| Power Supply | Input AC 100–240V, 50/60Hz; output DC 12V 5A |
| Enclosure & Cooling | Full aluminum alloy fanless chassis No fan at all; the aluminum chassis itself acts as the heatsink |
| Material | Full Aluminum Alloy Chassis & Stand |
| Cable Management | Advanced Hidden Cable Design |
| Chassis Design | Ultra-thin fanless chassis |
| BIOS | Custom BIOS / DMI parameter injection supported |
| Package Dimensions | 440 × 445 × 145 mm |
| Gross Weight | 5.2 kg |
| Certifications | CE, FCC, RoHS |
| Reliability | 48-hour stress test on every unit before shipment |
Which desktop terminal fits the counter?
Six counter units on one product line, split by silicon, printer and panel rather than by price tier. The two closest alternatives to this page:
Planning the deployment? See how these units work in the field, or read the buying and comparison material.
SN-P60 FAQ
6 questions buyers ask before ordering.

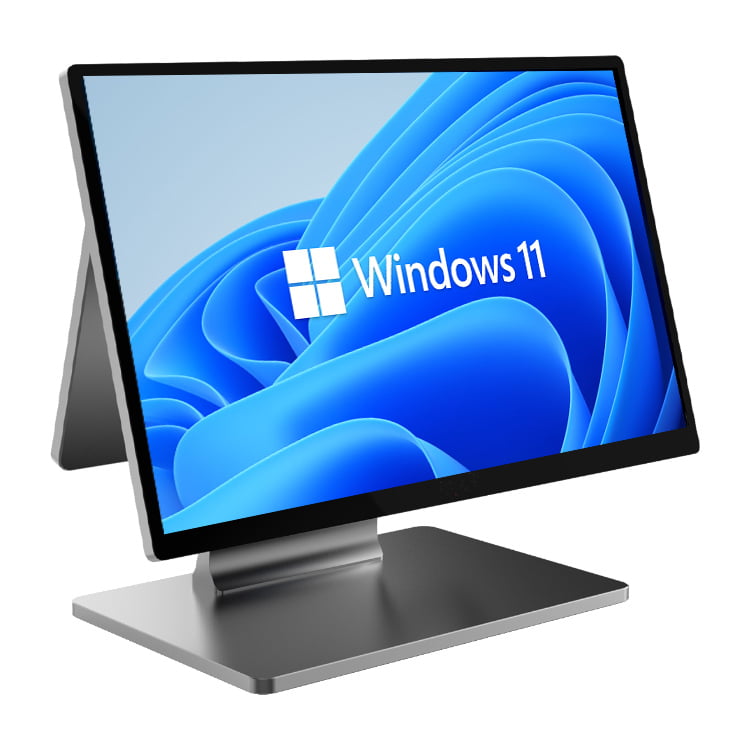

What separates the SN-P60 from the SN-P20?
+
The construction. The SN-P20 carries its mainboard in the base stand behind a concealed interface cover, so every cable runs inside the stand and the board sheds heat from there; the SN-P60 is the fanless ultra-thin build, with the aluminum chassis acting as the heatsink and no fan at all. Screen, processor list, memory range and port set match, so the decision comes down to counter depth against cable concealment and thermal headroom.
Does the thin body cost me ports?
+
No. Both models carry the same expansion list: USB, RS232, HDMI, VGA, LAN and RJ11. A cash drawer, a scale, a second monitor and a wired network all still land on the unit.
Why pay for an aluminum chassis rather than a plastic housing?
+
The thin body is the point. A slim chassis returns counter depth, which matters on a shallow service point, a kiosk face, or a counter that also has to hold a scale. The aluminum chassis carries the thinness without the housing flexing, and it spreads board heat across the surface instead of trapping it behind the panel.
Which processor do I get on each platform?
+
Intel Celeron J6412, Core i3 or Core i5 on Windows, and Rockchip RK3568, RK3588 or RK3576 on Android. The same page lists Windows 10/11, Windows 10 IoT, Windows 11 IoT LTSC 2025 and Linux, so a Linux deployment specifies against the Intel side.
Can it drive a customer-facing screen as well?
+
The main panel is a 15.6-inch FHD touchscreen at 1920 × 1080 and the secondary display is optional at 15.6 or 11.6 inches. Order the secondary screen with the terminal — it is a configuration item, not an aftermarket add-on.
How much memory and storage does it take?
+
4GB, 8GB or 16GB of DDR4 SO-DIMM and a 64GB, 128GB or 256GB M.2 NVMe SSD, the same envelope as the SN-P20. Because the two models share the panel, the silicon and the storage range, a fleet that runs both keeps one spares pool and one image per processor.
Something not covered here? Ask our engineering team.
Deploy the SN-P60 in Your Next Project.
We guarantee hardware reliability. Whether you run a software vendor seeking a stable platform or a retail chain upgrading hundreds of stores, our engineering team stands ready to support your global rollout. We welcome bulk orders and OEM customization.
