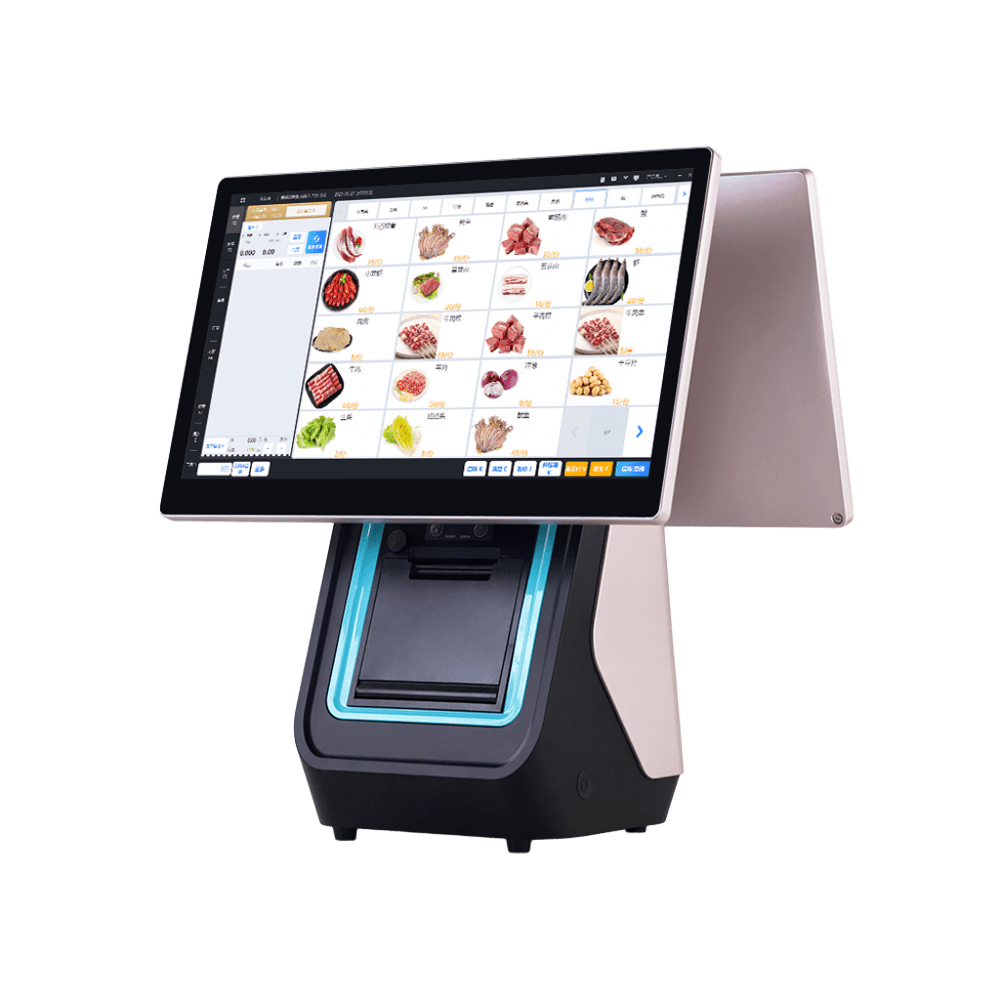

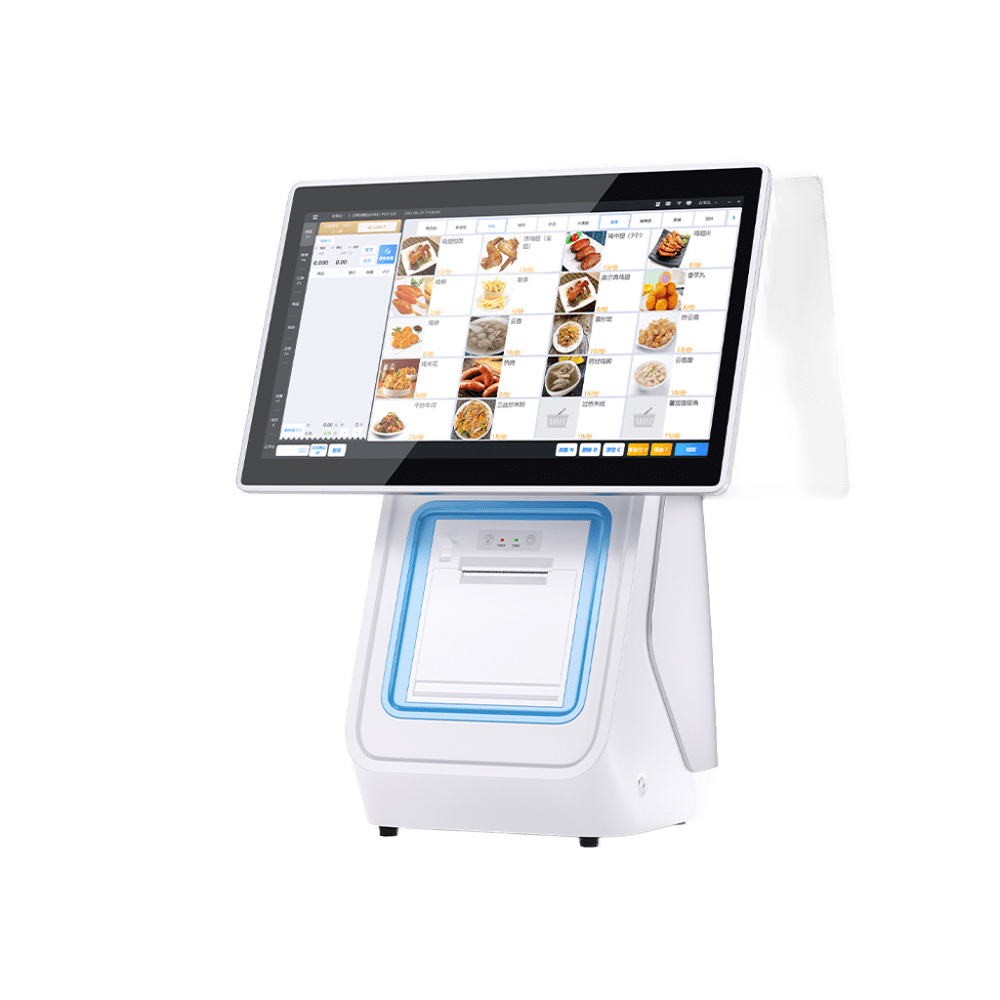

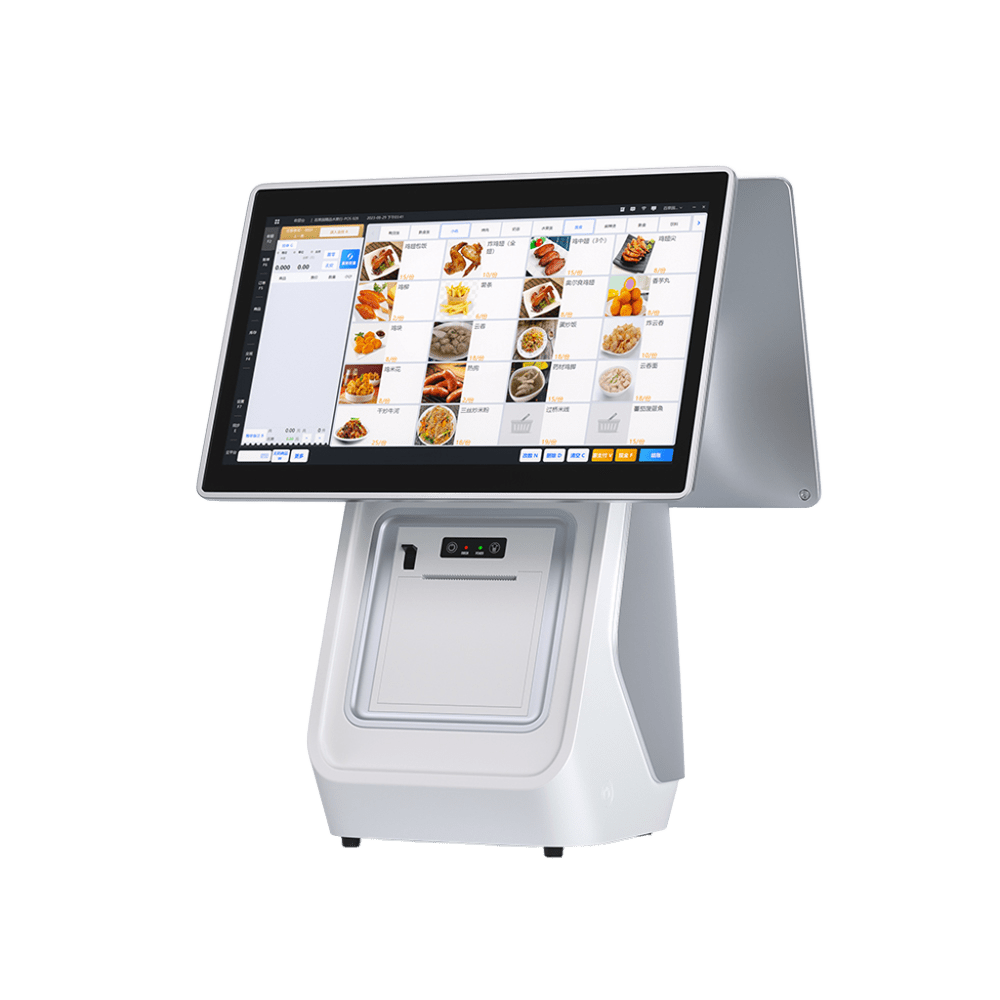

SN-W50 15.6″ Touch Screen POS Terminal with Printer
Retail hardware specified for the work it actually does.

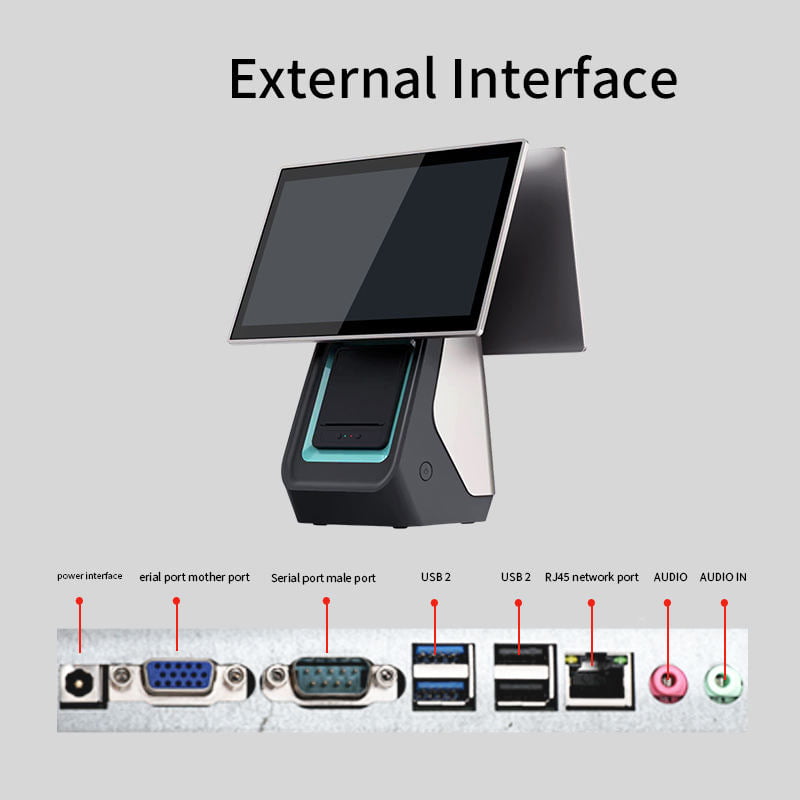

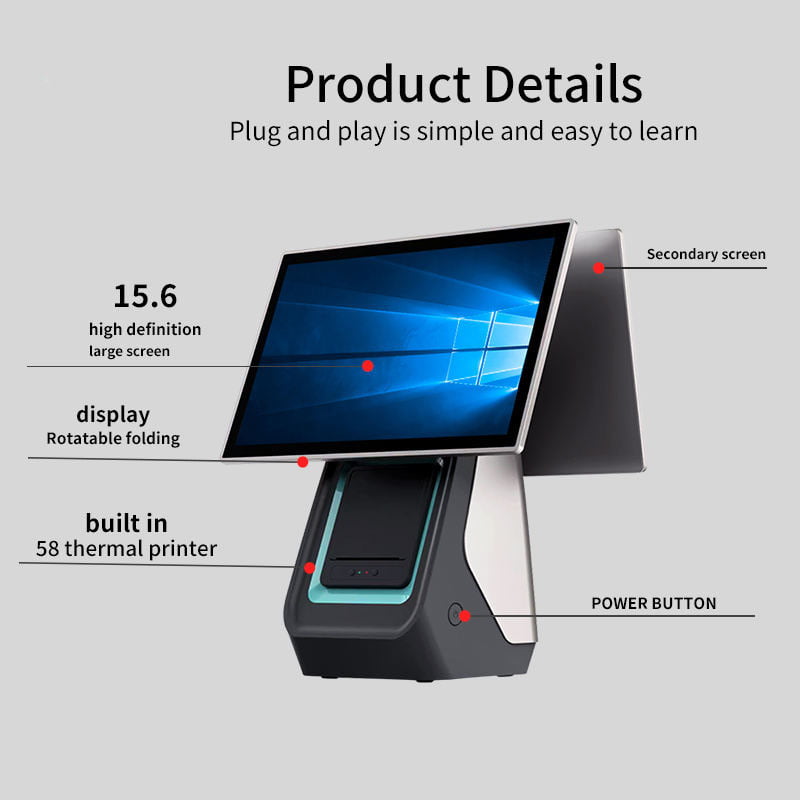

The SN-W50 builds a 58mm/80mm thermal receipt printer into the stand, so the counter carries one box instead of two and no cable runs between them. You order the paper width with the terminal and we calibrate the printer for it before shipping. Behind it sits a 15.6-inch Windows POS with 6 USB and 1 RS232.
- MOQ 1 with 10–15 day lead time on stock models
- Spec sheets and SDK released before the order
- 24-month warranty, OEM branding available on volume orders
- SKU
- SQN-SN-W50-15-6-
- Availability
- In Stock
- Lead Time
- 10-15 business days
- Warranty
- 24 months standard
A steel-weighted base that stays where you put it
We weight the base with steel, so the terminal stays where the cashier puts it — no creeping across the counter when someone taps hard. It runs all day without a break, and the parts that wear first are the ones you can swap on site.
MSR, iButton and a second display on side rails
Side-mount rails take an MSR, an iButton reader or a VFD and LCD customer display, so you configure one terminal for a market that still swipes cards and another that does not. You order the modules with the terminals and fit them before shipping.
One SKU and one spare-parts list for the fleet
You buy one model and one spare-parts list for the whole estate. A terminal pulled from one store repairs another, and your IT team learns one machine instead of five — that is where the fleet cost actually comes down.
Technical Details
Full specifications, documentation, and customization options for engineering evaluation.
| Main Display | 15.6" TFT LCD, 1366x768 or 1920x1080 (FHD optional) |
|---|---|
| Customer Display | Optional 11.6" / 15.6" LCD (Touch / Non-touch) or VFD (2 Lines x 20 Characters) |
| Processor (CPU) | Intel® Celeron® J1900 / J6412/ Core™ i3 / Core™ i5 |
| Memory (RAM) | 4GB / 8GB / 16GB DDR3L or DDR4 (Depends on CPU) |
| Storage (ROM) | 64GB / 128GB / 256GB / 512GB mSATA SSD |
| Dimensions | 34*23*44cm |
| Integrated Printer |
Printer Type: Built-in Thermal Receipt Printer (Direct Thermal) Paper Width: 58mm or 80mm (Configurable based on order) Print Speed: 160mm/s (High-speed output) Cutter Mechanism: Auto-cutter integrated (Partial/Full cut supported) Paper Loading: Drop-in easy loading design |
| NFC | Optional NFC module (factory-fitted), supports TYPE-A&B cards, FeliCa (F), ISO14443, 15693(M), 18092(NFCCIP-1). |
| Peripheral Options | MSR, iButton, IC / ID / NFC / RFID Card / Fingerprint Sensor / Camera |
| Barcode Scanner | Built-in 2D scanner. 2D symbologies: Aztec Code, Data Matrix Code, PDF417, Micro PDF417, QR Code, Micro QR Code. 1D symbologies: Codabar, Code 11, Code 128, UPC-A, UPC-E, Code 32, Code 39, Code 93, EAN-8, EAN-13, ISBN, ISSN, GS1 DataBar (RSS-14), ITF, Matrix 2 of 5. |
| 4G Module (Optional) | Embedded 4G Module, Micro SIM: LTE-FDD:B1/3/5/8 LTE-TDD:B34/38/39/40/41 |
| Power Supply | 12DC 7A 100-240V |
| Environment | Operating: 0°C to 40°C | Storage: -20°C to 60°C |
Frequently Asked Questions
Common inquiries from retailers, system integrators, and procurement teams.
Is the SN-W50 suitable for harsh environments like restaurant kitchens?
Yes. The front panel is sealed and the board runs without a fan, so grease and splashes do not find their way inside. Wipe the glass, and the terminal keeps working.
Can I order this model barebone (without RAM/SSD)?
Yes. We ship barebone units to distributors who assemble and configure locally. That also lowers the import duty you pay.
What makes this model ideal for mass deployment?
One design, one component set, tested as a batch. Every unit in a thousand-terminal order comes off the same line with the same board revision, so your support team troubleshoots one machine instead of a mix.
Request a Quote for
SN-W50 15.6″ Touch Screen POS Terminal with Printer
Our engineering team comes back with volume pricing, OEM options and lead time within one business day.
- Response within 24 hours
- NDA available for enterprise projects
- Free developer sample for qualified integrators
