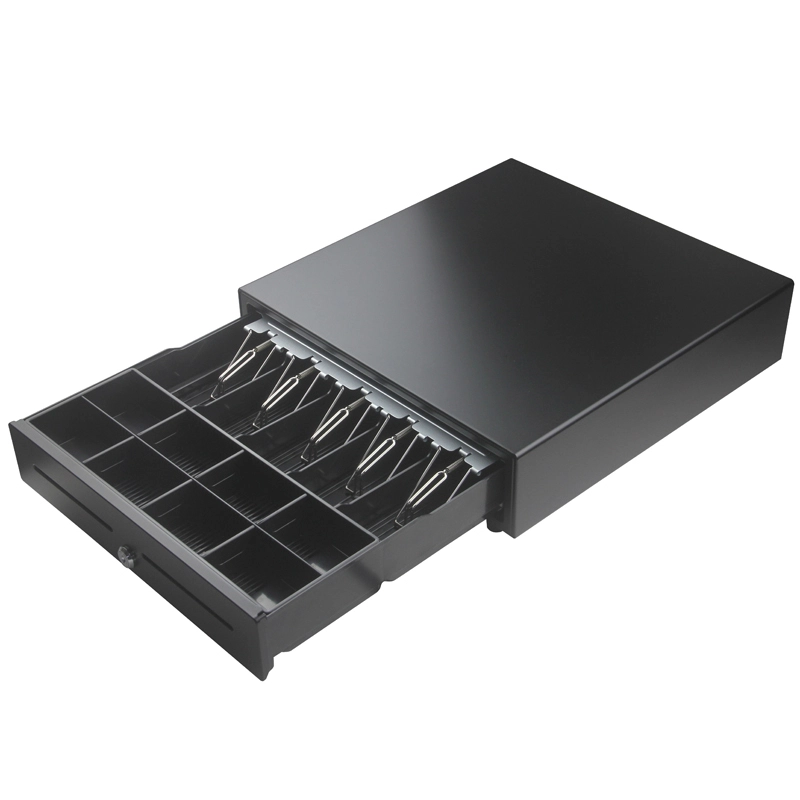

SN-CD330 Cash Drawer.
330 mm Wide, 90 mm Tall.
The SN-CD330 measures 330 x 360 x 90 mm without its rubber feet and weighs 3.5 kg. On a counter that was never built around a till, that 330 mm width is what leaves room for the receipt printer, the card terminal and the bag in the same place. A cold-rolled steel chassis and a 3-position key lock come as standard.
3 Bill Slots, 4 Coin Trays.
Inside the 330 mm chassis sit 3 bill compartments and 4 coin compartments, which is the float a café, food truck or small boutique turns over in a single shift. Heavy-duty metal wire grippers hold each note bundle flat, so nothing slides when the tray closes. The front panel is steel by default, and stainless steel is available as an option.
Cold-Rolled Steel,
3.5 kg Net.

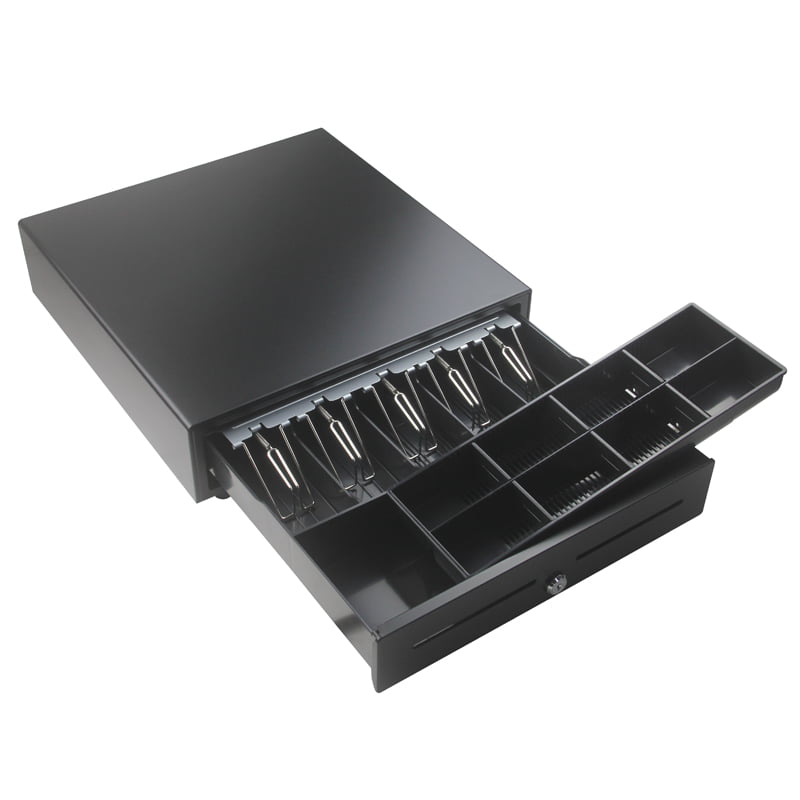

The chassis is thick-gauge cold-rolled steel, and the finished drawer weighs 3.5 kg. Heavy-duty ball bearing rollers carry the tray, so it runs out level and quiet instead of scraping on the counter. Every mechanism is tested past 1,000,000 open-and-close cycles before the model ships.
RJ11 / RJ12, 12V or 24V.
Universal Interface & 3-Position Security
A standard RJ11/RJ12 port takes the kick-out signal from your receipt printer, and the solenoid accepts 12V or 24V, so the drawer drops into the printer model you already stock.
A commercial-grade 3-position key lock gives three states: key-open for manual access, online for printer-triggered opening, and fully locked when the lane closes. A built-in micro-switch reports open and closed status back to the POS.
Matte Black or Ivory White
The drawer ships in matte black or ivory white. Black disappears under a dark counter; ivory blends with light wood and stone. Custom colors are available on OEM orders.
SN-CD330 Specifications.
| Attribute | Specification |
|---|---|
| Model Number | SN-CD330 |
| Physical Dimensions | 330(W) x 360(D) x 90(H) mm (Without Rubber Feet) |
| Chassis Material | Thick Gauge Cold-Rolled Steel |
| Front Panel | Steel Construction (Optional Stainless Steel Front) |
| Tray Configuration | 3 Bill Compartments, 4 Coin Compartments |
| Bill Clips | Heavy-Duty Metal Wire Grippers |
| Locking Mechanism | 3-Position Key Lock (Manual, Electronic, Locked) |
| Roller System | Heavy-Duty Ball Bearing Rollers |
| Interface / Connectivity | RJ11 / RJ12 (Standard Receipt Printer Interface) |
| Solenoid Voltage | 12V / 24V (Compatible with all major printers) |
| Micro-Switch | Built-in (Provides Drawer Open/Close Status) |
| Lifecycle Durability | Tested for over 1,000,000 Operations |
| Net Weight | 3.5 KG |
| Color Options | Matte Black / Ivory White / Custom Colors (OEM) |
Where a 330 mm Drawer Fits.
A 330 mm drawer suits counters that were never designed around a till: a food truck service window, a café bar top, a pop-up stall that packs down every night, a boutique counter shared with the gift wrap. Where floor space is fixed, the drawer gives counter space back.
Food Trucks
Corner Cafés
Boutique Retail
Which cash drawer fits the counter?
Three steel drawers on the same 1,000,000-operation platform, split by footprint and tray layout. The two closest alternatives to this page:
Planning the deployment? See how these units are used in the field, or read the buying and comparison material.
SN-CD330 FAQ
What are the SN-CD330 dimensions and weight?
+
330 mm wide, 360 mm deep and 90 mm tall measured without the rubber feet, at 3.5 kg net. Width is the number that decides whether it fits a tight counter, but check the 360 mm depth as well before you specify it.
Will it work with the receipt printer we already use?
+
If that printer has an RJ11/RJ12 drawer port and a 12V or 24V kick-out, yes. The same unit accepts both voltages, and the built-in micro-switch reports open and closed status back to the POS.
How much cash does it hold?
+
3 bill compartments with heavy-duty metal wire grippers and 4 coin compartments. That covers a single-shift float for a café, food truck or small boutique; if you need more note capacity, the SN-CD410 is the heavier drawer in the range.
How long does the mechanism last?
+
Every drawer is tested past 1,000,000 open-and-close cycles, and the tray runs on heavy-duty ball bearing rollers rather than plain slides.
Can we have our own color or a stainless steel front?
+
Yes. Standard finishes are matte black and ivory white. Custom colors and an optional stainless steel front panel are both available on OEM orders; send us the finish reference at quote stage.
What happens when the POS is down?
+
The 3-position key lock still opens the drawer with the key, independent of the electronic release. Position two is online, so the printer triggers the solenoid as normal; position three locks the drawer fully when the lane closes.
Order the SN-CD330
in Black or Ivory.
We supply POS distributors and system integrators. Tell us the color, whether you want the stainless steel front panel, and the volume you are planning; we quote against it and build OEM orders to your finish.
